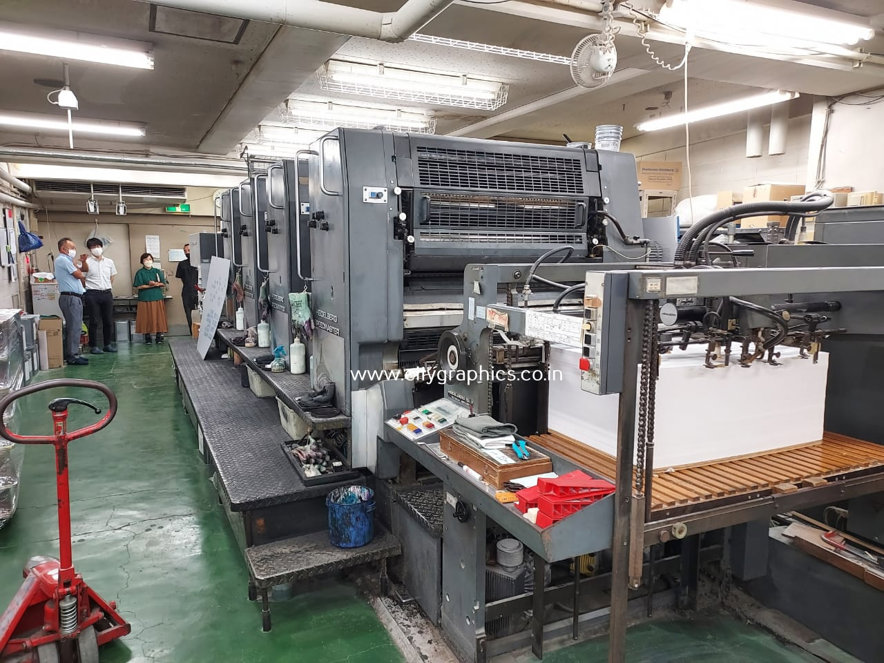

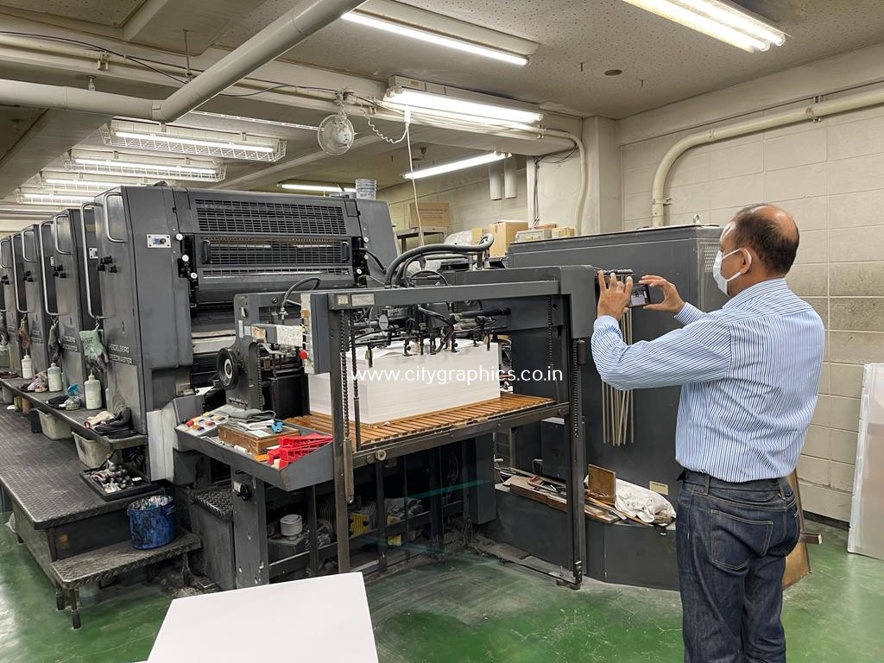

Heidelberg - Speedmaster SM 102 V

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 102 V has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 22,046 lbs (10,000 kg) and has a maximum printing speed of 15,000 sheets per hour.

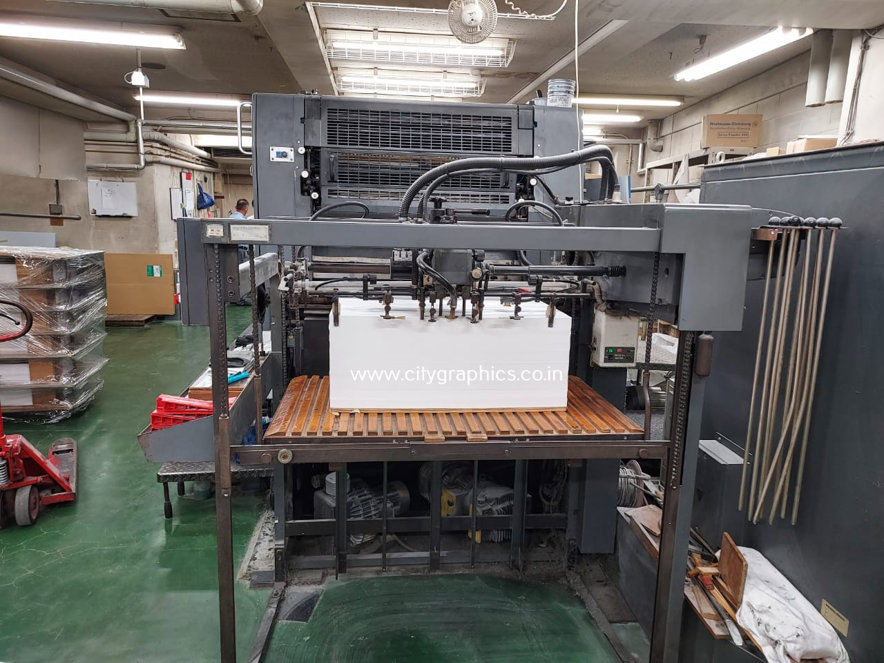

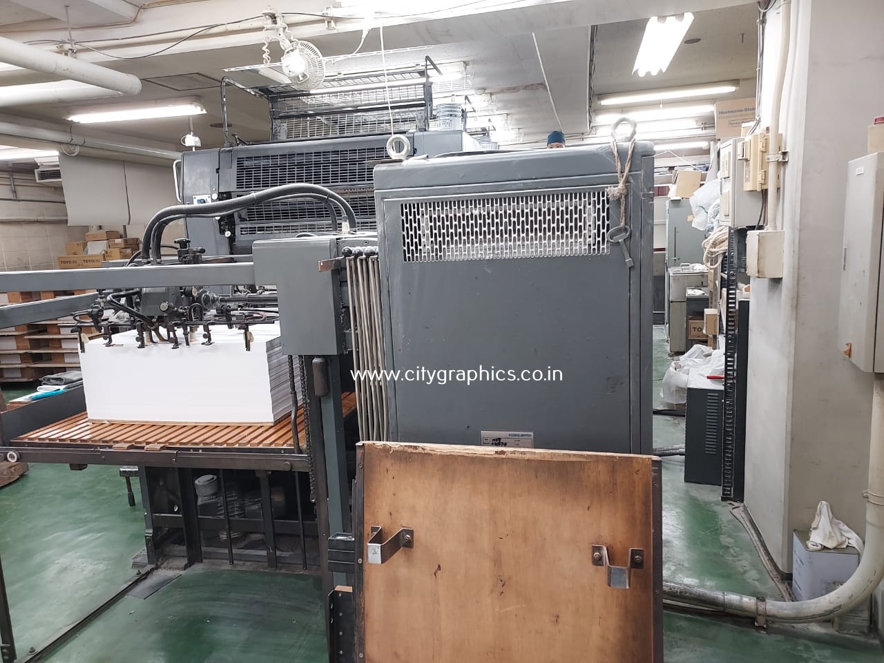

Paper Handling : The SM 102 V features a highly advanced paper handling system, including a feeder with a capacity of up to 5,000 sheets, an infeed system with a sheet size range of 8.27 x 11.69 in to 29.53 x 41.34 in, and a delivery system with a pile height of up to 5.9 ft (1.8 m). The machine also features a non-stop feeder and delivery system, allowing for continuous printing without interruption.

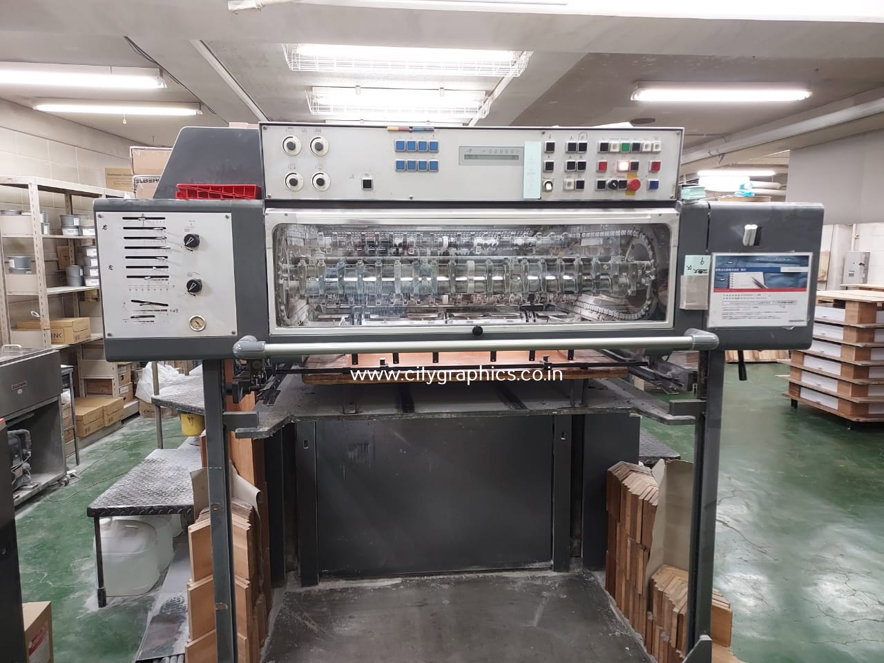

Printing Unit : The printing unit of the SM 102 V features a maximum printing format of 28.35 x 40.16 in (72 x 102 cm) and a minimum printing format of 8.27 x 11.69 in (21 x 30 cm). It has a printing speed of up to 15,000 sheets per hour and a maximum printing pressure of 4,000 kN. The machine uses a conventional offset printing process with a maximum of 10 printing units.

Ink System : The SM 102 V features a high-performance ink system with a maximum of 10 ink zones, allowing for precise ink metering and distribution. The machine uses a conventional offset ink system with a maximum ink flow rate of 12.3 gal/min (46.5 l/min).

Plate Cylinder : The plate cylinder of the SM 102 V has a diameter of 4.33 ft (1.32 m) and a circumference of 13.45 ft (4.1 m). It features a maximum plate size of 28.35 x 40.16 in (72 x 102 cm) and a minimum plate size of 8.27 x 11.69 in (21 x 30 cm). The plate cylinder is designed for precise plate registration and features a high-precision plate clamping system.
