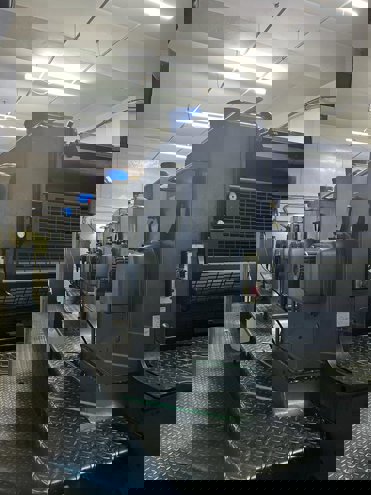

Heidelberg - Speedmaster SM 102 F

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 102 F has a length of 23.6 ft (7.2 m), a width of 10.5 ft (3.2 m), and a height of 7.5 ft (2.3 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 28.3 x 40.2 in (720 x 1020 mm).

Paper Handling : The SM 102 F features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. The machine is equipped with a dual-circuit sheet guiding system, ensuring precise sheet alignment and registration. The delivery system features a high-pile stacker with a capacity of up to 5,000 sheets.

Printing Unit : The Heidelberg Speedmaster SM 102 F has a maximum printing speed of 15,000 sheets per hour, with a resolution of 300 lpi (lines per inch). The machine uses a conventional offset printing process with a maximum printing area of 28.3 x 40.2 in (720 x 1020 mm).

Ink System : The SM 102 F uses a high-performance ink system with a maximum ink flow rate of 12 kg/h. The machine is equipped with a six-color ink train, with each unit featuring a 2.2 gal (8.3 L) ink tank capacity. The ink system also includes an advanced ink temperature control system, ensuring consistent ink viscosity and optimal print quality.

Plate Cylinder : The plate cylinder on the Heidelberg Speedmaster SM 102 F has a diameter of 4.3 in (110 mm) and a circumference of 13.4 in (340 mm). The plate cylinder is designed for high-speed printing and features a precision-ground surface, ensuring accurate plate registration and consistent print quality.
