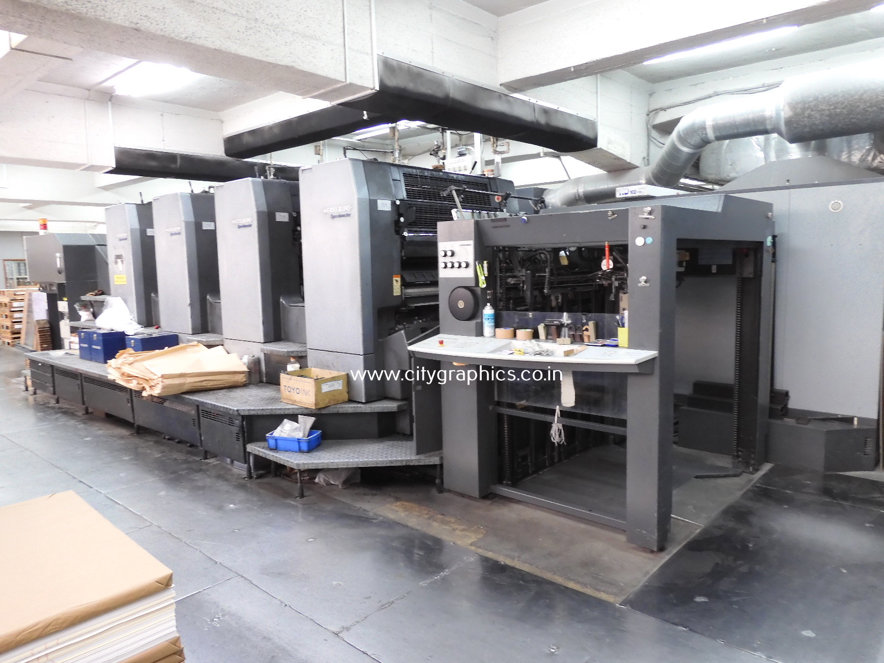

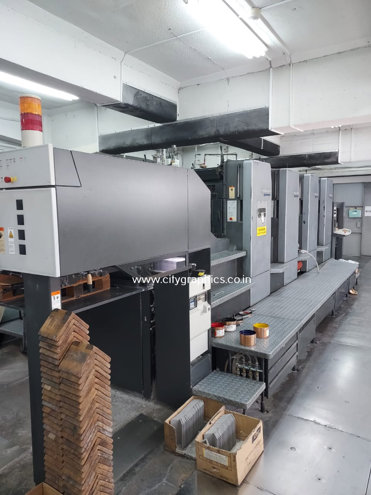

Heidelberg - Speedmaster SM 102-4-P

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Speedmaster SM 102-4-P has a length of 7,350 mm, a width of 2,350 mm, and a height of 2,150 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The press has a production speed of up to 15,000 sheets per hour.

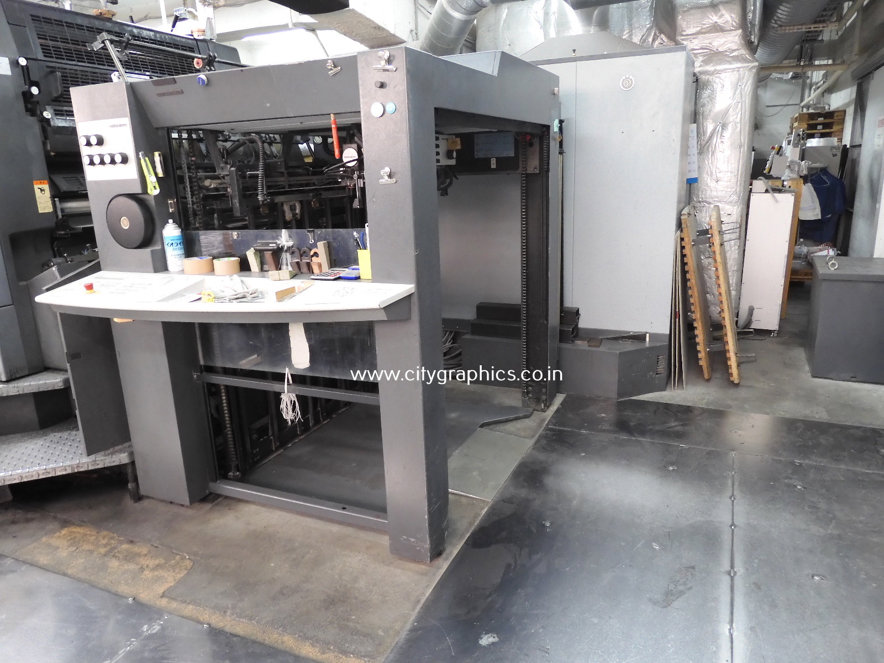

Paper Handling : The SM 102-4-P features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 720 x 1,020 mm. The press is equipped with a dual-circuit sheet guiding system and a high-precision sheet alignment system. The delivery section features a high-capacity stacker with a maximum pile height of 1,200 mm.

Printing Unit : The printing unit of the SM 102-4-P features a maximum printing speed of 15,000 sheets per hour and a maximum printing pressure of 400 kN. The press uses a three-cylinder arrangement with a transfer cylinder, an impression cylinder, and a plate cylinder. The printing unit is equipped with a high-precision registration system and a fast make-ready system.

Ink System : The SM 102-4-P uses a high-performance ink system with a maximum ink flow rate of 1,200 kg/h. The press features a four-roller inking system with a ink fountain, a ink train, and a ink distribution system. The ink system is equipped with a automatic ink supply system and a ink temperature control system.

Plate Cylinder : The plate cylinder of the SM 102-4-P has a diameter of 1,020 mm and a circumference of 3,200 mm. The plate cylinder is equipped with a high-precision plate clamping system and a fast plate changing system. The plate cylinder is designed for high-speed printing and features a maximum plate changing time of 2 minutes.
