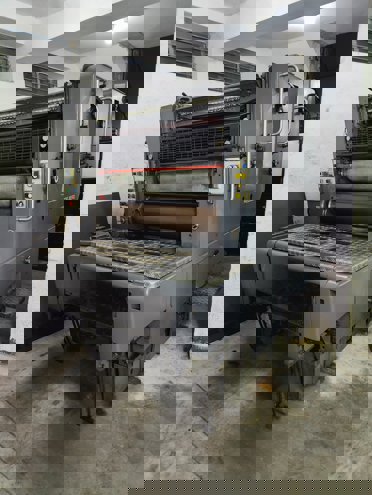

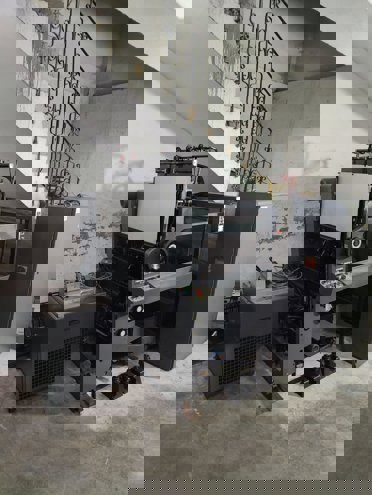

Heidelberg - SORS Z (S-Line)

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg SORS Z has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.55 ft (2.3 m). It weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size capacity of 20.47 x 29.53 in (520 x 750 mm).

Paper Handling : The SORS Z features a high-capacity paper handling system, including a feeder with a capacity of up to 10,000 sheets, and a delivery system with a capacity of up to 15,000 sheets. The machine is equipped with advanced sheet control and registration systems, ensuring precise sheet alignment and minimal waste.

Printing Unit : The printing unit of the SORS Z is equipped with a maximum print speed of up to 18,000 sheets per hour, and a print resolution of 300 lpi. It utilizes Heidelberg's advanced Gapless Transfer Technology, which enables precise color control and reduced waste. The machine is available with a range of printing units, including 4-color, 5-color, and 6-color configurations.

Ink System : The SORS Z features a high-performance ink system, utilizing a combination of oil-based and UV inks. The machine has an ink capacity of up to 20 kg per color, and is equipped with an advanced ink supply system, ensuring consistent ink flow and precise color control.

Plate Cylinder : The plate cylinder of the SORS Z has a diameter of 1.57 in (40 mm) and is designed for high-speed printing applications. It features a advanced plate clamping system, ensuring precise plate registration and minimal plate wear.
