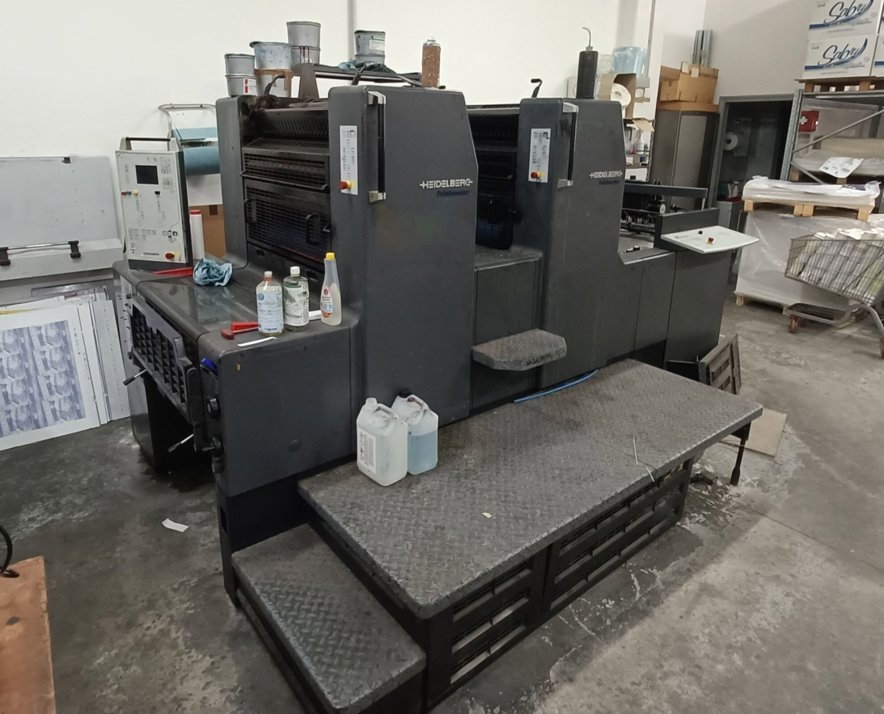

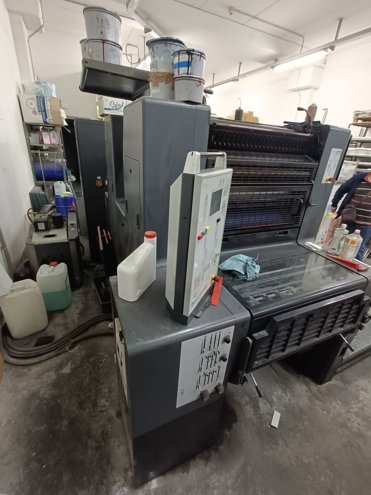

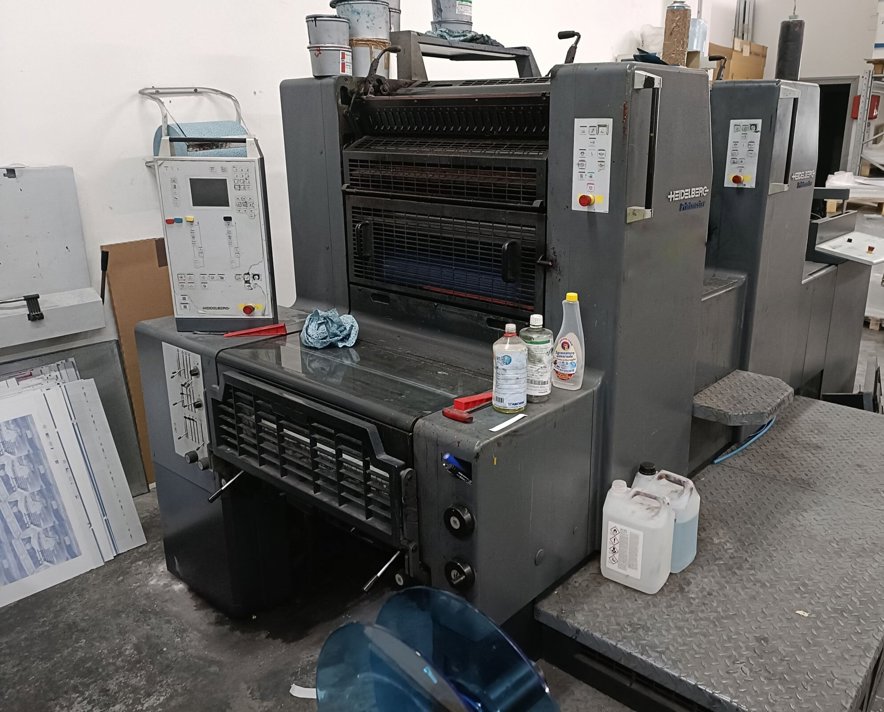

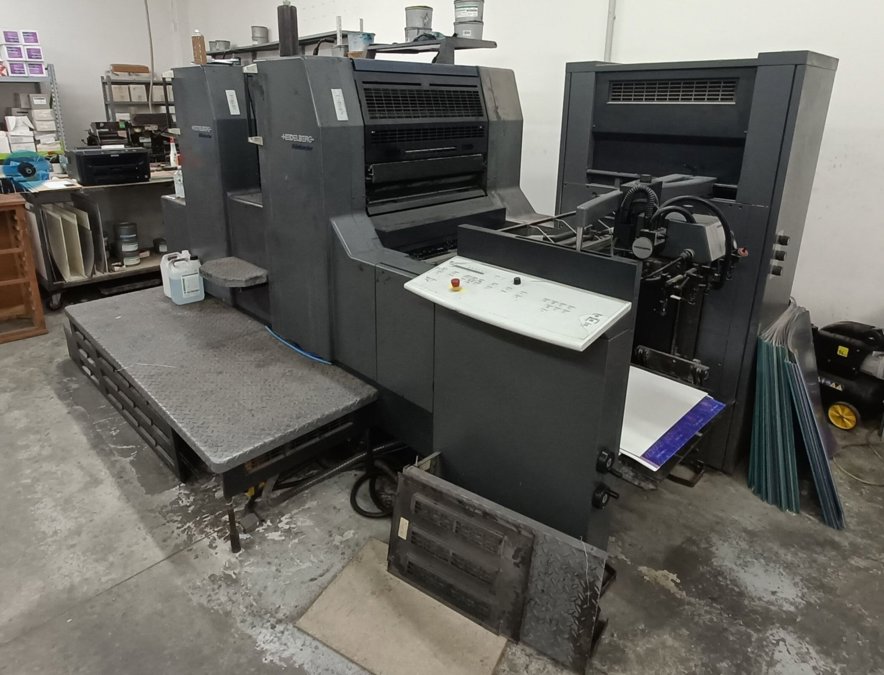

Heidelberg - Printmaster PM 74-2

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Printmaster PM 74-2 has a length of 6,350 mm, a width of 2,350 mm, and a height of 1,900 mm. It weighs approximately 6,500 kg and has a maximum sheet size of 740 x 1,040 mm. The press has a capacity of up to 15,000 sheets per hour.

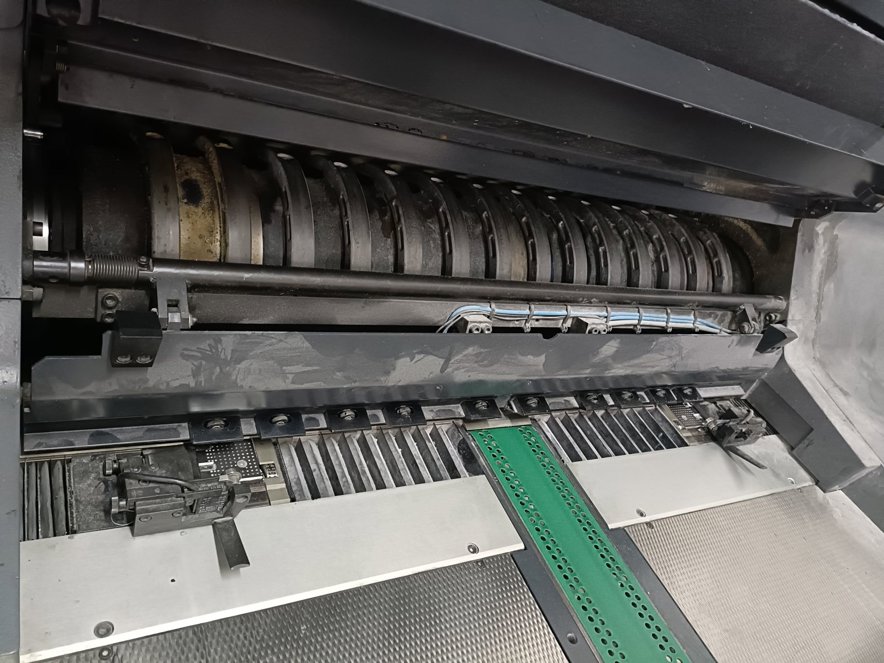

Paper Handling : The Printmaster PM 74-2 features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet thickness range of 0.04 to 0.6 mm. The press is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system features a high-pile stacker with a maximum pile height of 1,500 mm.

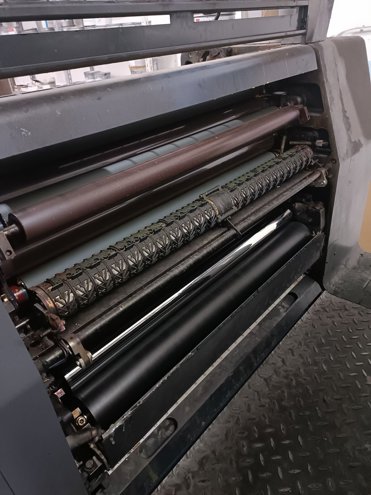

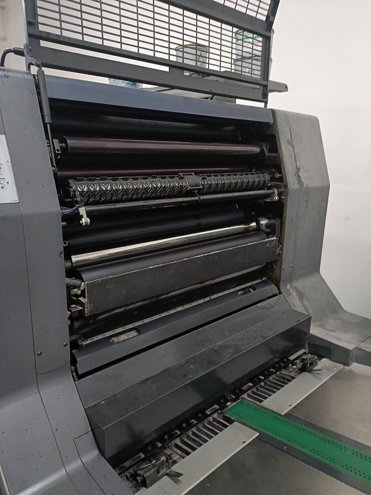

Printing Unit : The Printmaster PM 74-2 has a maximum print speed of 15,000 sheets per hour and a print resolution of 400 lpi. The press uses a conventional offset printing process with a maximum printing pressure of 400 kN. The printing unit features a quick-change inking system and a high-precision plate cylinder.

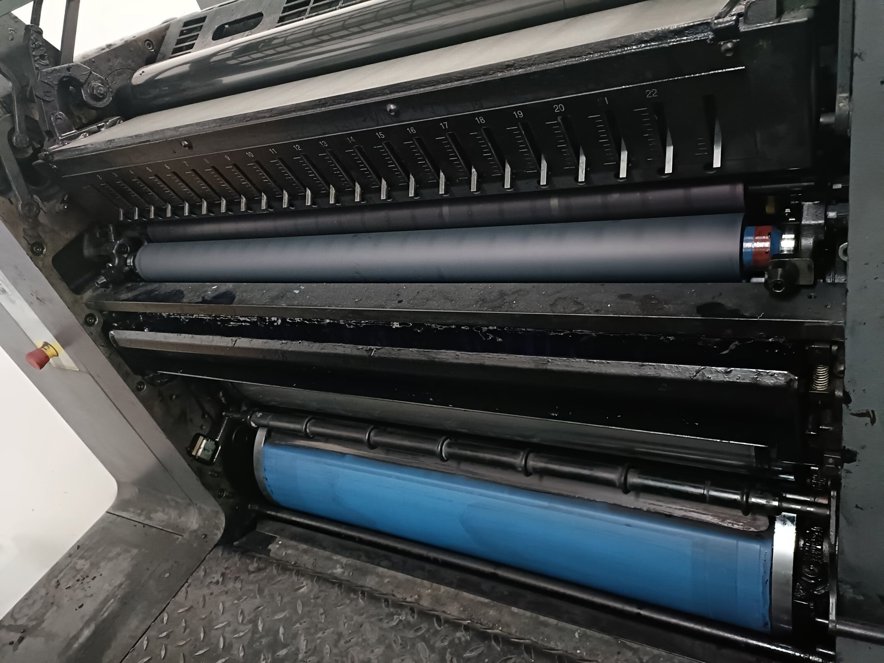

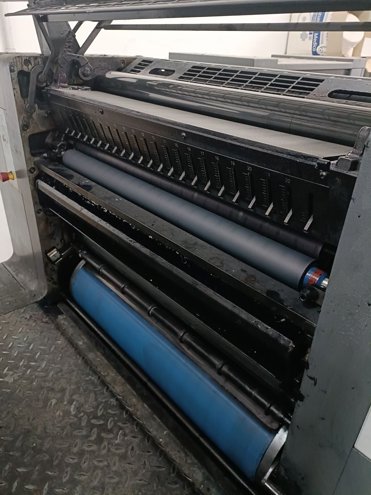

Ink System : The Printmaster PM 74-2 uses a high-performance ink system with a maximum ink flow rate of 1,200 ml/min. The press features a fully automatic ink supply system and an ink temperature control system. The ink system is designed for use with conventional offset inks.

Plate Cylinder : The Printmaster PM 74-2 features a high-precision plate cylinder with a diameter of 740 mm and a circumference of 2,320 mm. The plate cylinder is designed for use with conventional offset printing plates and features a quick-change plate system for fast job changes.
