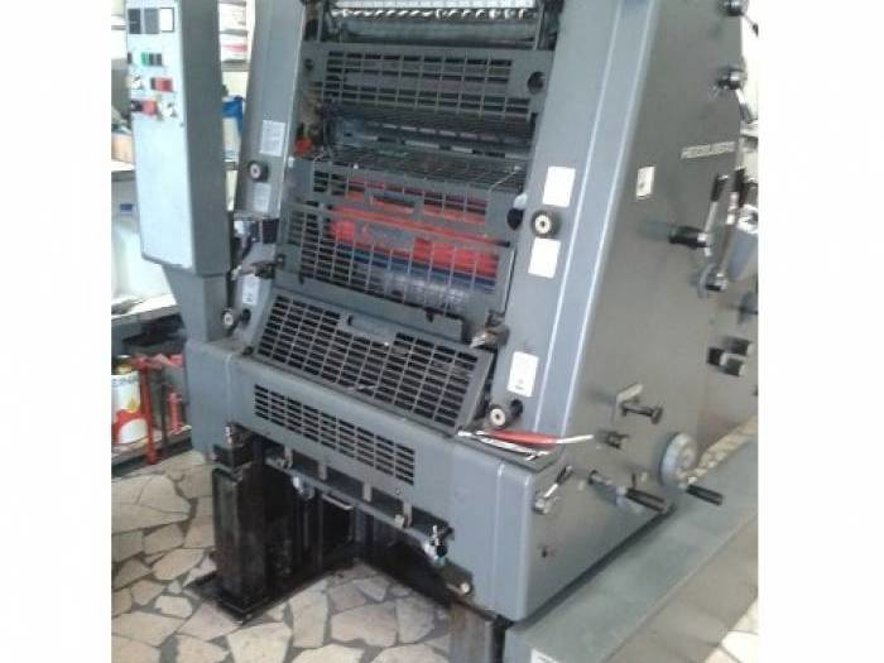

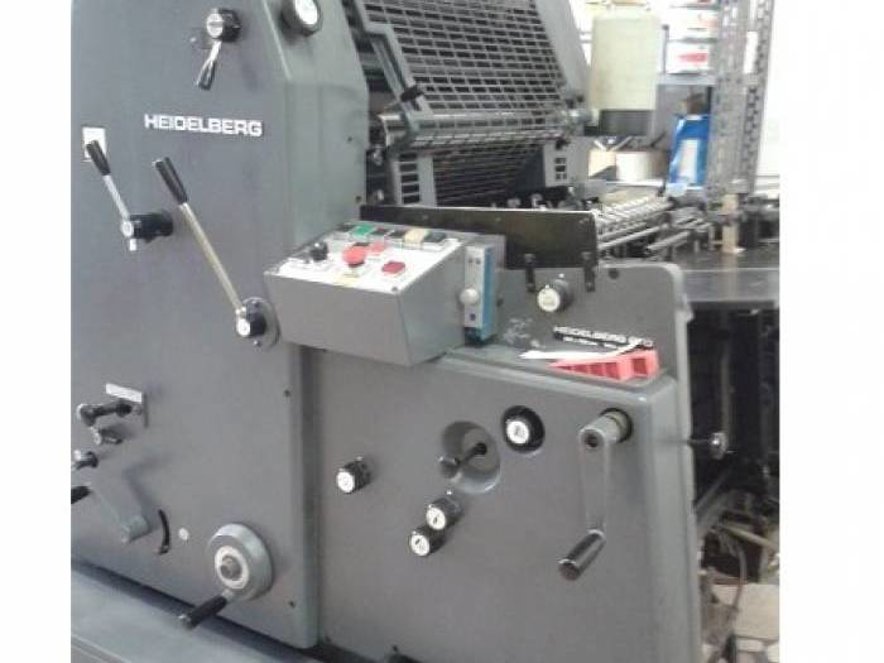

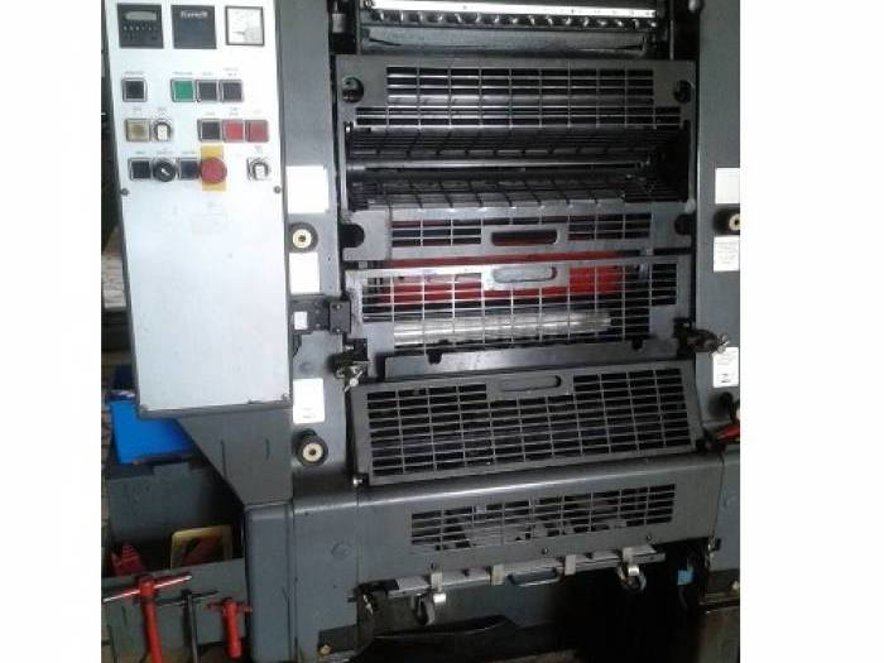

Heidelberg - GTO 52 N+P

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg GTO 52 N+P has a machine length of 5,350 mm, a machine width of 1,550 mm, and a machine height of 1,800 mm. It weighs approximately 4,500 kg and has a maximum sheet size of 520 x 740 mm.

Paper Handling : The GTO 52 N+P features a high-capacity feeder with a maximum pile height of 1,050 mm, allowing for efficient paper handling and reduced downtime. The machine is equipped with a dual-circuit sheet guiding system, ensuring precise sheet registration and alignment. The output stacker has a capacity of up to 1,500 sheets, with an optional extended stacker available for higher production volumes.

Printing Unit : The GTO 52 N+P printing unit is equipped with a maximum printing speed of 15,000 sheets per hour, with a resolution of 400 lpi. The machine utilizes Heidelberg's renowned Alcolor dampening system, ensuring consistent and high-quality print results. The printing unit features a maximum impression cylinder diameter of 520 mm and a transfer cylinder diameter of 440 mm.

Ink System : The GTO 52 N+P uses a conventional dampening system with a fountain solution tank capacity of 120 liters. The machine is equipped with a six-roller inking system, with a maximum ink transfer rate of 1,200 ml/min. The ink system features an optional Anilox roller for improved ink transfer and reduced ink consumption.

Plate Cylinder : The plate cylinder on the GTO 52 N+P has a diameter of 440 mm and is designed for precise plate registration and alignment. The machine features a plate changing system with automatic plate clamping and a maximum plate size of 520 x 740 mm.
