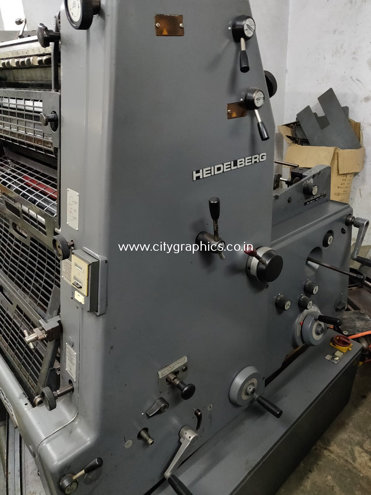

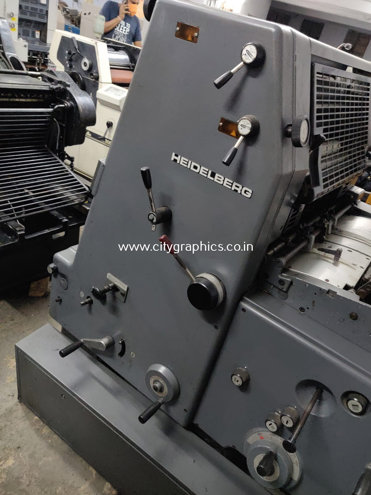

Heidelberg - GTO 52

Key Technical Aspects:

Dimensions and Specifications :The Heidelberg GTO 52 has a length of 4,450 mm, a width of 1,450 mm, and a height of 1,700 mm, with a weight of approximately 4,500 kg. The press has a maximum sheet size of 520 x 360 mm and a minimum sheet size of 210 x 150 mm, with a print speed of up to 10,000 sheets per hour.

Paper Handling :The paper handling system of the Heidelberg GTO 52 features a sheet feeder with a capacity of up to 3,000 sheets, and a delivery system with a pile height of up to 1,200 mm. The press is also equipped with an automatic sheet alignment system and a sheet ejection system.

Printing Unit :The printing unit of the Heidelberg GTO 52 features two printing units, each with a maximum print speed of 10,000 sheets per hour. The press uses a conventional offset printing process with a resolution of up to 400 lines per inch, and is equipped with a dampening system and an inking system.

Ink System :The ink system of the Heidelberg GTO 52 uses a conventional oil-based ink, with an ink fountain volume of up to 20 kg. The press is also equipped with an automatic ink temperature control system and an ink agitator system.

Plate Cylinder :The plate cylinder of the Heidelberg GTO 52 has a diameter of 350 mm and a length of 520 mm, with a plate thickness of up to 2.5 mm. The press is equipped with an automatic plate changing system, which allows for quick and easy plate changes.
