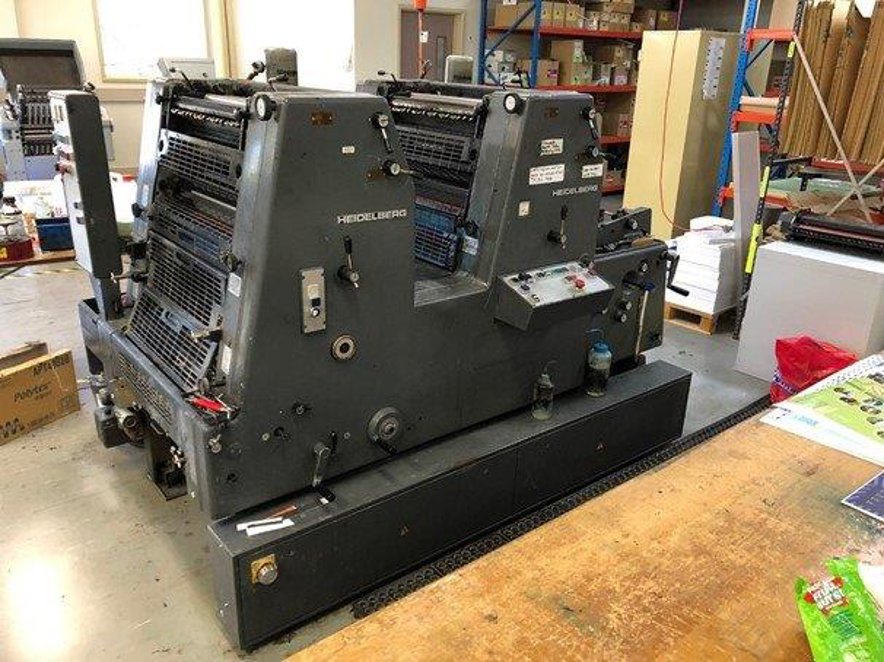

Heidelberg - GTO 52 2PNP

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg GTO 52 2PNP measures 5,500 mm in length, 1,800 mm in width, and 1,900 mm in height, with a weight of approximately 4,500 kg. The press has a maximum sheet size of 520 x 740 mm and a minimum sheet size of 350 x 500 mm, with a printing speed of up to 10,000 sheets per hour.

Paper Handling : The GTO 52 2PNP features a feeder with a capacity of 3,000 sheets, an intermediate stacker with a capacity of 1,500 sheets, and a delivery with a capacity of 2,000 sheets. The press is equipped with a suction tape feeder and a sheet ejection system, ensuring smooth and efficient paper handling.

Printing Unit : The printing unit of the GTO 52 2PNP is equipped with two printing couples, each with a maximum printing speed of 10,000 sheets per hour. The press uses a conventional offset printing process with a maximum printing pressure of 400 kN. The printing unit features a plate cylinder with a diameter of 520 mm and a rubber cylinder with a diameter of 740 mm.

Ink System : The GTO 52 2PNP uses a conventional ink system with a fountain solution and a damping system. The ink system features two ink trains, each with a capacity of 20 kg, and a fountain solution tank with a capacity of 120 liters.

Plate Cylinder : The plate cylinder of the GTO 52 2PNP has a diameter of 520 mm and a length of 740 mm. The plate cylinder is designed for easy plate changing and features a pneumatic clamping system, ensuring precise plate registration and high-quality printing results.
