Heidelberg - CD 74-5 LX-C

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg CD 74-5 LX-C has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). The machine weighs approximately 22,046 lbs (10,000 kg) and has a maximum sheet size capacity of 20.47 x 29.53 in (520 x 750 mm).

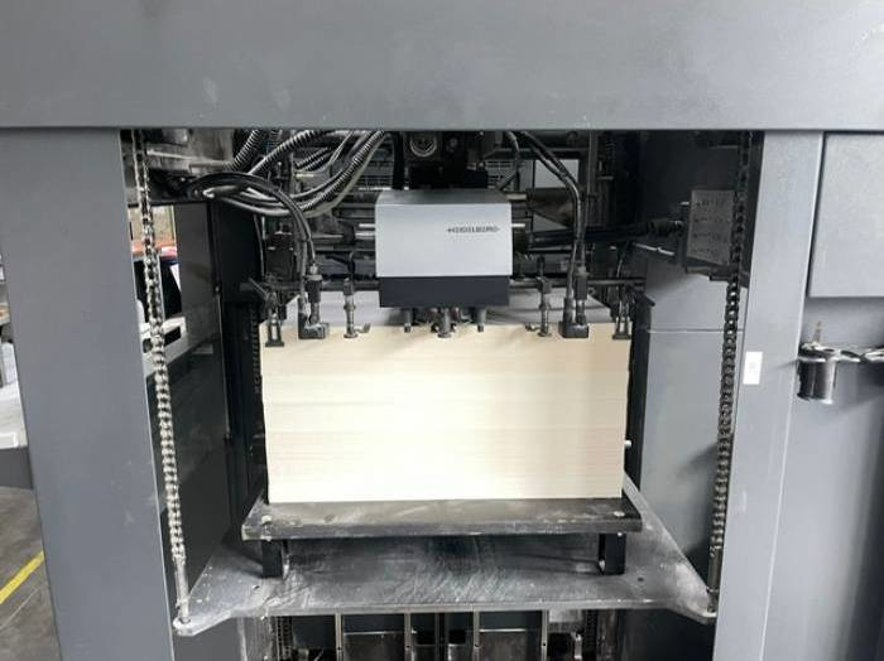

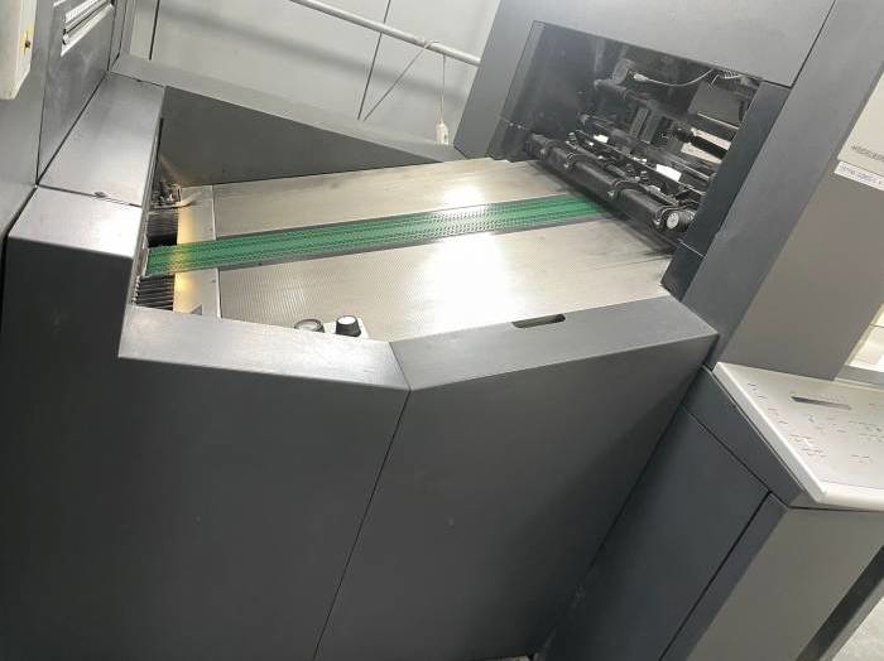

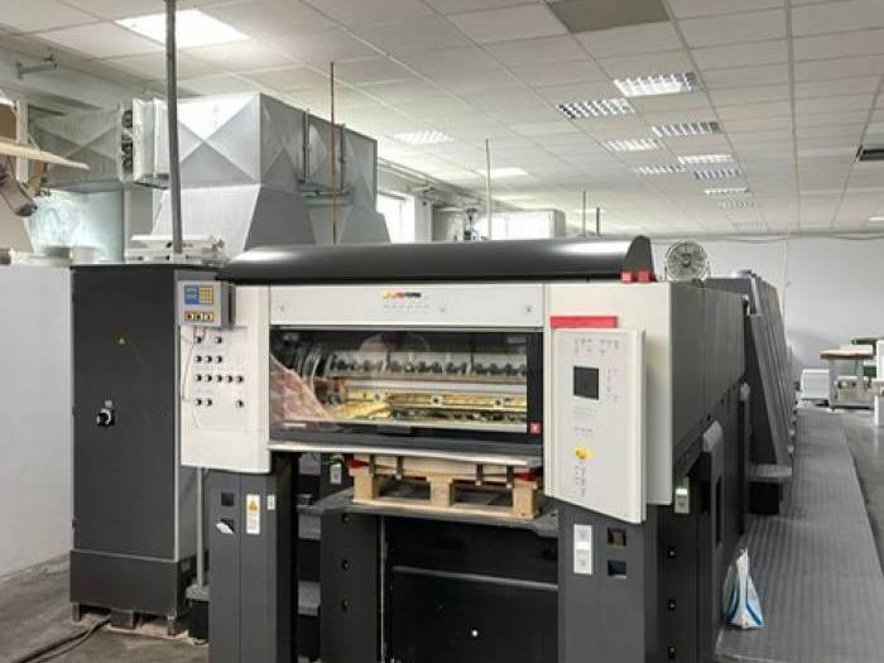

Paper Handling : The CD 74-5 LX-C features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet size range of 8.27 x 11.69 in (210 x 297 mm) to 20.47 x 29.53 in (520 x 750 mm). The machine is equipped with a dual-circuit sheet guiding system and a high-speed delivery with a maximum pile height of 31.5 in (800 mm).

Printing Unit : The CD 74-5 LX-C has a maximum print speed of 15,000 sheets per hour and a print resolution of 254 lpi (100 l/cm). The machine utilizes Heidelberg's advanced Gapless Transfer Technology and features a 5-color printing unit with a maximum ink transfer of 1.2 mm.

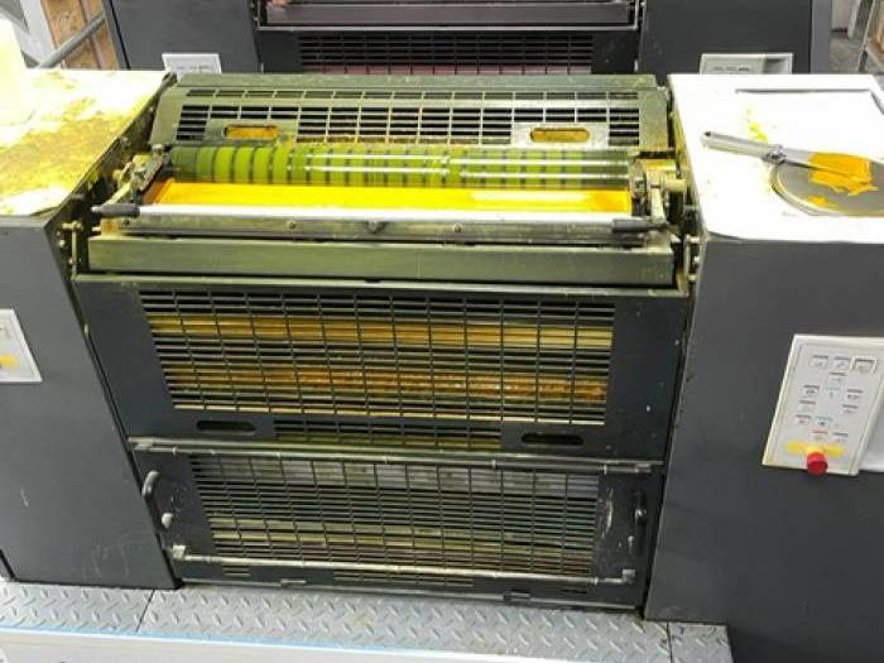

Ink System : The CD 74-5 LX-C uses a high-performance, alcohol-free dampening system with a maximum ink capacity of 11.35 gal (43 L) per color. The machine features an automatic ink supply system and an ink temperature control system for optimal print quality.

Plate Cylinder : The plate cylinder has a diameter of 4.33 in (110 mm) and a circumference of 13.58 in (345 mm). The machine features a high-precision plate clamping system and an automatic plate changing system for efficient job changes.
