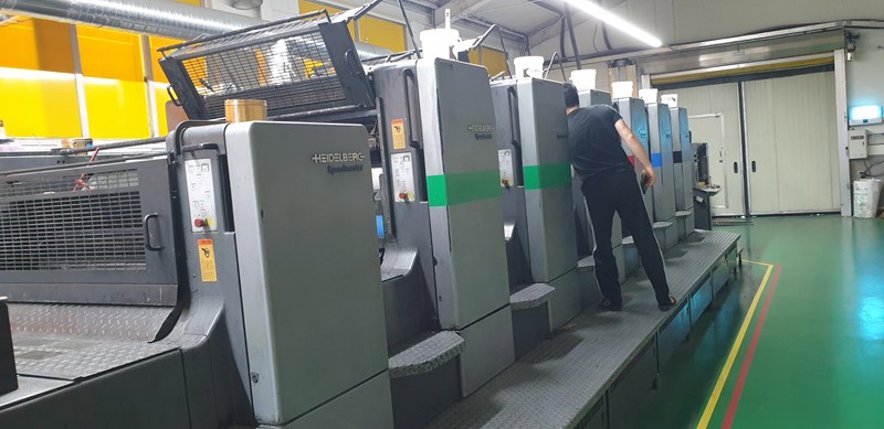

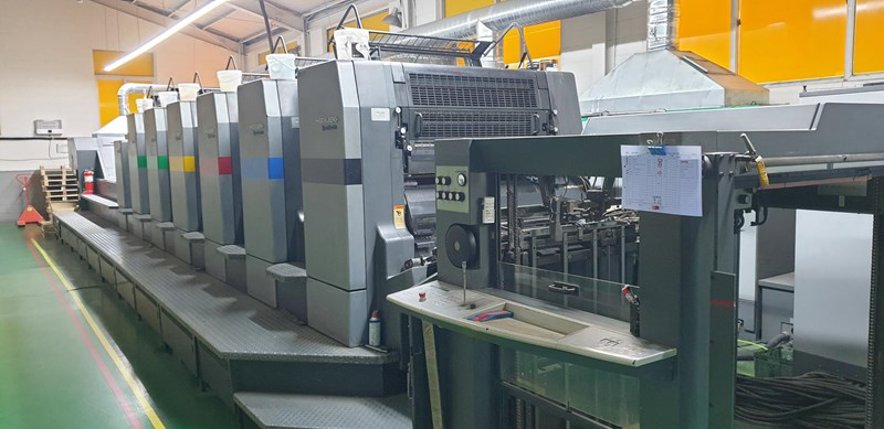

Heidelberg - CD 102

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg CD 102 has a length of 6,350 mm, a width of 2,350 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The machine has a printing speed of up to 15,000 sheets per hour.

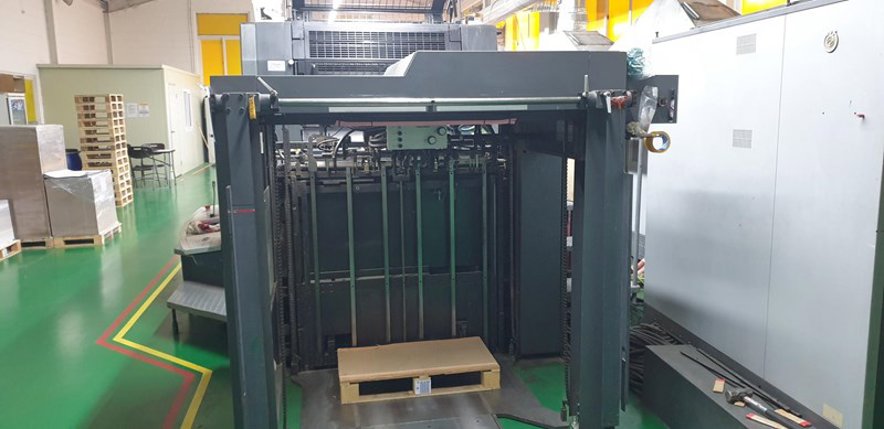

Paper Handling : The CD 102 features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 720 x 1,020 mm. The machine is equipped with a double-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system features a high-pile stacker with a maximum pile height of 1,500 mm.

Printing Unit : The CD 102 has a maximum printing speed of 15,000 sheets per hour and a printing resolution of 300 lpi. The machine uses a conventional offset printing process with a maximum printing area of 720 x 1,020 mm. The printing unit features a high-precision inking system with a 12-roller inking train and a dampening system with a 10-roller train.

Ink System : The CD 102 uses a conventional offset ink system with a maximum ink capacity of 20 kg per color. The machine features an automatic ink supply system and an ink temperature control system to ensure consistent ink viscosity.

Plate Cylinder : The CD 102 features a plate cylinder with a diameter of 1,020 mm and a circumference of 3,200 mm. The plate cylinder is equipped with a automatic plate changing system and a plate cleaning system to ensure efficient and high-quality printing.
