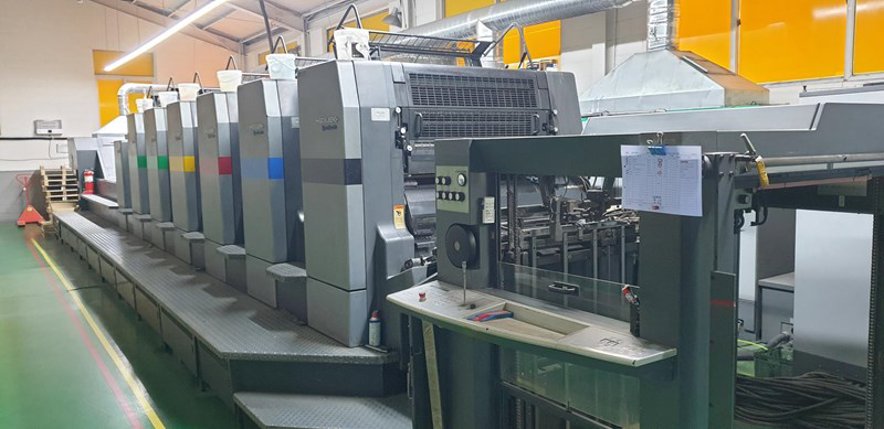

Heidelberg - CD 102-6+L

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg CD 102-6+L has a length of 23.62 ft (7.2 m), a width of 6.56 ft (2 m), and a height of 7.38 ft (2.25 m). It weighs approximately 22,046 lbs (10,000 kg) and has a maximum sheet size of 28.35 x 40.16 in (720 x 1020 mm). The machine's capacity is up to 15,000 sheets per hour.

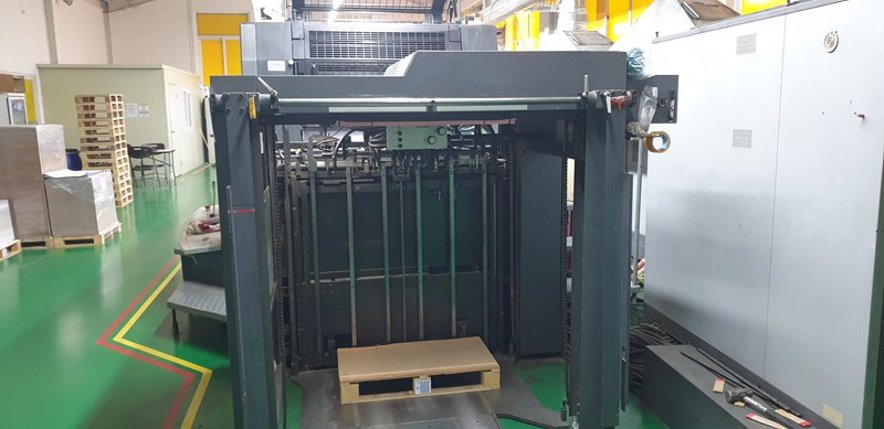

Paper Handling : The CD 102-6+L features a high-capacity feeder with a maximum pile height of 25.6 in (650 mm) and a sheet thickness range of 0.06-0.4 mm. The machine is equipped with a dual-sheet detection system and an anti-static device to prevent sheet sticking. The delivery system has a maximum pile height of 25.6 in (650 mm) and is equipped with a jogger and a sheet alignment system.

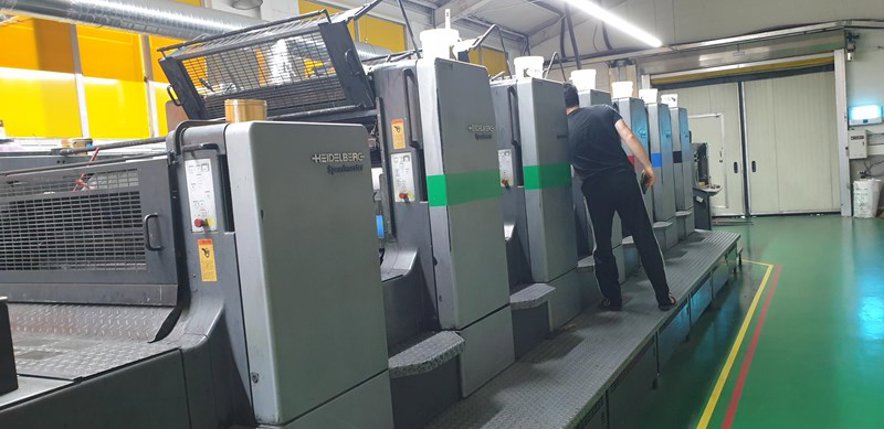

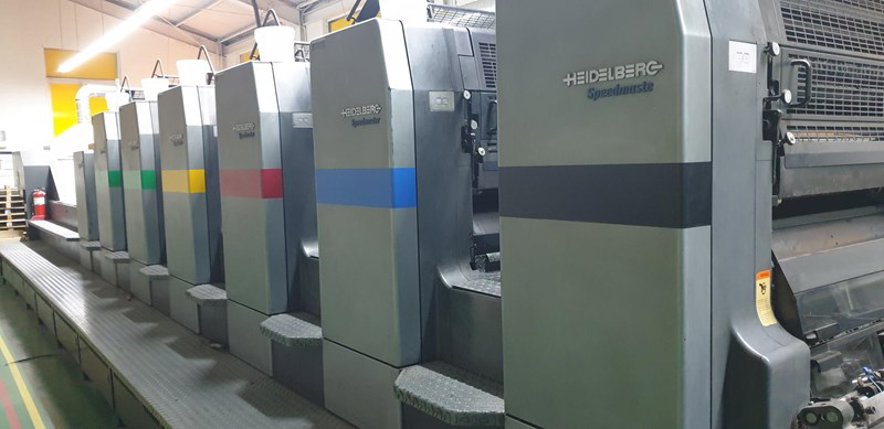

Printing Unit : The CD 102-6+L has six printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine uses Heidelberg's renowned Gapless Transfer Technology, which ensures precise color registration and minimizes waste. The printing units are equipped with Variodamp dampening systems and have a maximum printing area of 28.35 x 40.16 in (720 x 1020 mm).

Ink System : The CD 102-6+L uses a high-performance ink system with a maximum ink flow rate of 120 kg/h. The machine is equipped with a six-roller inking system and a Variodamp dampening system, which ensures consistent ink transfer and precise color control.

Plate Cylinder : The plate cylinder has a diameter of 4.33 in (110 mm) and a circumference of 13.58 in (345 mm). The cylinder is equipped with a plate clamping system and a precision-registered plate changing system, which enables fast and efficient plate changes.
