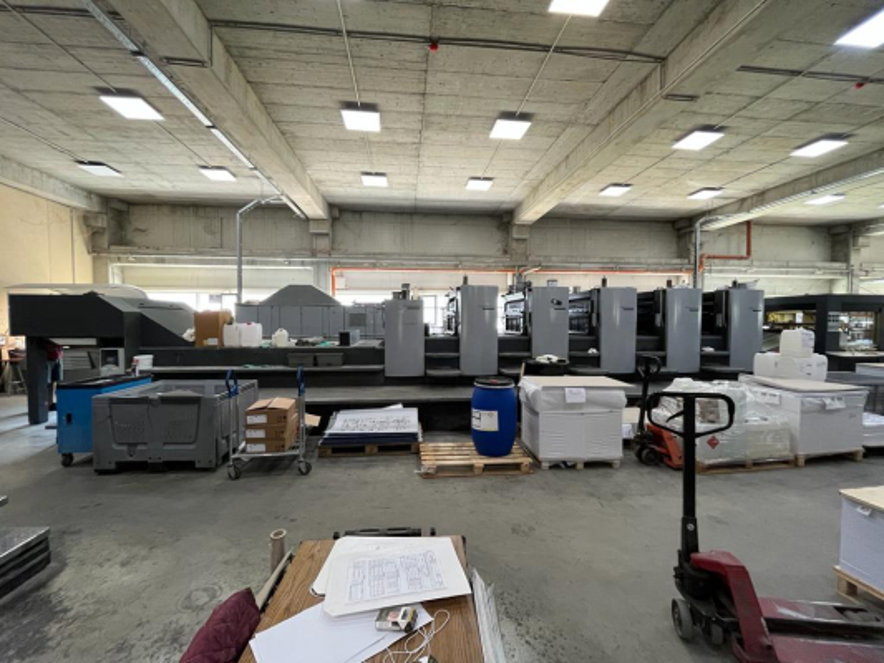

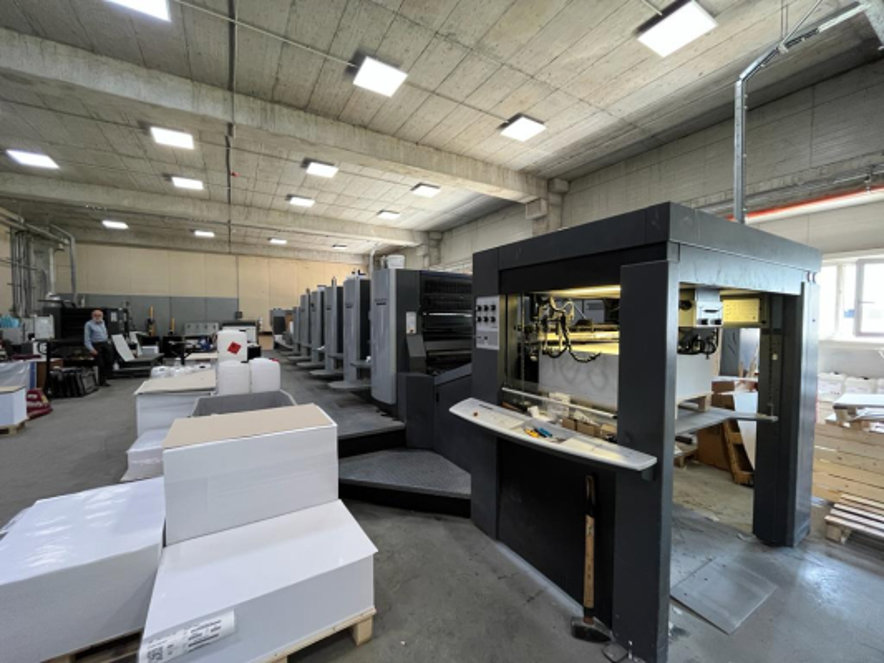

Heidelberg - CD 102-5+LX

Sheet Fed / Offset Heidelberg CD 102-5+LX
Sheet Fed / Offset Heidelberg CD 102-5+LX
Sheet Fed / Offset Heidelberg CD 102-5+LX
Sheet Fed / Offset Heidelberg CD 102-5+LX
Sheet Fed / Offset Heidelberg CD 102-5+LX

Machine Specification

FeaturesValue
Number of colours5
Max sheet size28.3 x 40.5 inch | 72 x 103 cm

Machine Description

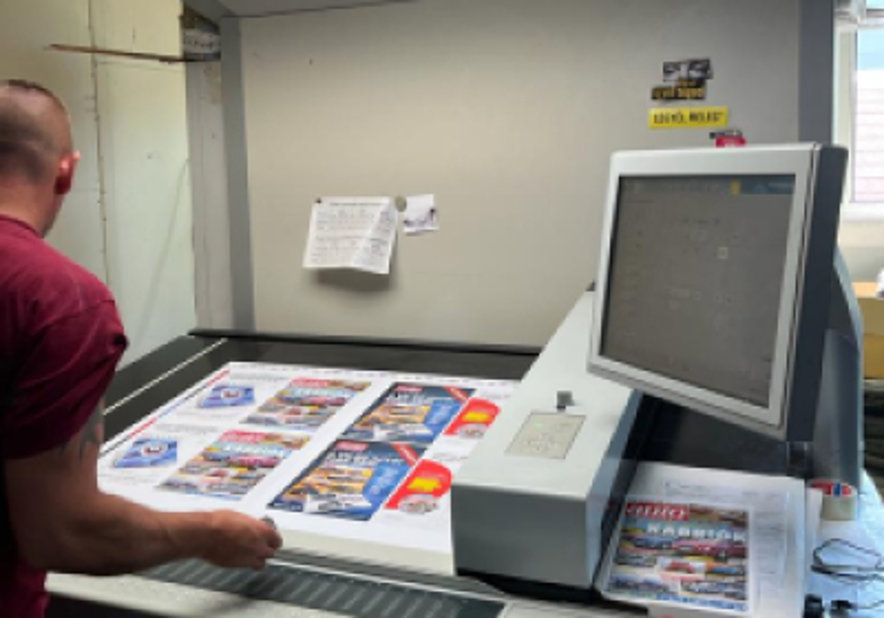

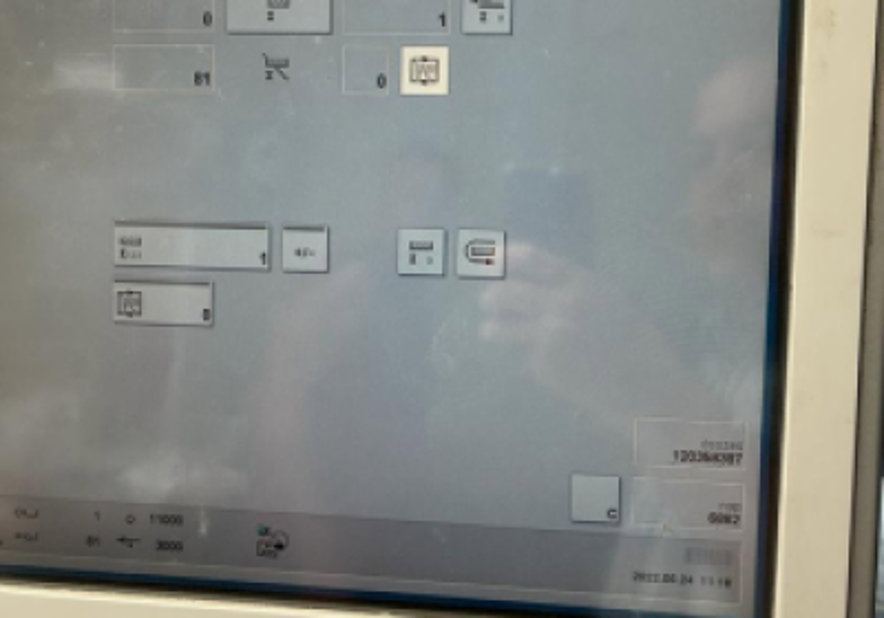

CP 2000 Press Center, Axis control Autoplate, Preset Plus feeder, Alcolor dampening, Cooling and recirculation device, Frontlay control, Sidelay control, Blanket wash, Roller wash, Impression cylinder wash, IR dryer, Powderspray. Etc

ModelHeidelberg-CD 102-5+LX
ManufacturerHeidelberg
Year2013
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationNetherlands

About Heidelberg - CD 102-5+LX

The Heidelberg CD 102-5+LX is a high-performance, commercial-grade offset printing press designed for medium to large-sized print shops and commercial printers. This machine is categorized as a sheet-fed offset press, primarily used for printing high-quality commercial materials such as brochures, catalogs, and packaging materials. Key features of the CD 102-5+LX include its advanced printing technology, high-speed production capabilities, and precise registration control. The benefits of this machine include increased productivity, reduced waste, and exceptional print quality. Typical applications of the CD 102-5+LX include commercial printing, packaging, and label printing.

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg CD 102-5+LX has a machine length of 23.62 ft (7.2 m), a machine width of 6.56 ft (2 m), and a machine height of 7.38 ft (2.25 m). The machine weighs approximately 44,000 lbs (20,000 kg) and has a maximum sheet size of 28.35 x 40.16 in (720 x 1020 mm).

Paper Handling : The CD 102-5+LX features a high-capacity feeder with a maximum pile height of 31.5 in (800 mm) and a sheet thickness range of 0.06-0.6 mm. The machine is equipped with a dual-circuit sheet guiding system and a high-precision sheet alignment system. The output capacity is up to 15,000 sheets per hour.

Printing Unit : The CD 102-5+LX has five printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine features Heidelberg's proprietary Gapless Transfer Technology, which enables precise registration and reduced waste. The printing unit resolution is 2540 dpi, and the machine uses a three-cylinder arrangement with a transfer cylinder diameter of 4.33 in (110 mm).

Ink System : The CD 102-5+LX uses a high-precision, alcohol-reduced dampening system with a maximum ink flow rate of 120 ml/min. The machine features a single-ink train system with a maximum ink volume of 20 liters. The ink system is equipped with an automatic ink supply and a wash-up device for efficient ink management.

Plate Cylinder : The plate cylinder has a diameter of 4.33 in (110 mm) and a plate thickness range of 0.012-0.032 in (0.3-0.8 mm). The plate cylinder is equipped with a pneumatic clamping system and a precision plate registration system, ensuring accurate plate positioning and reduced waste.
