Machine Specification
| Features | Value |
|---|---|
| Number of colours | 4 |
Machine Description
CP 2000 console touch screen, axial, circumferential and diagonal register remote control, ink ductors rotation control, job memorization.
CP 2000 MasterLevel.
Preset Plus Feeder.
Head feeder 3 more suctions for paper transport.
Front sensor on flap of the feeder.
Slow down : system to slow the sheet down then 65% on feeder.
Air transfer System Venturi.
Roller wash-up device controlled by CP 2000.
Modular blanket cylinder washing device by CP 2000.
Modular impression cylinder washing device by CP 2000.
Autoplate.
Alcolor damping.
Hydrostar Technotrans Beta.d 40 L cooling and circulation + automix.
Preset Plus Delivery : a lot of preset functions and memorization, aereodinamic grippers system, slow down system by CP2000, panel in delivery.
ScrollStar : Atlas Copco compressor.
AirStar : central air box air cooled.
15.000 speed/h
| Model | Heidelberg-CD 102-4 |
|---|---|
| Manufacturer | Heidelberg |
| Year | 2005 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Italy |
Special Features
- Alcolor Dampening
- Autoplate
About Heidelberg - CD 102-4

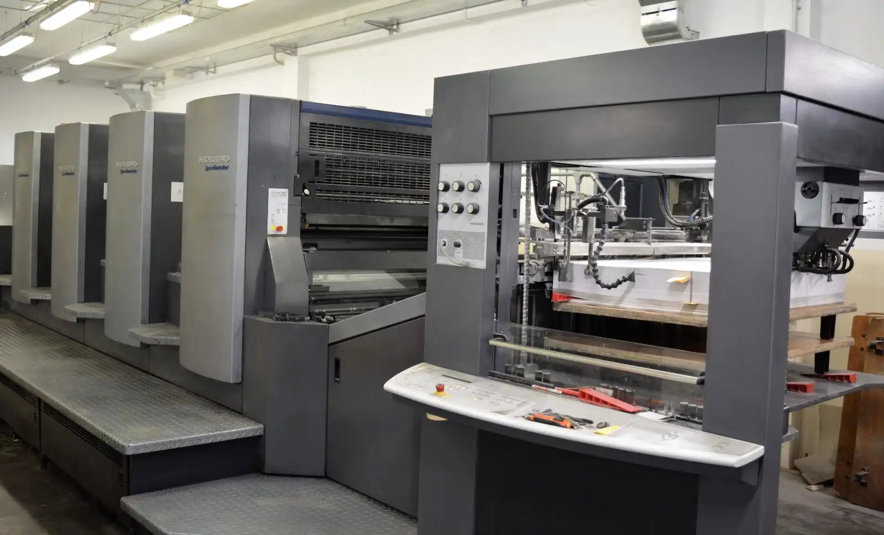

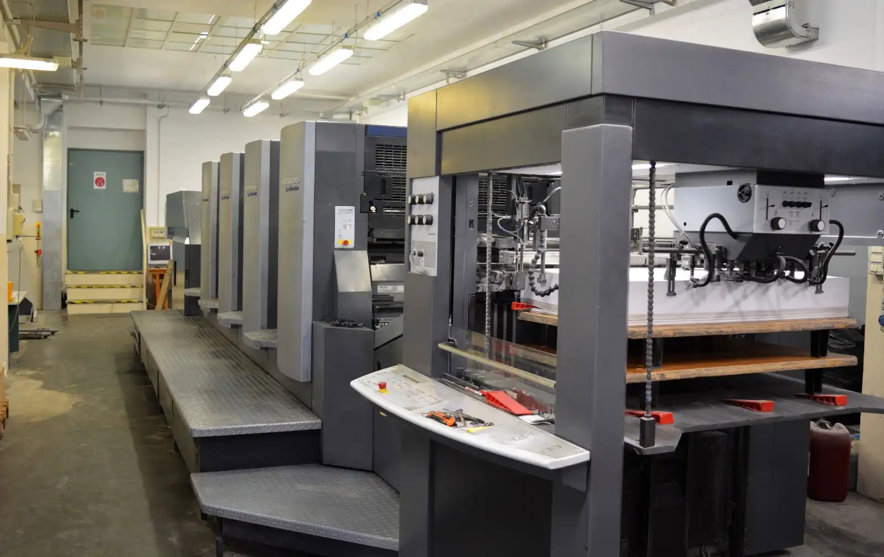

The Heidelberg CD 102-4 is a high-performance sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is part of the CD series, known for its exceptional print quality, reliability, and versatility. The CD 102-4 is ideal for printing a wide range of materials, including business cards, brochures, flyers, and packaging materials. Its key features include high-speed printing, precise registration, and advanced automation, making it an excellent choice for large-scale printing operations.
Key Technical Aspects:
Dimensions and Specifications : The Heidelberg CD 102-4 has a length of 7,350 mm, a width of 2,350 mm, and a height of 2,150 mm. It weighs approximately 12,000 kg and has a maximum sheet size of 720 x 1,020 mm. The machine's capacity is up to 15,000 sheets per hour.
Paper Handling : The CD 102-4 features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 720 x 1,020 mm. The machine is equipped with a dual-delivery system, allowing for simultaneous printing and delivery of sheets.
Printing Unit : The printing unit of the CD 102-4 is equipped with four printing units, each with a maximum printing speed of 15,000 sheets per hour. The machine features a maximum printing resolution of 300 lpi and uses the Heidelberg's proprietary Alcolor technology for precise color registration.
Ink System : The CD 102-4 uses a high-precision ink system with a maximum ink flow rate of 1,200 ml/min. The machine is equipped with a four-color ink system, with each ink fountain having a capacity of 20 kg.
Plate Cylinder : The plate cylinder of the CD 102-4 has a diameter of 1,020 mm and a circumference of 3,200 mm. The machine features a semi-automatic plate changing system, allowing for quick and easy plate changes.
