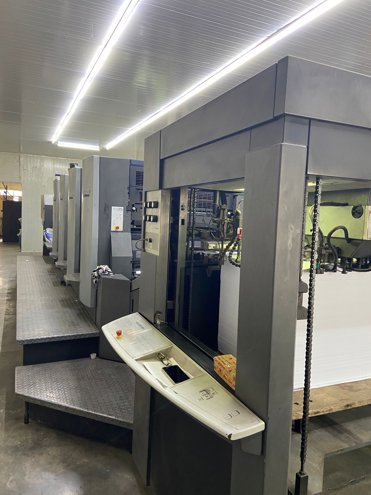

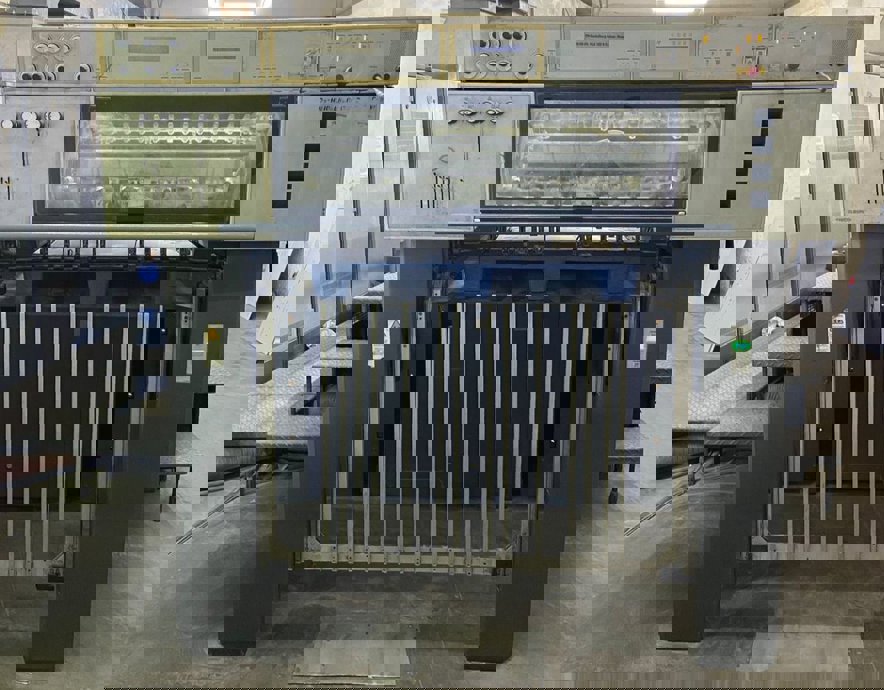

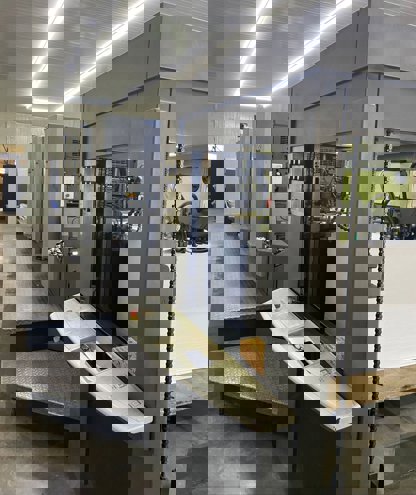

Heidelberg - CD 102-4

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg CD 102-4 has a length of 6,350 mm, a width of 2,350 mm, and a height of 2,150 mm. It weighs approximately 12,000 kg and has a maximum sheet size capacity of 720 x 1,020 mm.

Paper Handling : The CD 102-4 features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 720 x 1,020 mm. The press is equipped with a dual-delivery system, allowing for simultaneous delivery of printed sheets to two separate stackers.

Printing Unit : The CD 102-4 has a maximum printing speed of 15,000 sheets per hour and a printing resolution of 400 lpi. It utilizes Heidelberg's advanced Gapless Transfer Technology, which enables precise registration and consistent print quality. The press is equipped with four printing units, each with a maximum printing area of 720 x 1,020 mm.

Ink System : The CD 102-4 features a high-performance ink system with a maximum ink flow rate of 12 kg/h. The press uses a combination of oil-based and UV inks, with a total ink capacity of 240 kg. The ink system is equipped with an advanced ink metering and control system, ensuring precise ink application and reduced waste.

Plate Cylinder : The CD 102-4 features a high-precision plate cylinder with a diameter of 1,020 mm and a circumference of 3,200 mm. The plate cylinder is designed for precise plate registration and is equipped with an advanced plate changing system, allowing for fast and efficient plate changes.
