Heidelberg - CD 102-4

Key Technical Aspects:

Dimensions and Specifications :The Heidelberg CD 102-4 has a length of 23.6 meters, a width of 6.3 meters, and a height of 2.1 meters. It weighs approximately 120 tons and has a maximum sheet size of 720 x 1020 mm. The machine's production capacity is up to 15,000 sheets per hour.

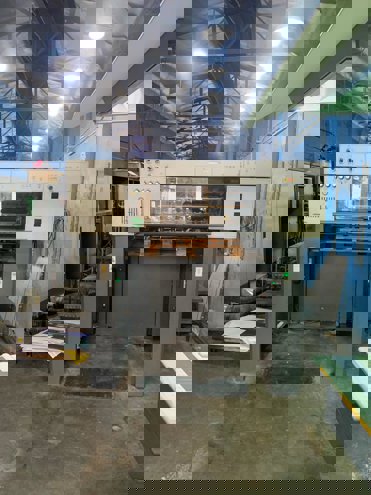

Paper Handling :The paper handling system of the Heidelberg CD 102-4 features a high-capacity feeder, capable of handling sheets up to 1.2 mm thick. The machine is equipped with an automatic pile changer, allowing for efficient and rapid job changes. The delivery system includes a high-speed stacker and a palletizer, ensuring smooth and organized sheet handling.

Printing Unit :The printing unit of the Heidelberg CD 102-4 is equipped with four colors and features a maximum print speed of 15,000 sheets per hour. The machine uses the latest offset printing technology, providing high-quality prints with precise registration and vibrant colors. The print resolution is up to 400 lines per inch, ensuring detailed and crisp images.

Ink System :The ink system of the Heidelberg CD 102-4 uses a high-quality, low-maintenance ink, designed to provide consistent and reliable performance. The ink is supplied through a closed-loop system, minimizing waste and reducing the risk of ink-related problems. The machine is also equipped with an automatic ink control system, ensuring optimal ink levels and reducing the need for manual adjustments.

Plate Cylinder :The plate cylinder of the Heidelberg CD 102-4 is designed for high-quality plate imaging and precise registration. The machine features an automatic plate changer, allowing for rapid job changes and minimizing downtime. The plate cylinder is also equipped with a advanced cooling system, ensuring consistent and reliable performance even during long production runs.
