ConsoleMachine Specification
| Features | Value |
|---|---|
| Number of colours | 5 |
| Max sheet size | 14.57X20.47 inch | 37x52 cm |
Machine Description
Max Speed: 12,000 sph.
Stock : 0.04 to 0.4 mm.
Stream feeder with suction belt feed board.
Mechanical and ultrasonic double sheet detection.
Pneumatic side lay.
Continuous monitoring of sheet arrival at front lays.
Semi automatic plate loading with pre load facility.
Automated ink sweep with pre-inking facility *Precision laser cut segmented ink keys.
Automatic roller wash (programmable)*.
Continuous metered dampening system with an oscillating bridge roller and pre-damp facility.
Optional integrated or separated dampening during production.
Speed compensated damping.
Automated refrigeration - recirculation and dosing unit.
Cylinder movement-circumferential-lateral and diagonal.
Quick release blanketsTouch screen controls.
Programmable pre-dampening cycle.
Powder spray unit with heated reservoir and vibration.
Three motorised suction slow down devices.
Sheet de-curlerAir shower in delivery.
Off press controls with CIP3 compatibility*Network ready*.
Remote ink profile setting (fully automated with CIP3 link)*Job storage*.
Central oil shower lubrication system.
Pneumatically controlled operation.
X Rite Colour Bar Scanner.
Low Pile Delivery
| Model | Hans Gronhi-GH 525 |
|---|---|
| Manufacturer | Hans Gronhi |
| Year | 2017 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | United Kingdom |

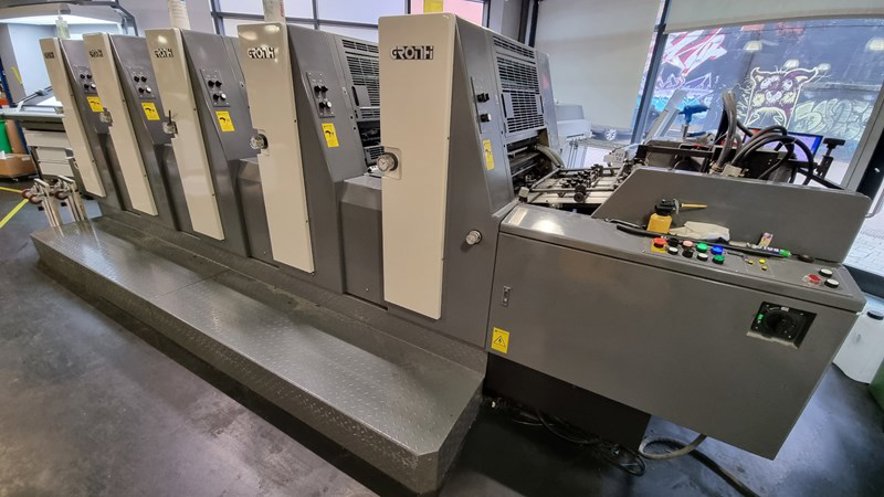

About Hans Gronhi - GH 525
The Hans Gronhi GH 525 is a high-performance, sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is ideal for printing high-quality materials such as brochures, catalogs, and packaging materials. Key features of the GH 525 include its high-speed printing capabilities, advanced paper handling system, and precise registration control. The benefits of this machine include increased productivity, reduced waste, and improved print quality. Typical applications of the GH 525 include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The Hans Gronhi GH 525 has a length of 7,500 mm, a width of 2,500 mm, and a height of 2,200 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour. The machine has a maximum sheet size of 525 x 750 mm and a minimum sheet size of 350 x 500 mm.
Paper Handling : The GH 525 features a advanced paper handling system with a maximum pile height of 1,500 mm and a sheet capacity of 5,000 sheets. The machine is equipped with a suction tape feeder, a sheet alignment system, and a precision sheet delivery system.
Printing Unit : The printing unit of the GH 525 features a maximum printing speed of 15,000 sheets per hour and a maximum printing pressure of 400 kN. The machine uses a conventional offset printing process with a resolution of 254 lpi and a printing repeat length of 450 mm.
Ink System : The GH 525 uses a high-precision ink system with a maximum ink flow rate of 120 kg/h. The machine is equipped with a ink fountain with a capacity of 20 kg and a ink duct with a capacity of 10 kg.
Plate Cylinder : The plate cylinder of the GH 525 has a diameter of 750 mm and a circumference of 2,356 mm. The machine uses a plate locking system with a maximum plate thickness of 2.5 mm and a minimum plate thickness of 1.5 mm.
