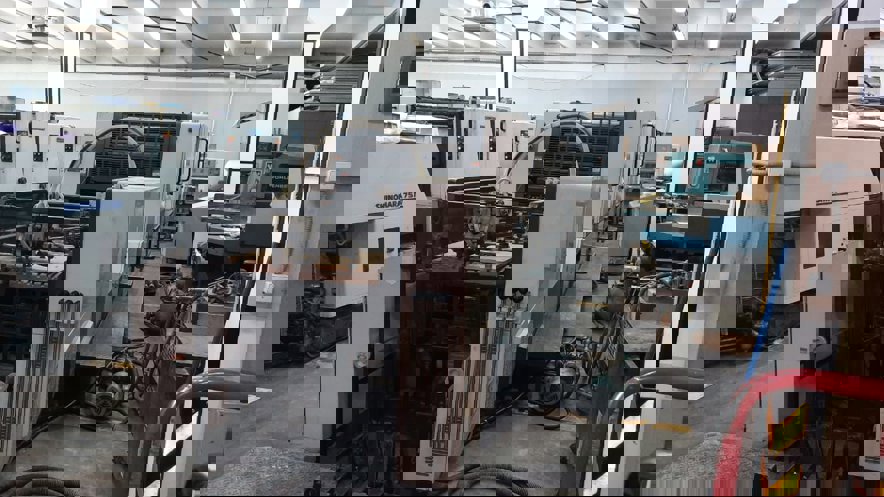

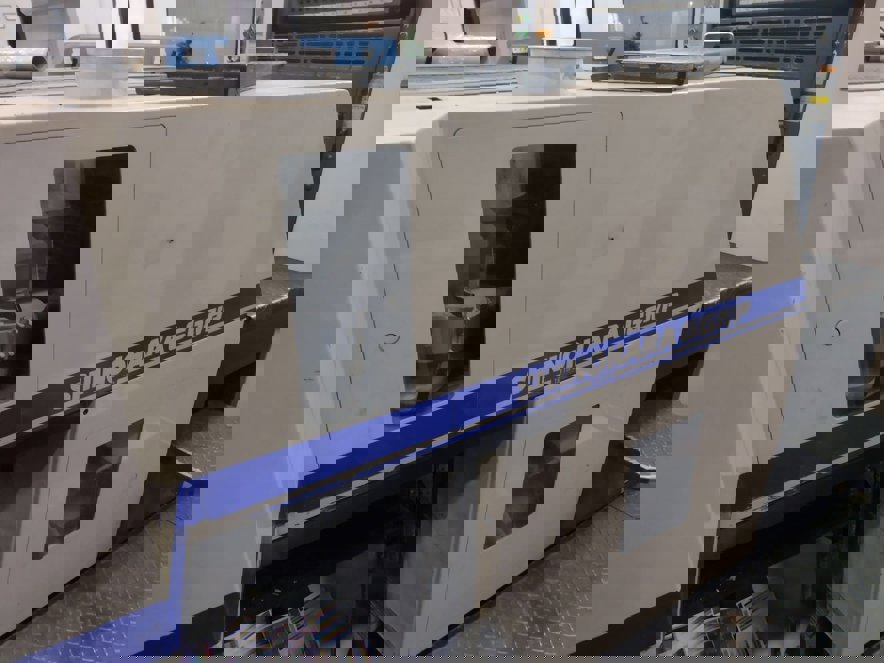

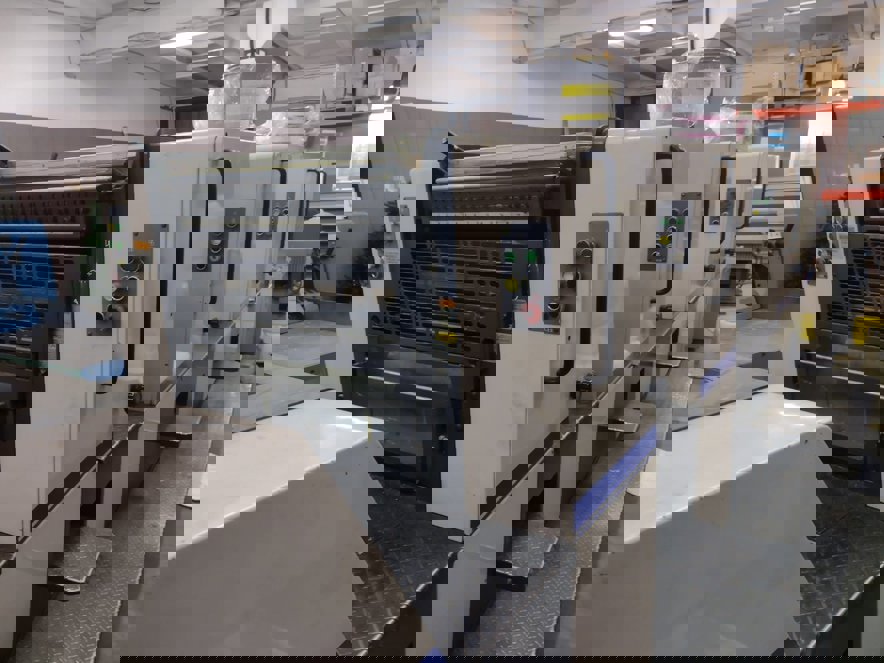

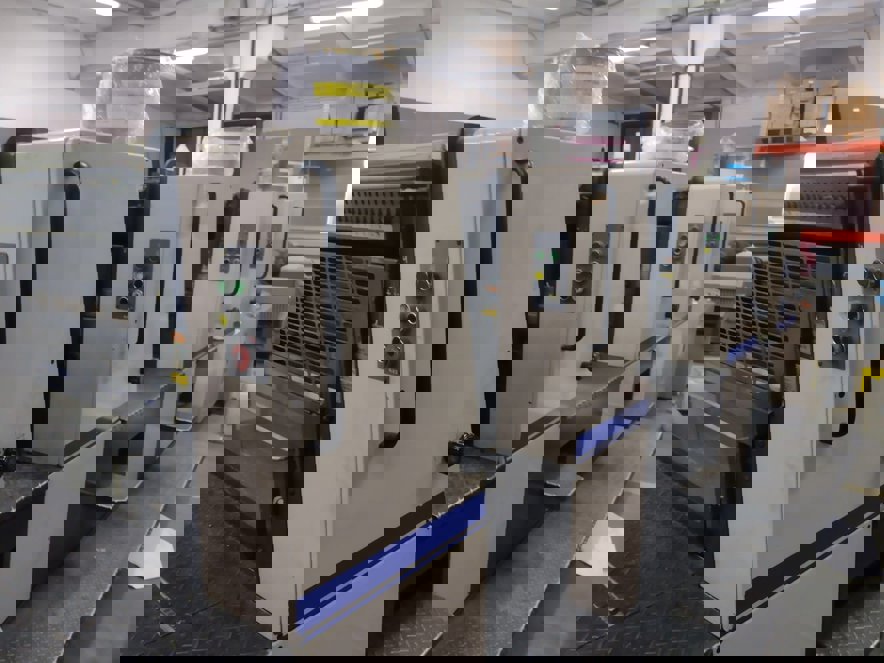

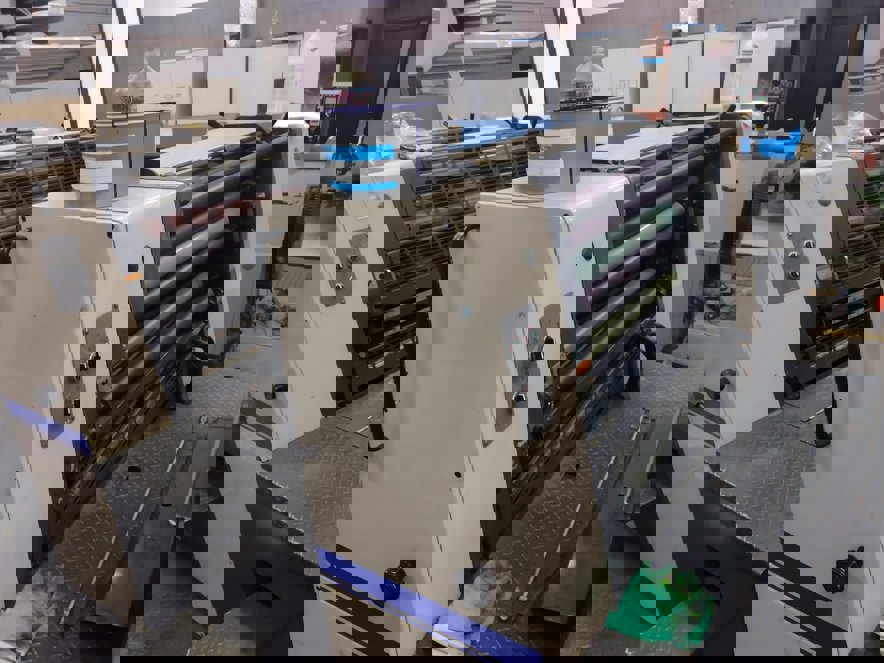

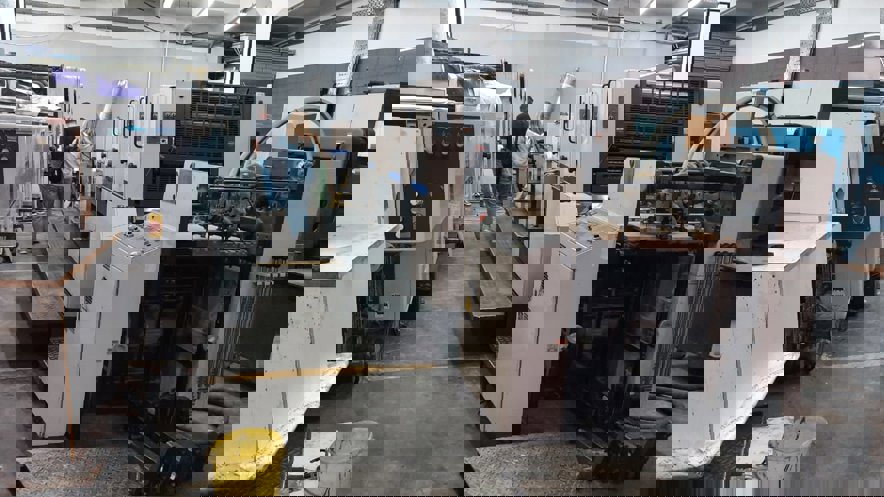

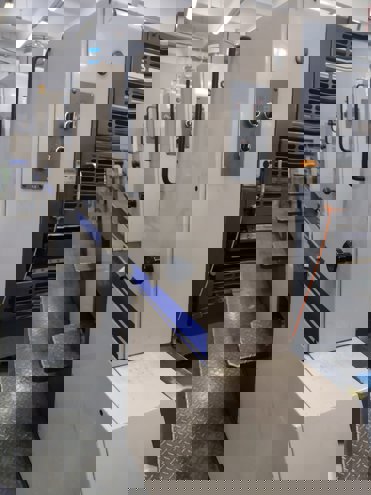

Shinohara - 66 IV

Key Technical Aspects:

Dimensions and Specifications : The Shinohara 66 IV has a length of 7,480 mm, a width of 2,300 mm, and a height of 2,200 mm. The machine weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour.

Paper Handling : The Shinohara 66 IV features a advanced paper handling system, including a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 360 x 520 mm to 660 x 940 mm. The press is equipped with a double-sheet detection system and an anti-marking system to prevent sheet-to-sheet marking.

Printing Unit : The printing unit of the Shinohara 66 IV features a maximum printing area of 660 x 940 mm and a minimum printing area of 360 x 520 mm. The press is capable of printing at a resolution of 300 lpi and has a maximum printing speed of 15,000 sheets per hour. The printing unit utilizes a conventional offset printing process with a three-cylinder arrangement.

Ink System : The Shinohara 66 IV features a high-performance ink system, utilizing a combination of ductless and ducted ink distribution systems. The press has a maximum ink capacity of 20 kg per color and is equipped with an automatic ink supply system and an ink temperature control system.

Plate Cylinder : The plate cylinder of the Shinohara 66 IV has a diameter of 660 mm and a circumference of 2,070 mm. The plate cylinder is designed for precise registration control and features a automatic plate changing system, allowing for quick and efficient plate changes.
