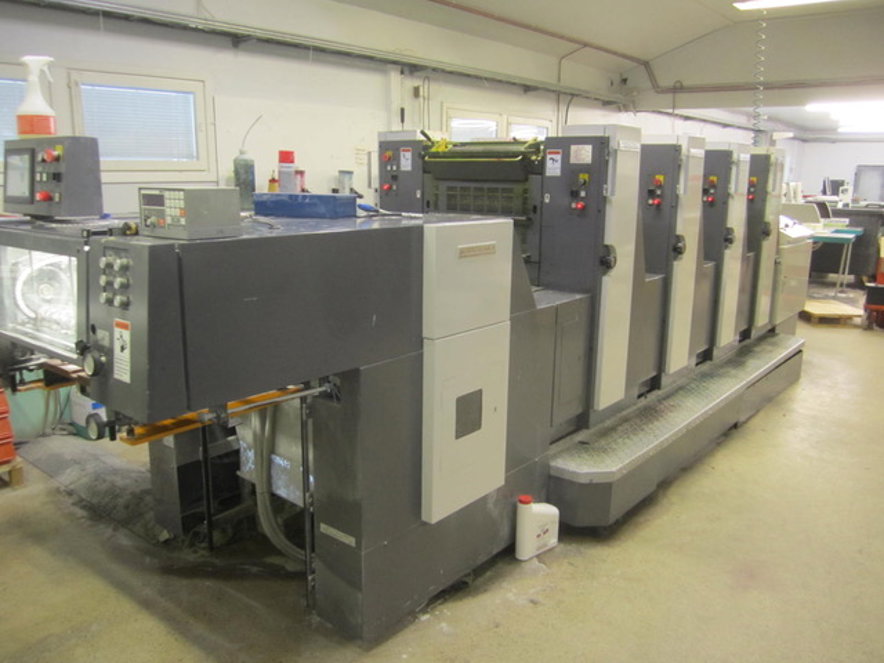

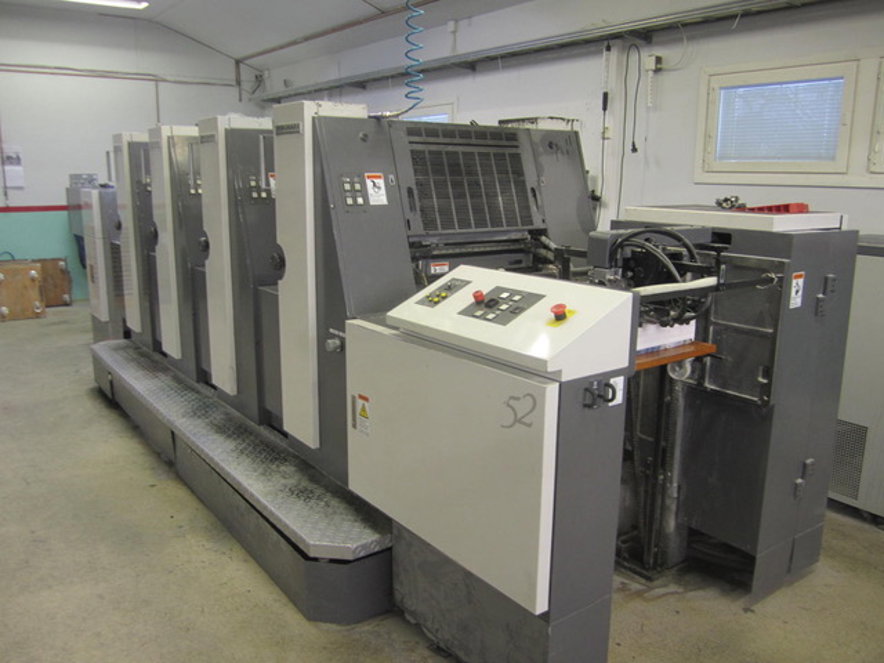

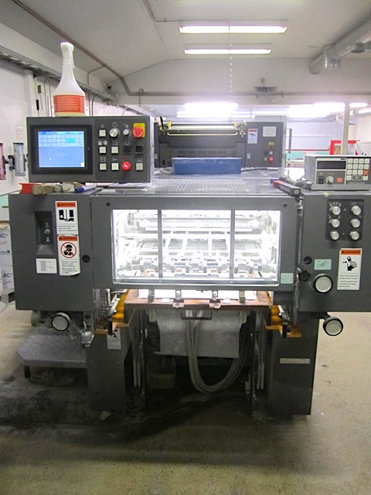

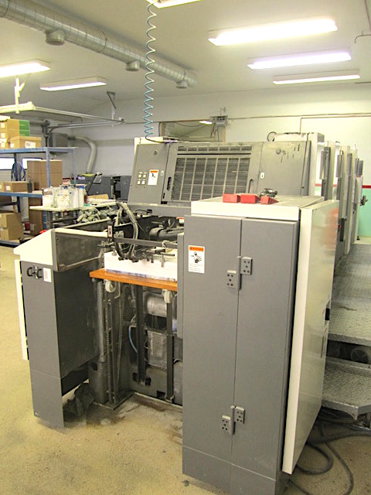

Shinohara - 52 IVPH

Key Technical Aspects:

Dimensions and Specifications : The Shinohara 52 IVPH has a length of 5,500 mm, a width of 1,800 mm, and a height of 1,900 mm. The machine weighs approximately 4,500 kg and has a maximum printing speed of 15,000 sheets per hour. The press has a maximum sheet size of 520 x 740 mm and a minimum sheet size of 350 x 500 mm.

Paper Handling : The Shinohara 52 IVPH features a advanced paper handling system, including a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet capacity of 5,000 sheets. The press is equipped with a double-sheet detection system and an anti-marking system to prevent sheet scratching. The delivery system features a jogger and a stacker, allowing for efficient and organized sheet collection.

Printing Unit : The printing unit of the Shinohara 52 IVPH features a maximum printing speed of 15,000 sheets per hour and a maximum printing pressure of 400 kg/cm². The press uses a three-cylinder arrangement, with a plate cylinder, blanket cylinder, and impression cylinder. The printing unit is equipped with a precision registration system, ensuring accurate color-to-color registration and minimal waste.

Ink System : The Shinohara 52 IVPH uses a high-precision ink system, featuring a ink fountain with a capacity of 20 kg and an ink pump with a flow rate of 20 liters per minute. The press is equipped with a ink temperature control system, ensuring consistent ink viscosity and optimal print quality.

Plate Cylinder : The plate cylinder of the Shinohara 52 IVPH has a diameter of 520 mm and a length of 740 mm. The plate cylinder is designed for high-speed printing and features a precision plate clamping system, ensuring accurate plate registration and minimal plate wear.
