Machine Description

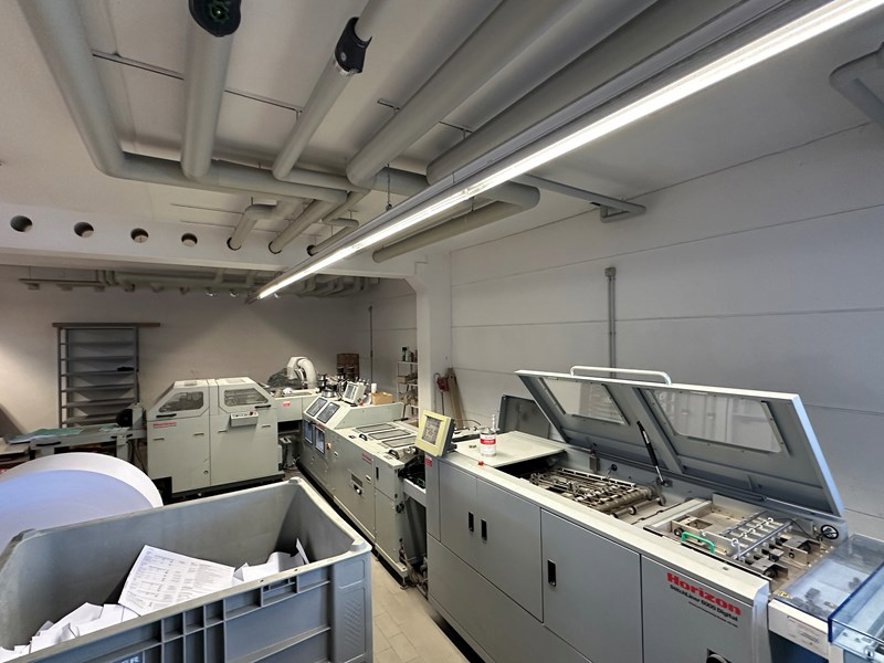

Used Horizon StitchLiner 6000 Saddle-Stitching System.
.
The Horizon StitchLiner 6000 is a powerful all-in-one solution for booklet production. It combines rolling, scoring, folding, stitching, and three-side trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous advantages for print shops, binderies, and on-demand printing..
.
.
This StitchLiner 6000 consists of the following components:.

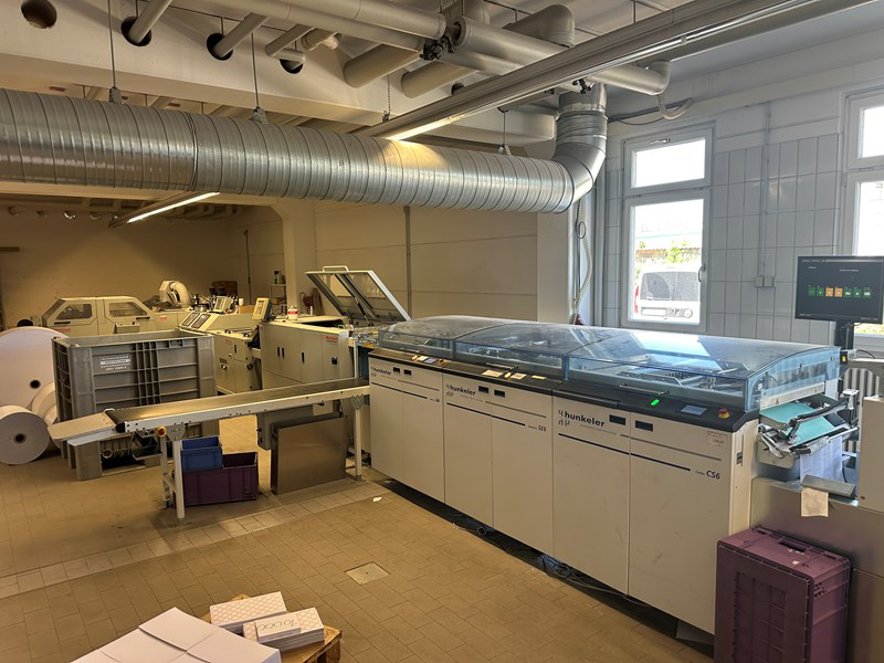

- Hunkeler LS6, SE6, CS6.

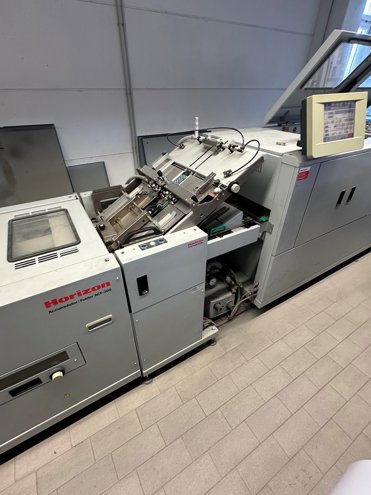

- ACF-30 Accumulating and Folding Unit.
- SPF-30 Saddle-Stitcher.
- HTS-30 Three-Knife Trimmer.

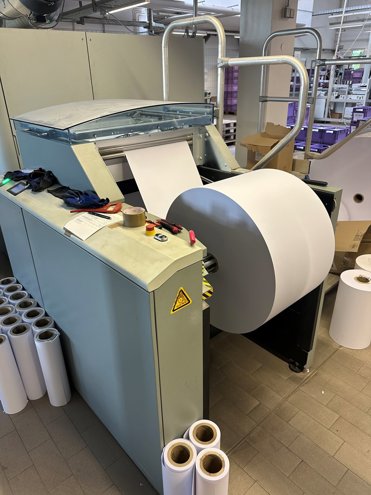

- UW6 unwinder.
- WB6 web buffer.
- TS6 transfer module.
- TB6 storage belt.
Key Features:.
- Inline production from collating to finished product.
- Variable data processing: The system can handle personalized prints and variable page numbers, making it ideal for digital printing.
- Fully automatic format adjustment for quick job changes.
- Touchscreen for user-friendly operation, even for less experienced operators.
.
.
Technical Specifications:.
- Sheet sizes: Max. 350 x 500 mm, Min. 120 x 210 mm.
- Paper weight: 64-300 g/m².
- Processing thickness: Up to 5 mm (approx. 50 sheets of 80 g/m²).
- Production speed: Up to 6,000 booklets/hour.
- Stitch spacing: 60-150 mm.
- Trimming (untrimmed): Max. 350 x 250 mm, Min. 120 x 85 mm.
- Trimming (trimmed): Max. 340 x 240 mm, Min. 85 x 75 mm.
- Power supply: 200-240V, 50/60Hz.
- Compressed air: 5 bar, 230 l/min...
The Horizon StitchLiner 6000 is a high-performance saddle-stitching system designed for efficient booklet production, combining rolling, scoring, folding, stitching, and three-side trimming in a single inline process. Ideal for print shops, binderies, and on-demand printing, this versatile machine offers user-friendly operation, rapid job changes, and variable data processing capabilities. With its robust construction and advanced automation, the StitchLiner 6000 delivers high productivity, consistent quality, and flexibility for producing professional booklets, catalogs, brochures, and personalized documents.
Key Technical Aspects:
Dimensions and Specifications : The Horizon StitchLiner 6000 operates at speeds up to 6,000 booklets per hour with a power supply of 200-240V, 50/60Hz. It requires compressed air at 5 bar and 230 l/min. The system features fully automatic format adjustment for quick job changes and a touchscreen interface for intuitive operation.
Paper Handling : The machine accommodates sheet sizes from 120 x 210 mm to 350 x 500 mm with paper weights ranging from 64-300 g/m². It processes booklet thicknesses up to 5 mm (approximately 50 sheets of 80 g/m²) with stitch spacing adjustable between 60-150 mm. The three-knife trimmer handles untrimmed sizes from 120 x 85 mm to 350 x 250 mm and finished sizes from 85 x 75 mm to 340 x 240 mm.
| Model | Horizon-Stitchliner 6000 |
|---|---|
| Reference Number | 70266 |
| Manufacturer | Horizon |
| Year | 2014 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
