Saddle Stitcher Horizon Stitchliner MK III

Machine Description

Latest generation, fully automatic setting Sheet Collating and Saddle Stitched Booklet System..
Features:.
In addition to booklet format, all necessary adjusting points including stitcher head settings are automated..
All necessary adjustments can be performed depending on booklet thickness..
News on the run adjustments can be made enhancing booklet quality..
Sheet job, scoring and fold, wire length adjustment, booklet folding and position before trim are all improved in accuracy, quality and efficiency..
A4 Landscape booklets can be produced with the production speed of 5,300 booklets per hour.
Can be integrated with existing Horizon collating systems and accessories.
Works from flat-sheet 4-page sections.
• Icon-based 200 job memory colour touch-screen.
• Simple, fast set-ups by non-specialist finishing operators.
• Advanced all-system automation.
• Make-ready in seconds, next-to-no-waste, on-demand working.
• Works from flat-sheet 4-page sections.
• No need to pre-fold.
• Integrated automatic set-up 3-knife trimmer.
• No need to pre-trim.
• Score, plough fold, registration, and genuine saddle stitch.
• High quality books with sharp spine definition.
• High efficiency from runs-of-one.

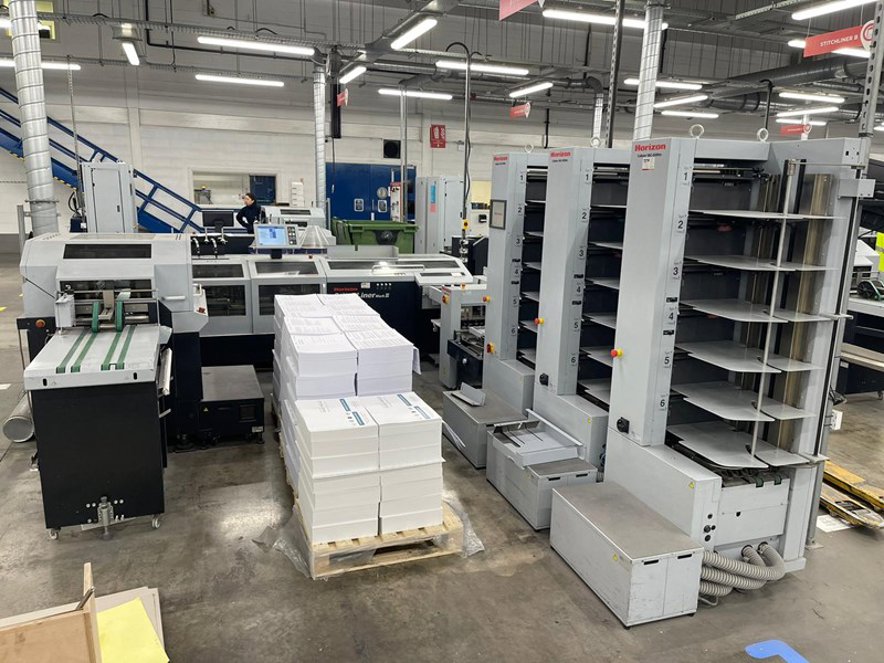

Comprising:.
18 station (2 x VAC600Hm + 1 x VAC600Ha) 6 station tower suction collators.
With touch-screen control, double- and miss-sheet control..
ST-40 stacker to.
Accumulator/Folder ACF-40 with double gate-fold to;.
SPF-40 Saddle stitcher with 4 x standard stitching heads & 2 x loop heads to;.
HTS-40 Three knife trimmer unit with hand-feed station.
Shingle delivery belt.
Including vacuum compressors. tools & manuals..
Specification:.
Max sheet size: 350W x 500L mm.
Min sheet size: 148 x 210 mm.
Max stitch thickness: 6 mm..
Production speed up to 6,000 booklets per hour, dependent on stock.

ModelHorizon-Stitchliner MK III
ManufacturerHorizon
Year2017
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationUnited Kingdom

About Horizon - Stitchliner MK III

The Horizon Stitchliner MK III is a high-performance saddle-stitching machine designed for commercial printing and finishing applications. This machine is ideal for producing high-quality, professionally bound books, catalogs, and other publications. Key features of the Stitchliner MK III include its high-speed stitching capability, advanced paper handling system, and precision engineering for accurate and reliable performance. The benefits of this machine include increased productivity, reduced labor costs, and improved product quality. Typical applications of the Horizon Stitchliner MK III include commercial printing, bookbinding, and finishing operations.

Key Technical Aspects:

Dimensions and Specifications : The Horizon Stitchliner MK III measures 123 inches (313 cm) in length, 43 inches (109 cm) in width, and 55 inches (140 cm) in height. It weighs approximately 2,200 pounds (1,000 kg) and has a maximum stitching capacity of 10,000 books per hour.

Paper Handling : The Stitchliner MK III features a high-capacity paper handling system with a 24-inch (610 mm) wide sheet feeder, capable of handling paper sizes up to 14.33 inches (364 mm) x 20.5 inches (521 mm). The machine is equipped with three horizontal and two vertical stitching heads, allowing for precise and efficient stitching of various paper sizes and thicknesses.

Stitching Unit : The Stitchliner MK III's stitching unit is designed for high-speed operation, with a maximum stitching speed of 10,000 cycles per hour. The machine uses a wire stitching system with a 1.5 mm to 3.5 mm wire diameter range, allowing for flexible and reliable stitching of various paper types and thicknesses.

Ink System : Not applicable, as the Horizon Stitchliner MK III is a stitching machine and does not use ink.

Plate Cylinder : Not applicable, as the Horizon Stitchliner MK III is a stitching machine and does not use a plate cylinder.
