Horizon - Stitchliner 5500

Sold Out

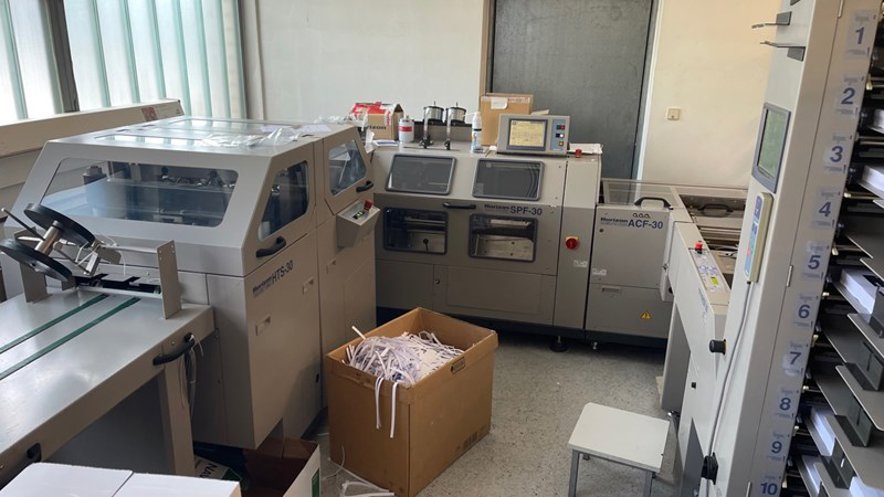

Saddle Stitcher Horizon Stitchliner 5500

Machine Description

.
- Gathering tower VAC-100a.
- Gathering tower VAC-100m.
- High-speed offline feeder HOF-30.
.
saddle stitcher Stitchliner 5500:.
- Gathering and folding unit ACF-30.
- Saddle stitcher SPF-30.
- Three-side cutter HTS-30.
.
.
Horizon VAC-100a / Horizon VAC-100m.
Suction air gathering machines.
.
- Technology: Touch & Work.
- Model: Suction and blown air gathering tower.
- Number of stations: 10.
- Error prevention: Missing, double sheet and jam control.
- Job storage: 9 storage spaces for repeat jobs.
- Expandability: up to 6 towers (60 stations).
.
Programs:.
- double cycle (non-stop operation).
- insertion (1-fold and 2-fold).
- booklet.
program - block program.
- selective gathering.
.
- format: max. 500x350mm; min. 148x120mm.
- paper weight: 40-250g/sqm.
- loading capacity: 55mm/ station.
.
- speed: up to 9,500 sets/h.
.
- power: 230V; 50/60Hz - 1.86kW.
- Dimensions: 842x652x1,961mm.
- Weight: 310kg each.
.
.
Horizon High-Speed ​​Offline Feeder HOF-30.
.
- Suitability: for digital printing.
- Error prevention: mis-, double-sheet and jam control.
- Compatibility:.
Horizon STITCHLINER 5500.
Horizon SPF -20A / FC-20A.
Horizon SPF-200A / FC-200A.
.
- format: max. 500x350m; min. 275x200mm.
- paper weight: max. 160g/sqm; min. 52g/sqm.
.
- output: up to 27,000 sets/h.
- stack height: 450mm.
- power: 230V / 50Hz.
- dimensions: 1,460x630x945mm.
- weight: 180kg.
.
.
Horizon Stitchliner 5500:.
Horizon ACF-30 + Horizon SPF-30 + HTS-30 Gather.
& fold + saddle stitcher + three.
.
-side trimmer - format setting: fully automatic.
- DIN formats and standard fold types: pre-assigned.
- job memory: 200 memory locations for repeat jobs - stapling options:.
saddle stitch, block, corner stapling.
- stapling heads: 2 - can be expanded to 4 stapling heads -OPTION.
- loop stitching: with eyelet stitching heads possible.
.
.
- infeed format:.
max. 500x350mm;.
min. 210x148mm.
.
- paper weight:.
max. 350g/sqm; min. 60g/sqm.
- processing strength:.
max. 200 pages, min. 8 pages.
- staple strength: max. 5mm /.
max. 3mm with eyelet.
- staple spacing: max. 150mm; min. 60mm.
.
- Speed: max. 5,500 cycles/h.
.
.
Trimming:.
.
- Formats untrimmed:.
max. 350 x 250mm; min. 140 x 103mm.
.
- formats cropped:.
max. 312x 230mm; min. 120 x 95mm.
.
- power: 400V / 50Hz.
- work surface / installation area:.
min. 5,709x3,240mm.
Weight Stitchliner: 2,120kg.
.

ModelHorizon-Stitchliner 5500
ManufacturerHorizon
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationGermany

About Horizon - Stitchliner 5500

The Horizon Stitchliner 5500 is a high-performance saddle-stitching machine designed for commercial printing and finishing applications. This machine is ideal for producing high-quality, professionally bound books, catalogs, and other publications. Key features of the Stitchliner 5500 include its high-speed stitching capability, advanced paper handling system, and precision engineering for accurate and reliable production. The benefits of this machine include increased productivity, reduced labor costs, and improved product quality. Typical applications of the Stitchliner 5500 include bookbinding, catalog production, and finishing of other printed materials.

Key Technical Aspects:

Dimensions and Specifications : The Horizon Stitchliner 5500 measures 144 inches (365 cm) in length, 48 inches (122 cm) in width, and 60 inches (152 cm) in height. It weighs approximately 4,400 pounds (2,000 kg) and has a maximum stitching capacity of 10,000 books per hour.

Paper Handling : The Stitchliner 5500 features a high-capacity paper handling system with three horizontal feeders, each capable of holding up to 3,000 sheets. The machine also includes a precision-controlled paper alignment system and a high-speed stitching unit with 10 stitching heads.

Stitching Unit : The Stitchliner 5500's stitching unit is capable of producing up to 10,000 stitches per hour, with a maximum stitch length of 12 inches (305 mm). The machine uses a high-strength, rust-resistant wire and features an automatic wire feed system for efficient production.

Ink System : Not applicable, as the Stitchliner 5500 is a stitching machine and does not use ink.

Plate Cylinder : Not applicable, as the Stitchliner 5500 is a stitching machine and does not use plate cylinders.
