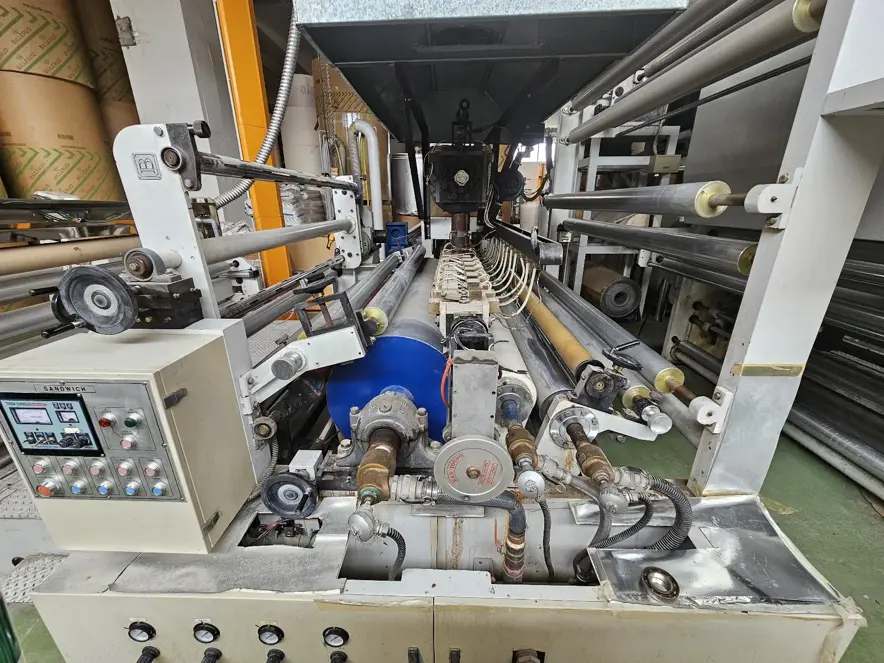

Hang
Extrusion lamination
2005
Film processors
Maximum width: 2200 mm Coating/lamination units: Unit 1 - Rotogravure coating unit: - 2 drying hoods 2,5m length - drying with 2 x oil heaters - Each hood with dedicated heater and blower Unit 2 - Extrusion lamination unit: - Volumetric doser - Extruder diameter: 90 mm - Extrusion die width: 2200 mm - Chill roller diameter: 700 mm - Lamination nip 2 x Corona treater Primary unwinder - Turret Automatic; diameter: 1000 mm Secondary unwinder description - single position for Alu foil; diameter: 1000 mm Rewinder - Turret Automatic; diameter: 1000 mm Mechanical Speed: 200 m/minute (Production speed depending on materials) Single 2200 with one extruder and two coronas Can coat EVA Coating: 7 – 25 g/sqm Maximum paper grammage:150 g/sqm Maximum paper thickness: 250 microns Electrical: 3p / 400V +/-10% / 50hZ / 385 Kw The extruder and die were recently cleaned NO PLC Errors NO Drives errors
GreeceBobst

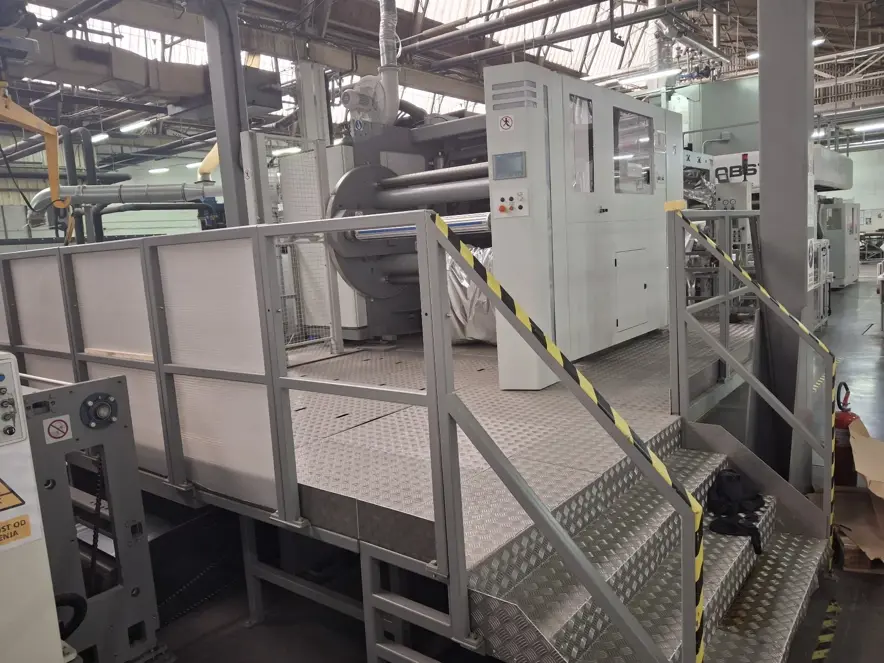

Rotoextruder 400F 1300/400
2017
Film processors
For extrusion coating and laminating BOPP, PET, PA, OPA, PE, Paper, Laminated materials Web width: 650- 1300 mm Mechanical speed: 400 m/minute Minimum operating speed: 50 m/minute Web direction - from left to right Minimum temperature: 230 °C Minimum pressure: 6 bar
HungaryHanyoung
Tandem
2001
Film processors
2 x extruders Corona Fully automatic operation Automatic splicing for rewinder/unwinder Material: - Paper up to 150gsm - Film PP, PET, BOPP, PVC up to 250 microns Coating material: All polymers Speed: 250 m/minute Overhauled in 2009 Excellent condition The machine has produced: PET + PE, PET + PE + ALU + PE, PAPER + PE, PAPER + PE + ALU + PE Web width max.: 1500mm Heating source for drying: Steam Core diameter : 76mm (3 inches), 150mm (6 inches) with adaptors Automatic Control Tension Sandwich Unwinder: 1500 mm Double auxiliary unwinder Maximum diameter: 550 mm Core diam. :76mm (3 inches), 150mm (6 inches) with adaptors Output capacity: 140 Kg/hour Die gap range: 5 - 35 microns Available coating thickness: 5 - 35 microns Automatic splicer maximum diameter: 1000 mm Core diam. :76mm (3 inches), 150mm (6 inches) with adaptors
Italy
