Luscher
XPose 230 UV
2012
CTP systems
Lüscher XPose 230 UV + PHS and TiFF Shooter including computer hardware for offset plates and water-based washable flexo printing plates 405 nm UV diodes for conventional offset printing plates and diazo films as well as coating plates from Mac Dermid (also rotary screens from Gallus, Kocher + Beck and Stork can be easily exposed with 405 nm UV) For the direct exposure of water-washable flexographic printing plates or conventional letterpress plates without LAMS layer, laser diodes with 375 nm are used 32 laser diodes with 375 nm for water-based washable flexographic printing plates 16 laser diodes with 405 nm Inline punch for Bacher 2000 Autoplate 780 mm and 425 m plate counter: 58,736 plates laser time: 4,030 hours sliprint revolutions: 30894729 Lüscher Plate Handling System PHS 230 with five plate magazines (can be omitted upon request) Transport table Glunz & Jensen IP 66 Offset printing plate processor AGFA Elantrix DX 85 with two brush rollers, built in 2017
Neuruppin
Germany
Agfa
Avalon N8-60
2011
CTP systems
Agfa Avalon N8-6o with MAL and Apogee Rip, built in 2011 low counter reading 281956 with 5052 operating hours Speed: 33 plates per hour and Nela Punch The customer had a GOSS and a Heidelberg XL 106 the two Nela die-cutting machines are designed for offline manual cutting was used Avalon-N8_60-80
NeuruppinGermany
Heidelberg
Topsetter 102 SCL
2001
CTP systems
B1 Thermal CTP System 1 storage cassette Resolution 1200 – 4000 dpi min. 650 x 550 mm max. 1060 x 940 mm internal punch 780mm 32 diodes
NeuruppinGermany
Heidelberg
Suprasetter 74 S
2006
CTP systems
complete semi-automatic thermal CTP system Heidelberg with print-ready workflow and wash gumming Year of construction August 2006 Prinect Meta Shooter Prinect Meta Rip Prinect Meta Printraedy Workflow M Prinect Signastation PDF Toolbox Proof printer Epson internal plate punch 425mm Autoplate Suction for ablative plates internal autoplate punch 425mm max. plate format 680×750 mm min. plate format 370x323mm manual plate feed, automatic plate ejection Output capacity 19 plates / hour in full format Washing gum Glunz & Jensen C 85 with Stacker Advant PST 26
NeuruppinGermany
Heidelberg
Suprasetter 74 S
2004
CTP systems
with 4 laser heads, ie output 21 plates/hour Manual system with online bridge to development internal autoplate punch 425mm max. plate format 680×750 mm min. plate format 370x323mm Prinect Meta Shooter Prinect Meta Dimension Plate development Kodak Mercury 850
NeuruppinGermany
Heidelberg
Suprasetter 106 UV
2014
CTP systems
The device can be used to expose inexpensive conventional offset printing plates. approximately 86,000 exposed printing plates MetaShooter Auto Dual Cassette Loader Throughput: 23 plates/h at max. format Resolution: 2400 dpi, 2540 dpi Internal punch: Bacher Control 780 mm Glunz & Jensen printing plate processor Printing plate stacker PST 36
NeuruppinGermany
Heidelberg
Suprasetter 105
2005
CTP systems
Year of construction 2005 Thermal laser 830 nm for throughput of approximately 18 full-format plates per hour Single cassette loading system with two plate carriages Internal Heidelberg Autoplate register punch hole spacing 780mm Prinect MetaShooter Prinect MetaDimension Workflow Kodak Mercury 850 MK VI thermal development Kodak plate stacker with cart
NeuruppinGermany
Heidelberg
Suprasetter 105 S
2007
CTP systems
Year of construction 3- 2007 Laser power only approx. 3400 hours 3 thermal lasers 830 nm, for throughput of max. 21 plates/h Min. plate size (height × width) 370 × 323 mm Max. plate size (height × width) 930 × 1,140 mm Plate thickness 0.15-0.35 mm Resolution 2,400 or 2,540 dpi Internal punch pair 780 mm / 425 mm SCL Single Cassette Loader Fully automatic plate loading and unloading unit with automatic interleaf removal and integrated 90-degree bridge to the online processor Cassette with up to 100 plates (0.3 mm) or 150 plates (0.15 mm) Prinect MetaShooter Dimension Workflow 11.0 prepared for Heidelberg Lenticular exposure Kodak Mercury 850 plate developing machine Stacker with trolley
NeuruppinGermany
Heidelberg
Polysetter 52
2005
CTP systems
The polyester CTP system, which delivers color-separated, punched, and accurately registered polyester plates up to the maximum Heidelberg SM 52 format, which can be used immediately on the printing press. max. format: 460 x 550 mm Integrated register punch Online development Prinect MetaShooter
NeuruppinGermany
FUJI
PT-R 4300 S
2010
CTP systems
Fuji PT-R 4300 S with Fuji XMF software, no PC required! From 2010, 286,319 plates exposed so far under a Fuji full-service contract. Basket for paper single plate loader SA-L 4300II with 2 cassettes Imagesetter PT-R 4300S internal punch – Heidelberg Capacity: 20 plates B2/h Bridge Developer Glunz & Jensen Quartz III 85 Stacker Advant PST 360. Complete documentation
NeuruppinGermany
FUJI
PT-R 4300 E
2007
CTP systems
automatic thermal CtP system Fuji with Highwater Rip Version 8 OEM Screen PT-R 4300-E or Agfa Acento II E Commissioning 2007 only 9835 plate winding cycles, exposure time 1231 h SAL Single record loading cassette for 50 records without interleaved paper 16 thermal laser diodes 830nm Resolution 2400 dpi Output approx. 11 plates/h built-in punch HB 425mm (other punching patterns on request) min. format 324 x 370mm max. format 830 x 660mm Plate thickness 0.15-0.30mm Plate stacker
NeuruppinGermany
Esko
DPX4
2004
CTP systems
System: Internal drum CTP, fully automatic Speed: 27 plates/hour at 2,540 dpi Printing plates: Mitsubishi Silver Digiplate polyester plates Plate format: max. 680 x 750 mm Exposure format: max. 654 x 747 mm Integrated punch Bacher 2000, 425 mm Laser: Red light laser diode, 670 nm Spot size: 10 – 26 µm Resolution: 1,200 – 3,000 dpi Repeatability: 0.0075 mm print image to print image Development unit: integrated 2-bath development Dryer: integrated Material cassettes: 2 RIP software: RipMate, based on Harlequin Genesis Release Punching: Head and/or side punching
NeuruppinGermany
Esko
DotMate7500
1997
CTP systems
The DotMate 7500 is a highly productive B2+ imagesetter that can output conventional film material or polyester printing plates. Exposure format 610 mm x 750 mm 20 full-format films per hour Resolution of 900 – 3600 dpi internal Bacher punch Spot size (depending on resolution) 8 – 21 micron Repeatability +/- 5 microns Fully integrated online processor with desilvering of the fixer bath, controlled via console software on the RIP computer Inner drum technology with rip
NeuruppinGermany
Mitsubishi
DPX 460
2007
CTP systems
for the production of print-ready punched polyester printing plates for GTO, Ryobi 5x up to 3600 dpi Print run duration 20-25000 sheets Resolution up to 70s grid integrated register punch DPX-RIP-Mate V8.x
NeuruppinGermany
Creo-Scitex
Lotem 800 V
2003
CTP systems
fully automatic external drum CtP exposure unit Infrared laser, 830 nm min. plate format 400 x 510 mm max. plate format 905 x 1130 mm Material thickness 0.2-0.3 mm Exposure speed approx. 10 plates/h at 100 l/cm Resolution continuously from 1524 to 3556 dpi with 1 printing plate carriage with Bacher 2000 Autoplate register punch (425 / 780 mm) with conveyor for online development machine Kodak XPO Station Mercury 1250 plate processor with stacker
NeuruppinGermany
Kodak
Lotem 400 Processless
2004
CTP systems
approx. 18,000 plates exposed External drum CtP exposure unit Infrared thermal laser 830 nm min. plate format in drum circumference 311 x 622 mm Max. plate size along the drum axis 229 x 750 mm Material thickness 0.15-0.3 mm manual record loading XPO workstation
NeuruppinGermany
Agfa
Avalon N 8-50
2008
CTP systems
Agfa Avalon N 8-50 S with multicassette MAL (5 x 100 disks loading capacity), a trolley internal plate punch Autoplate 425mm and 780mm Conveyor AT-T 8001 Plate development Agfa Elantrix 125HX (OEM Glunz & Jensen Quarz III 125) Plate stacker Highwater Rip Light source: GLV head with 512 channels Speed approx. 31 plates/h @ 2400 dpi Resolution 2,400 dpi / 4,000 dpi Max. plate format 1,160 mm x 940 mm Min. plate format 450 mm x 370 mm Plate thickness 0.15 – 0.30 mm
NeuruppinGermany
Heidelberg
Suprasetter 105
2009
CTP systems
8up thermal ctp Heidelberg Suprasetter 105 with MCL and Prinect Metashooter 11 Built in 2009 in good running condition Four thermal lasers 830nm with 8704 exposure hours Speed approx. 18 plates per hour Multicassette for 4 x 100 plates with paper Inner punch Heidelberg Autoplate size SM 102, CD 105 and XL 106 Advant PST 36 L panel stacker
DabergotzGermany
Heidelberg
Suprasetter 106
2013
CTP systems
Advand PST 48 Resolution: 2400 - 5080 dpi Maximum speed: 18 plates/hour Maximum plate format: 1060 x 930 mm Minimum plate format: 323 x 370 mm Plate thickness: 0.15 - 0.35 mm Max. feeder capacity: 110 plates(0.30 mm) or 190 plates(0.15 mm)
Poland
Luscher
XPose 3022/ 2891
2007
CTP systems
Maximum plate size: 1900 x 1485 mm Minimum plate size: 605 x 410 mm Plate thickness: 0.15 - 0.5 mm Resolution: 2400 dpi UV exposure head: 64 laser diodes Dismantled and packed
Germany
Esko
CDI Spark 2530
2017
CTP systems
Maximum plate format: 635 x 762 mm Polymer thickness: 0.76 - 3.94 mm Standard Optics: fully variable from 2000 to 2540 ppi on job-to-job base HighRes Optics: fully variable from 2540 to 4000 ppi on job-to-job base 16059 working hours Working hours laser: 1747 hours
Hungary
Kodak
Magnus VLF Quantum MTA 600
2011
CTP systems
Laser head: TH3 Resolution: 2400 dpi Maximum format: 1422 x 1804 mm Kodak APL Stacker multi cassette Kodak TIFF Speed: 41 printing plates/hour Agfa Elantric 150 SX
Romania

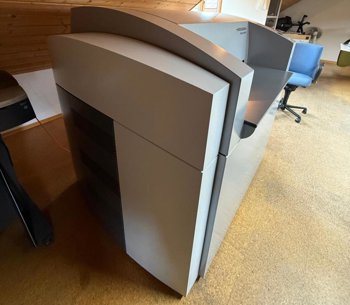

Heidelberg
Suprasetter A 52 / 75
2008
CTP systems
age 2008 CTP system for thermal plates 4 up thermal CTP system resolution 2.540 dpi max. 14 plates / hour (off load) inline plate punch HD Autoplate / Bacher 425 mm Prinect Signa Station Prinect Meta Dimension 75 online Color Proof Pro 75 Adobe PDF Print Engine Prinect PDF Toolbox incl. Trap Editor + PDF Assistand plate processor Interplatter 66 Ref: HE250149A Please ask for price. We ship and install worldwide!
Stuttgart
Deutschland
Kodak
MAGNUS CTP
2016
CTP systems
Exposure unit Processing Unit Baking Unit Final Gumming Unit
Oslo
Norway
Kodak
Magnus 400 E
2008
CTP systems
age 2008 CTP system for thermal plates 4 up thermal CTP system hand feeding plate stacker server workstation TIFF-shooter Ref: KO250106A Please ask for price. We ship and install worldwide!
StuttgartDeutschland
Heidelberg
Suprasetter A52 / A74
2007
CTP systems
Heidelberg CTP Type PJ.003.0000 Serial Number: PJ000348 Suprasetter A52/A74 Certificated : CE
Barcelona
Spain
Registar
TY-500AOL
2017
CTP systems
TY-500AOL Automatic Register Plate Puncher and Bender it can work wit multiple size plates
Terni
Italy
Kodak
Trendsetter 800
2003
CTP systems
Kodak Trendsetter 800 year 2003 size max 81×111 cm Complete with RIP
TerniItaly
Basysprint
UV Setter 741
2008
CTP systems
UV CtP System for expose conventional offset printing plates max plate size 920 x 1080mm min plate size 323 x 450mm Wave length360-450nm Flatbed system with vakuum 1-head exposure system Control PC Cooling system Plate Stacker
Minsk
Belarus
Heidelberg
Suprasetter 105
2009
CTP systems
Heidelberg Suprasetter 105 Year: 2009 plates: 292.949 with Multi Cassette Loader MCL 105 incl. extra cassette Advant Stacker PST 36-L Heidelberg Meta Shooter (RIP) 3 Laser punch included
Netherlands
Gutenberg
CTFP
2019
CTP systems
New System digital printing CTF Professional films Plate exposure screen printing film , flexography plate Transfer to textiles A3+ size colors addressed by GutenBerg RIP 4 (CMY+2xK film) Media width max 330mm (13") Ink supply build-in from bottles A4 size maximum output speed in black/color per hour 900/450/h Maximum addressed resolution 2880dpix2880dpi Maximum suggested raster line frequency for AM hybrid screening 170lpi Print repeatability in Y direction declared mechanically 0.1% (normally achieved on film 0.025%) Mechanical registration accuracy head scan direction less than 0.03mm Imaging speed for A4 size F13 test file (High quality 170lpi CMYK) 11m:14s Imaging speed for A4 size F13 test file (text quality & raster up to 60lpi) 0m:41s Machine size ready to work (High x Width x Depth) 1321x1180x765mm Additional operational space in front of machine suggested minimum 800mm Movable desktop size 950x650mm Maximum o?set plate size to UV LED copy fame 700x550mm Maximum screen frame size to UV LED copy fame 650x450x30mm size of transportation box (air & sea wooden crate) 1250x1200x800mm Transport weight of standard set 237kg Machine net weight of standard set 174kg Windows 7/8.1/10 and Mac OS x Maximum power consumption 290W Communication ports USB Maximum thickness for sheet media to digital print 350g/m2
Netherlands
Heidelberg
Supersetter 74
2006
CTP systems
Single cassette loader Stacker, RIP
France
Agfa
2008
CTP systems
MFG date: JUL 2008 Plate count: 124628 pieces 32-chanel laser diode Max. plate size: 1160 x 940 mm Min. plate size: 304 x 370 mm Plate thickness: 0.15 – 0.3 mm Resolutions: 1200/2400/2435/2540 dpi Throughput: 14 pages/hour Internal punch: Bacher 425 mm Apogee prepress V.1.46.0.18 Blower Unit Chiller AT-T8001 Bridge Azura C125 Clean Out Unit Elantrix 125 S Plate Stacker
Netherlands
Screen
2002
CTP systems
MFG date: Oct 2002 Plate count: 124276 pieces 16-chanel laser diode Max. plate size: 1160 x 940 mm Min. plate size: 450 x 370 mm Plate thickness: 0.15 - 0.3 mm Resolutions: 2400/2438/2540 dpi Throughput: 8 pages/hour Treuflow RIP SA-L8100 Autolader Imaf Plaatstacker
Germany
Agfa
Screen PT R8600M II SA
2017
CTP systems
Azura CX125 64-channel laser diodes Productivity 20 plates/hr Agfa Avalon B8-24 830 nm Thermal Laser Diodes Resolution 1200/2400/2540 dpi Maximum plate (lead edge x wrap) 1060 mm x 830 mm (41,7” x 32,7”) Minimum plate (lead edge x wrap) 450 mm x 370 mm (17,7” x 14,6”) Thickness Maximum: 0,3 mm (12 mil) Minimum: 0,15 mm (6 mil) Imaging size - max * reduced throughput - see remark on Throughput 1060 x 806 mm (grip 12/12mm) 1060 x 810 mm (grip 8/12mm) * Approved Agfa Graphics plates Azura TS, Azura TU, Azura TE, Amigo TS Thermostar P970, Energy Elite, Energy Elite Pro, Energy Elite Eco Visible in Production
TerniItaly
Presstek
Dimension 425 Excel
2010
CTP systems
Bought New 12/2011 Thermal Computer to Plate Setter Max Plate Size: 26.7" X 30.7" (68x78)cm Min Plate Size 12.6"X 9.5" (32x24)cm Plate Thicknesses: .006", .008", .012" 2540 DPI resolution
TerniItaly
