Karlville - KV-400 DSUP

Machine Description

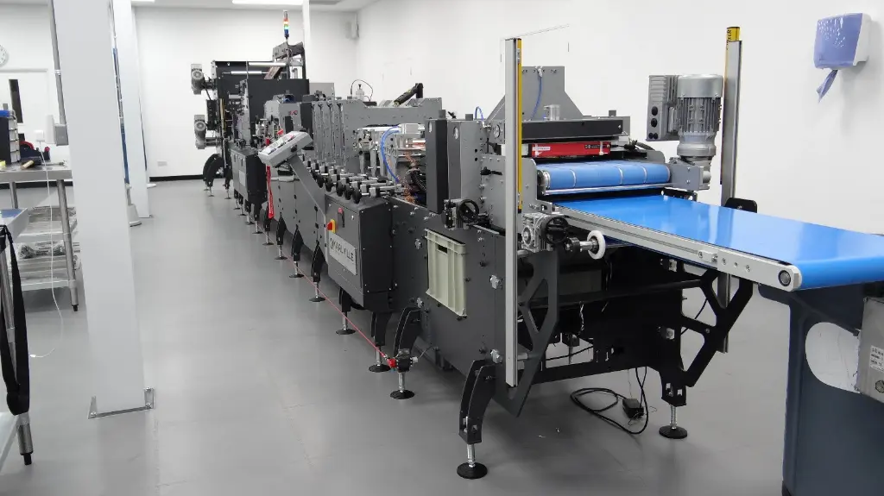

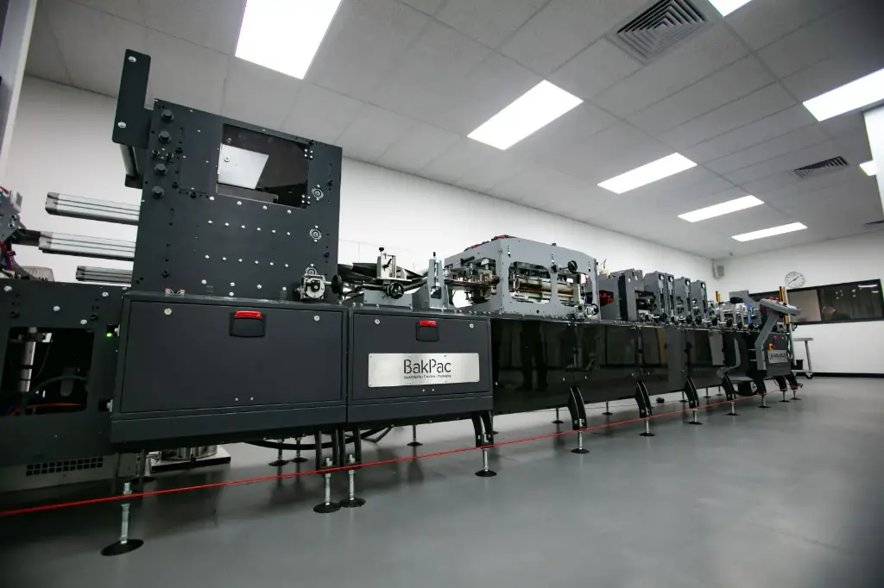

Karlville KV-400 DSUP Pouch making line.
.
Age: 2019.
.
.
.
Supports a wide variety of pouch formats including:.
.
3-side-seal pouches (from 1 or 2 webs) Stand-up pouches (from 1 or 3 webs).
.
2-side-seal pouches (from folded web) With or without zippers -.
.
Folded gussets.
.
Max Pouch Width: 400mm Max Pouch Height: 400mm Gusset Depth Range: 15–65mm.
.
.
.
.
.
Machine Specifications.
.
Max mechanical speed: 200 cpm.
.
Production speed: ~130 cpm (material dependent).
.
Max material width: 420mm.
.
Material range: PET, ALU, PE laminated with PP or PE.
.
Material thickness: 55–200 microns.
.
.
.
Included Equipment.
.
Top + bottom unwinders with pneumatic clamping.
.
Servo-driven draw, 1nip, sealing and cooling stations.
.
Bottom gusset folding and zipper unwinder.
.
Flying knife cutting system with anti-static bar.
.
Eye-mark sensor and ultrasonic edge guide.
.
Conveyor exit system.
.
Tear notch, euro hole & tack-hole punches.
.
Doy style and straight sealing dies.
.
Zipper sealing and cooling dies.
.
Multiple cross sealing dies and silicon holders.
.
.
.
Over £100k of extras included:.
.
Ultrasonic zipper crush station,.
.
vacuum punch waste removal,.
.
gusset folding upgrade, chiller, and more..
.
.
.
Additional kit on the machine:.
.
Second Longitudinal station - smaller zipper pouches and separate skirt seal for multi web pouches..
.
Additional Cross seal station for running mono materials.
.
Double cut function.
.
Additional Trim rewinder.
.
Mono Gusset Seperator.
.
Additional punch bridge
