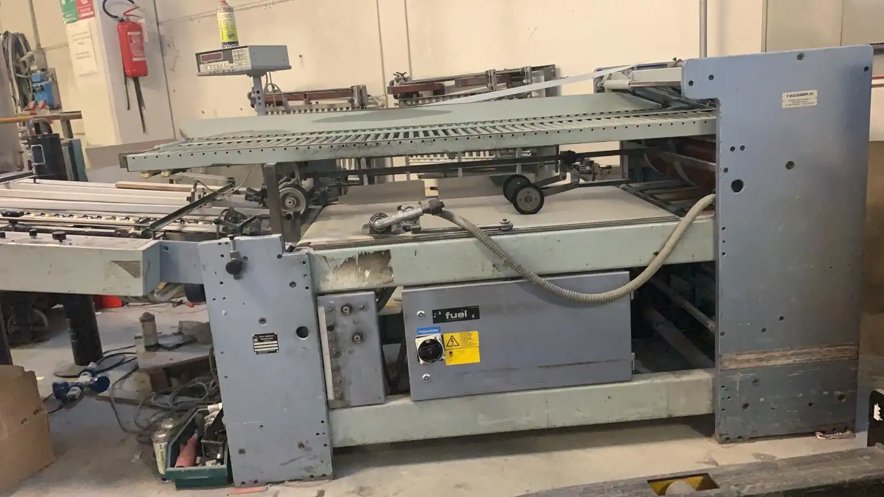

Stahl - TFU78

Key Technical Aspects:

Dimensions and Specifications :The Stahl TFU78 has a length of 13.1 feet, a width of 4.9 feet, and a height of 5.6 feet, with a total weight of approximately 11,000 pounds. It has a production capacity of up to 300 boxes per minute, depending on the box size and style.

Paper Handling :The machine features a vacuum-fed infeed system, with a maximum sheet size of 40 inches by 30 inches. It is equipped with a pre-fold section, a crash-lock bottom section, and a slotter section, allowing for precise folding and gluing of various box styles.

Printing Unit :The Stahl TFU78 does not have a built-in printing unit, as it is primarily designed for folding and gluing. However, it can be integrated with external printing systems, such as flexographic or digital printers, to provide a complete packaging solution.

Ink System :The machine does not use ink, as it is not a printing press. Instead, it relies on a gluing system to secure the folded boxes. The gluing system uses a hot melt adhesive, applied through a series of nozzles and rollers, to ensure strong and consistent bonds.

Plate Cylinder :The Stahl TFU78 features a plate cylinder with a diameter of 10.6 inches, which is used to apply pressure and ensure precise folding and gluing of the boxes. The plate cylinder is designed for high-speed production and can be easily adjusted to accommodate different box sizes and styles.
