Machine Description
We are pleased to offer:.

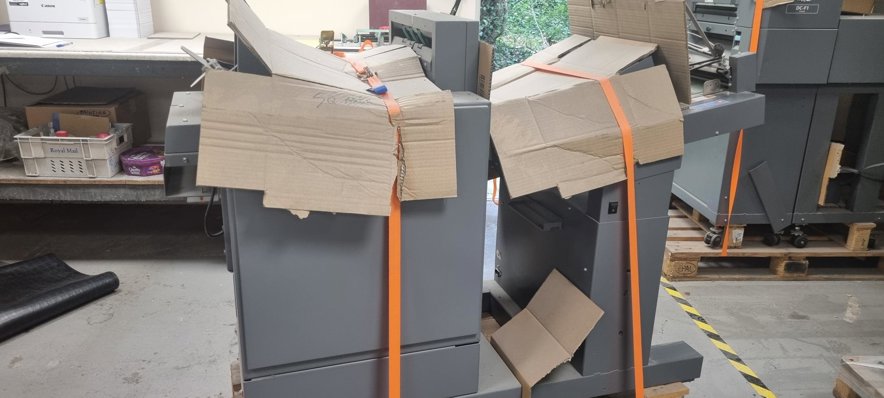

Used Duplo DC-645 DC-ST1 DC-F1 DC-SC1 Year 2012.
Specification.
The Duplo DC-645 combined with the DC-ST1 Stacker, DC-F1 Folding Unit, and DC-SC1 Sheet Feeder offers a complete, high-performance finishing solution for digital colour printing..
This configuration allows cutting, creasing, perforating, folding and stacking in one streamlined workflow, ensuring exceptional precision, speed, and repeatability for short runs and personalised work..
Overview.
The Duplo DC-645 combined with the DC-ST1 Stacker, DC-F1 Folding Unit, and DC-SC1 Sheet Feeder offers a complete, high-performance finishing solution for digital colour printing..
This configuration allows cutting, creasing, perforating, folding and stacking in one streamlined workflow, ensuring exceptional precision, speed, and repeatability for short runs and personalised work..
Included Components.
• Duplo DC-645 high-performance cutter/creaser/perforator..
• BCM-54 Business Card Module (54 mm)..
• PFM-01 Longitudinal Perforation Module..
• DC-ST1 Stacker Unit..
• DC-F1 Folding Unit..
• DC-SC1 Sheet Feeder..
• PC included..
• Barcode job control..
• Memory for up to 80 stored jobs..
Key Specifications – DC-645.
• Feeder: Suction/air with alignment..
• Formats: Max. 650 × 370 mm / Min. 210 × 210 mm..
• Paper weight: 110 – 350 gsm..
• Knives: 6 longitudinal 1 cross knife..
• Loading capacity: 100 mm..
• Max. speed: 1,500 sheets/hr (A4) / 720 sheets/hr (A3)..
• Additional features: ultrasonic double-sheet detection, print mark reading, test run programme..
• Power: 230 V / 0.3 kW..
• Dimensions: 2,240 × 750 × 1,115 mm..
• Weight: 360 kg..
Key Specifications – DC-ST1 Stacker.
• Function: Receives and stacks finished sheets directly from the DC-645 or folding unit..
• Capacity: High-capacity output stacking..
• Integration: Compatible with DC-F1 for folded output..
• Dimensions & weight: Available upon request..
Key Specifications – DC-F1.
• Speed: Up to 50 sheets/min (A4 with 1 fold)..
• Folding types: 0, 1, 2, or 3 folds..
• Paper size: Max. 370 × 650 mm..
• Paper weight: 110 – 350 gsm (max. 230 gsm for double gate fold)..
• Memory: 80 jobs..
• Dimensions: 757 × 822 × 1,493 mm..
• Weight: 95 kg..
Key Specifications – DC-SC1.
• Purpose: Intermediate feeding for multiple-up jobs from DC-645/615..
• Paper size: Max. 370 × 650 mm..
• Paper weight: 110 – 350 gsm..
• Dimensions: 701 × 558 × 1,085 mm..
• Weight: 65 kg..
Total System Weight.
520 kg (DC-645 DC-ST1 DC-F1 DC-SC1)..
Good working order.
Available immediately.
.
Read more:.
.
https://www.jerrycurtin.com/machine/en-134454/duplo-dc-645-dc-st1-dc-f1-dc-sc1...
The Duplo DC-645, combined with the DC-ST1 Stacker, DC-F1 Folding Unit, and DC-SC1 Sheet Feeder, is a high-performance post-press finishing solution designed for digital color printing applications. This integrated system delivers precision cutting, creasing, perforating, folding, and stacking in a single streamlined workflow, making it ideal for short runs and personalized print jobs. Key features include ultrasonic double-sheet detection, print mark reading, and memory for up to 80 stored jobs, ensuring exceptional accuracy, speed, and repeatability. Typical applications include business cards, brochures, flyers, and other customized print materials requiring professional finishing.
Key Technical Aspects:
Dimensions and Specifications : The Duplo DC-645 measures 2,240 × 750 × 1,115 mm (L × W × H) and weighs 360 kg. The complete system, including the DC-ST1 Stacker, DC-F1 Folding Unit, and DC-SC1 Sheet Feeder, has a total weight of 520 kg. The DC-645 operates at a maximum speed of 1,500 sheets/hour (A4) or 720 sheets/hour (A3) and requires 230 V / 0.3 kW power. The DC-F1 Folding Unit measures 757 × 822 × 1,493 mm and weighs 95 kg, while the DC-SC1 Sheet Feeder measures 701 × 558 × 1,085 mm and weighs 65 kg.
Paper Handling : The system supports sheet sizes from a minimum of 210 × 210 mm to a maximum of 650 × 370 mm, with a paper weight range of 110–350 gsm. The DC-645 features a suction/air feeder with alignment and a loading capacity of 100 mm. The DC-F1 Folding Unit accommodates up to 230 gsm for double gate folds and supports 0, 1, 2, or 3 folds at speeds up to 50 sheets/min (A4 with 1 fold). The DC-SC1 Sheet Feeder serves as an intermediate feeder for multiple-up jobs.
| Model | Duplo-DC 645 |
|---|---|
| Manufacturer | Duplo |
| Year | 2012 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Ringwood, UK |
