Machine Description
Solid board up to 0.042”.
Corrugated board (standard boxes) “B” and “E” flute.
.
Box Styles:.
Standard straight-line boxes.
Envelopes.
Double wall.
Crash lock.
4 and 6 corner.
.
Box Sizes:.
Max. width of boxes folded flat...... 15 ¾”.
Min. width of boxes folded flat....... 2”.
Max. box length.............................. 19 5/8”.
Min. box length............................... 4”.
Max. Thickness of box stream......... 3”.
.

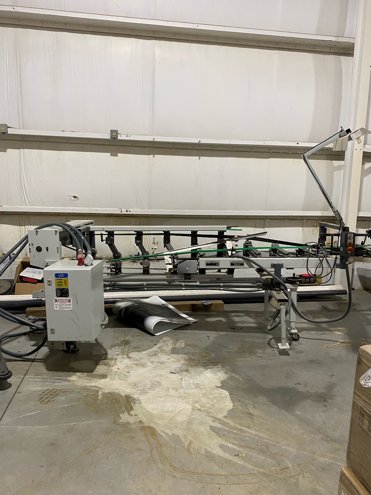

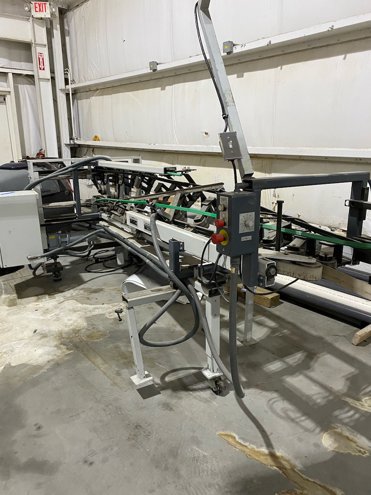

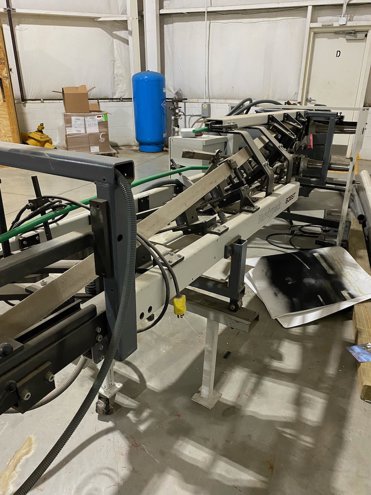

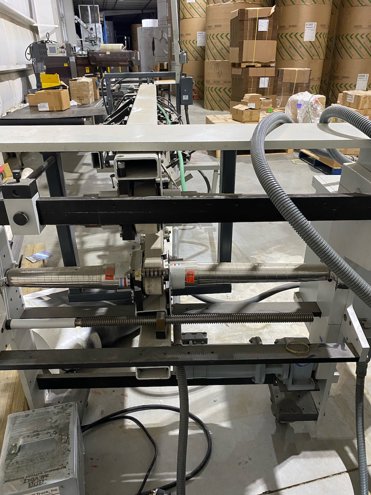

The Handypack enables the collection of various box styles. The boxes are then conveyed from the folder gluer delivery to the Handypack, rotated upright on the side edges and transported to a collection table with batch-counted boxes clearly visible for easy batch separation. The folder gluer feeder box stream regulator always maintains a constant stream..
.
The Handypack is fitted on casters and can be attached easily to the outlet of any Bobst folder gluer or other makes of folder gluers..
.
This machine version has a LEFT-HAND delivery.
| Model | Bobst-Handypack |
|---|---|
| Manufacturer | Bobst |
| Year | 2002 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | USA |
About Bobst - Handypack
The Bobst Handypack is a packaging machine that falls under the category of folder gluers, designed to produce a wide range of packaging products, including straight-line and crash-lock bottom boxes, trays, and other types of folded and glued packaging materials. Its purpose is to efficiently and accurately fold and glue packaging materials, providing a high level of precision and consistency. Key features of the Bobst Handypack include its compact design, user-friendly interface, and ability to handle a variety of paperboard and corrugated materials. The benefits of using the Bobst Handypack include increased productivity, reduced waste, and improved product quality. Typical applications of the Bobst Handypack include the production of packaging materials for the food, pharmaceutical, and cosmetic industries.
Key Technical Aspects:
Dimensions and Specifications :The Bobst Handypack has a length of 3500 mm, a width of 1500 mm, and a height of 1800 mm, with a weight of approximately 2500 kg. The machine has a production capacity of up to 200 meters per minute, depending on the specific application and material being used.
Paper Handling :The Bobst Handypack features a vacuum-fed paper handling system, with a maximum sheet size of 800 mm x 1200 mm and a minimum sheet size of 100 mm x 150 mm. The machine is equipped with a four-fold or six-fold folding system, allowing for a wide range of folding configurations.
Printing Unit :The Bobst Handypack does not have a built-in printing unit, as it is designed specifically for folding and gluing. However, it can be integrated with external printing systems, such as flexographic or offset printing units, to provide a complete packaging solution.
Ink System :The Bobst Handypack uses a hot melt glue system, with a glue tank capacity of 10 kg. The machine is equipped with a glue application system that allows for precise control over glue application, ensuring strong and consistent bonds.
Plate Cylinder :The Bobst Handypack features a plate cylinder with a diameter of 300 mm and a width of 800 mm. The plate cylinder is designed to provide accurate and consistent folding and gluing, with a quick-change system that allows for easy setup and adjustment.
