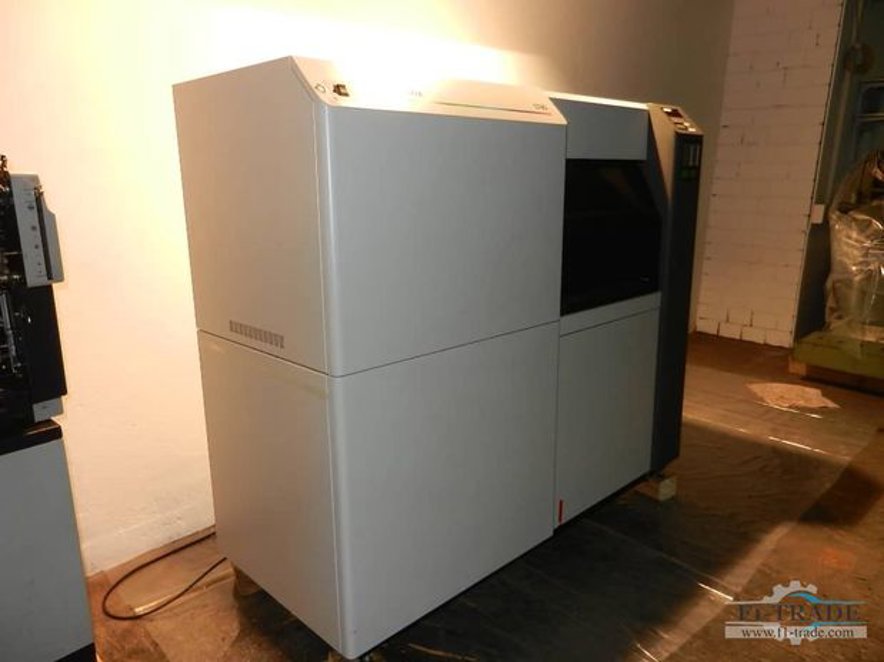

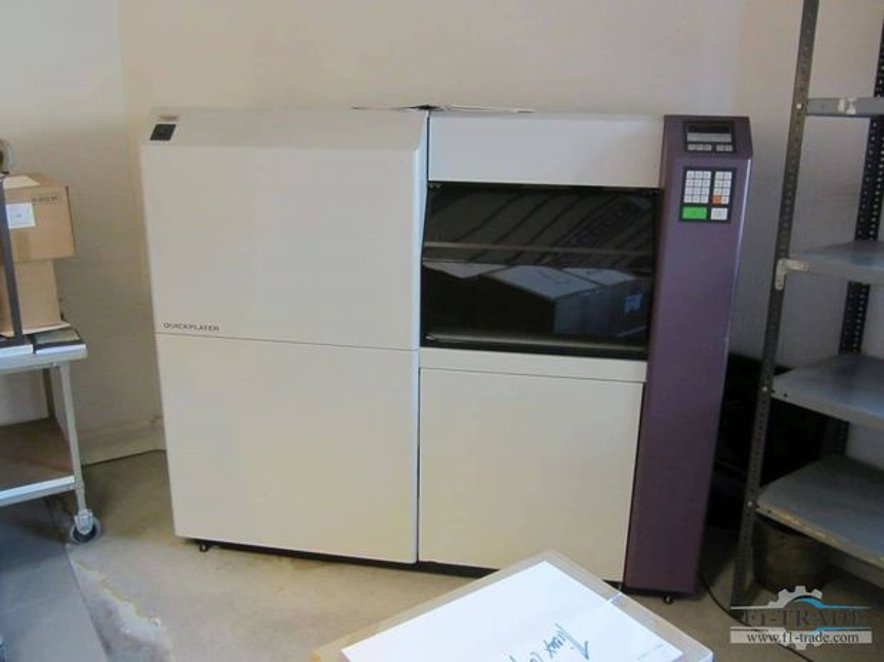

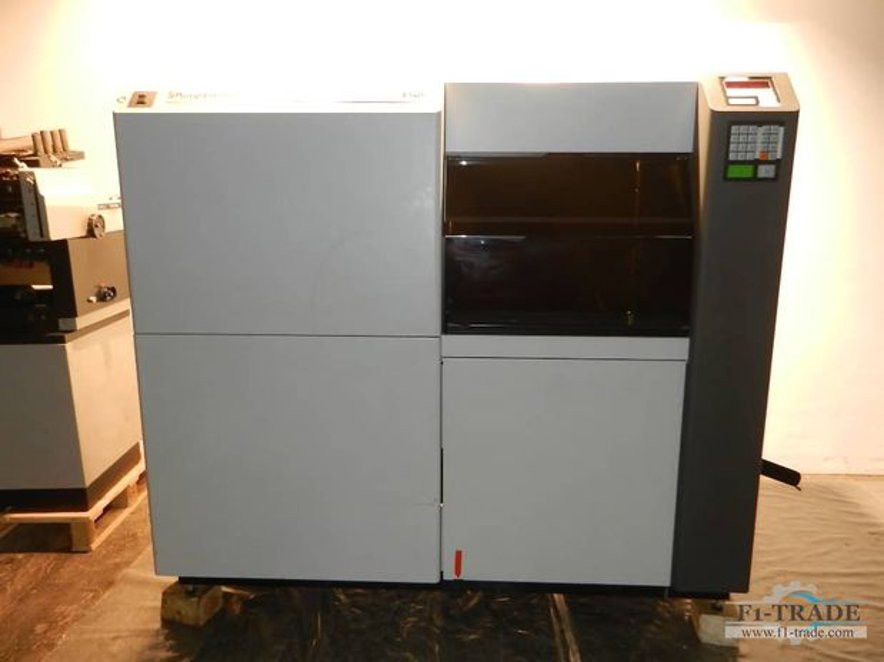

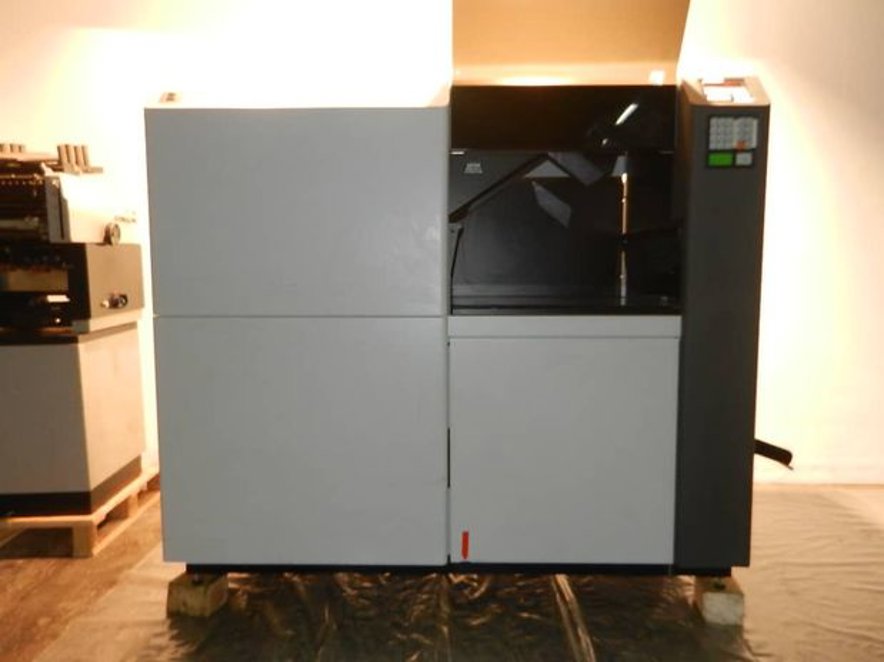

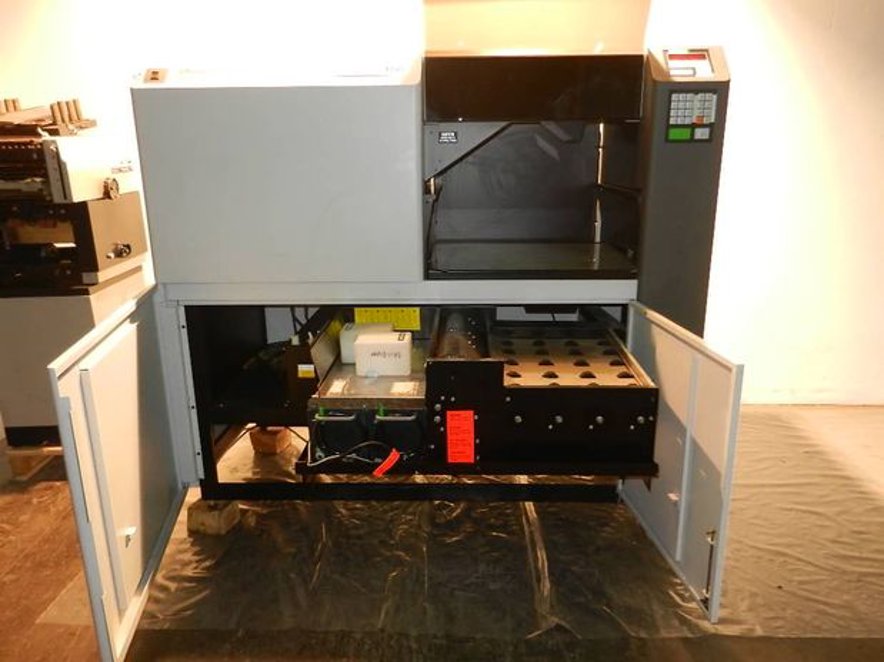

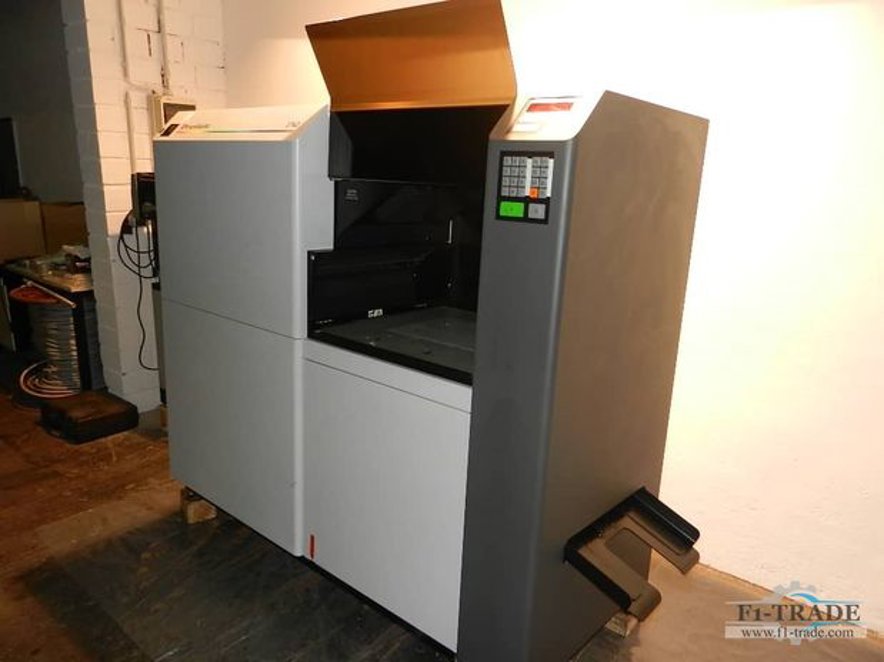

Heidelberg - Quickplater

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg Quickplater measures 2,450 mm in length, 1,450 mm in width, and 1,800 mm in height, with a weight of approximately 2,500 kg. It has a maximum plate size capacity of 1,200 mm x 900 mm.

Paper Handling : The Quickplater features an automatic plate loading system, which can handle up to 100 plates per hour. The machine is equipped with a plate cassette that can hold up to 100 plates, and it supports a wide range of plate thicknesses (0.15 mm to 0.5 mm).

Printing Unit : The Heidelberg Quickplater uses a high-resolution, 4,800 dpi laser diode imaging system, which enables precise and accurate plate imaging. The machine has a maximum imaging speed of 240 plates per hour, with a resolution of 2,400 dpi.

Ink System : The Quickplater does not use ink, as it is a plate imaging device that produces printing plates rather than printed materials.

Plate Cylinder : The plate cylinder is a critical component of the Quickplater, as it holds the printing plate in place during the imaging process. The plate cylinder is designed for precise registration and features a vacuum system to ensure accurate plate positioning.
