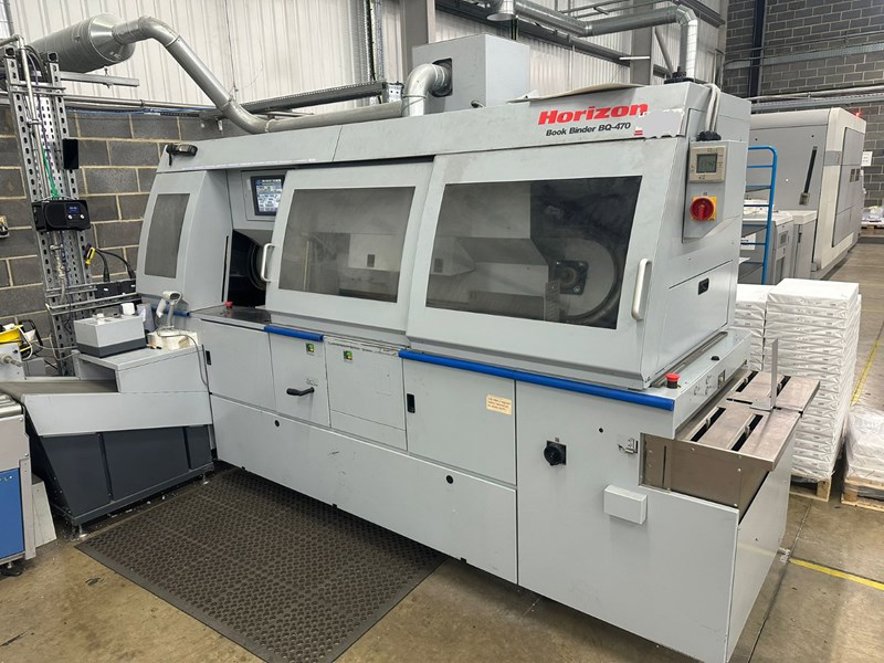

Horizon - BQ 470

Perfect binder lines Horizon BQ 470

Machine Description

1.6 million books.
Perfect binder designed for operation by one person with touch-screen control panel for easy set-up..
Comprising:.
BQ-470 binder with hand feed station and 4 clamps.
Height adjustable LCD colour touchscreen for full automation of the following areas:.
Main clamp book width.
Milling head.
Spine glue length.
Cover size & scoring.
Cover nipping unit.
Book delivery width.
Milling & roughing unit with dust bag extraction.
EVA spine gluing tank.
EVA hotmelt side gluing discs with glue length cut-off.
Auto suction cover feeder with scoring and double sheet detection.
Improved delivery table for gentle handling of bound books..
Including tools & manuals..
Accessories:.
Auto caliper book measuring device, for quicker make-ready and size change on the fly.
Barcode reader for personalised books.
Specification:.
Book size, Max: 320 x 320 mm.
Min: 145 x 105 mm.
Open cover size, Max: 320 x 670 mm.
Min: 135 x 225 mm.
Book thickness : 1 to 65 mm.
Mechanical speed, Max: 1,350 cycles/hr..
Including accessories, tools & manuals.

ModelHorizon-BQ 470
ManufacturerHorizon
Year2015
Machine AvailabilityImmediately from stock
Machine ConditionIn Stock
PriceOn Request
LocationUnited Kingdom

About Horizon - BQ 470

The Horizon BQ 470 is a high-performance perfect binder designed for high-volume bookbinding and finishing applications. This machine is ideal for commercial printers, binderies, and digital printers looking to produce high-quality perfect bound books, catalogs, and manuals. The BQ 470 offers advanced features, precision engineering, and exceptional reliability, making it an excellent choice for demanding production environments. Its key benefits include high-speed production, precise binding, and versatility in handling a wide range of paper sizes and thicknesses.

Key Technical Aspects:

Dimensions and Specifications : The Horizon BQ 470 measures 144.5 inches (367 cm) in length, 43.3 inches (110 cm) in width, and 67.3 inches (171 cm) in height. It weighs approximately 4,400 pounds (2,000 kg) and has a maximum binding capacity of 2.5 inches (6.4 cm) thick.

Paper Handling : The BQ 470 features a high-capacity paper feeding system with a maximum sheet size of 14.33 inches x 20.47 inches (364 mm x 520 mm) and a minimum sheet size of 5.83 inches x 8.27 inches (148 mm x 210 mm). It has a 30-station gathering chain and a 10-station fine-tuning chain, allowing for precise control over the binding process.

Printing Unit : Not applicable, as the Horizon BQ 470 is a perfect binding machine and does not have a printing unit.

Ink System : Not applicable, as the Horizon BQ 470 is a perfect binding machine and does not use ink.

Plate Cylinder : Not applicable, as the Horizon BQ 470 is a perfect binding machine and does not use a plate cylinder.
