Horizon - BQ-270C

Machine Description

We are pleased to offer:.

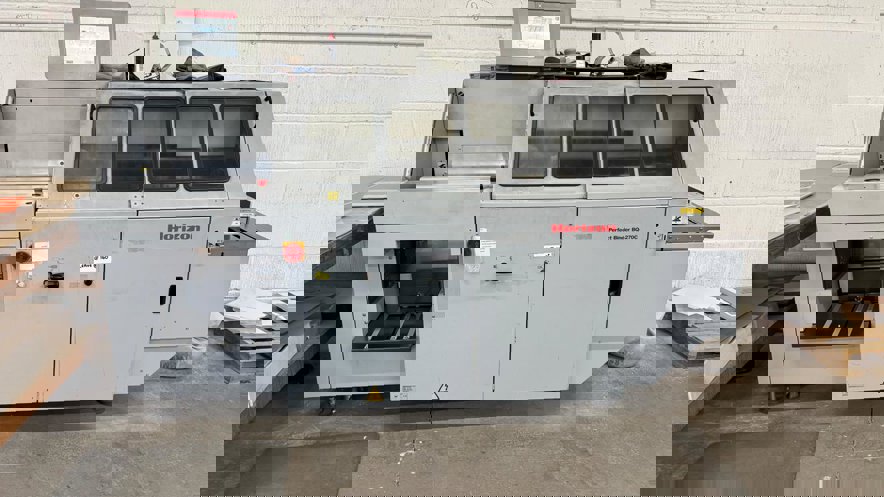

Used Horizon BQ-270C (1 Clamp, Perfect Binder).
Year 2012.
Specification.
The Horizon BQ-270C (2012) is a fully automatic single-clamp perfect binder designed for the efficient production of high-quality paperback books with clean, consistent spine preparation. It is ideal for commercial printers, digital print providers and finishing departments requiring flexibility, reliability and medium-run productivity..
Equipped with a 10.4” colour touchscreen control panel, the machine allows quick job set-up, automatic thickness measurement and storage of production presets, ensuring fast changeovers between formats with minimal operator intervention..
The BQ-270C integrates automatic spine milling, glue application (spine and side gluing), cover feeding and nipping section to guarantee strong binding quality and professional finishing results. Its robust industrial construction makes it a reliable and cost-effective solution in the used machinery market..
.
Binding type: Perfect binding with milling, without milling, and padding mode.
Number of clamps: 1 automatic clamp.
Maximum book block size: 320 × 320 mm.
Minimum book block size: 135 × 105 mm.
Book block thickness: 1 – 50 mm.
Maximum cover size: 320 × 660 mm.
Minimum cover size: 135 × 230 mm.
Cover Weight range: 82 – 302 gsm.
Maximum cover pile height: Max. 70 mm.
Maximum mechanical speed: Up to 500 cycles per hour (depending on format and thickness).
Automatic book thickness measurement.
Maximum milling depth: 3 mm.
Warm-up time: 60 minutes.
Power consumption: Approx. 2.7 – 3.1 kW.
Electrical requirement: 400V / 50 Hz (subject to configuration).
Approximate dimensions (L × W × H): 2,300 × 950 × 1,500 mm.
Weight: Approx. 900 – 980 kg.
Good working order.
Available immediately...
