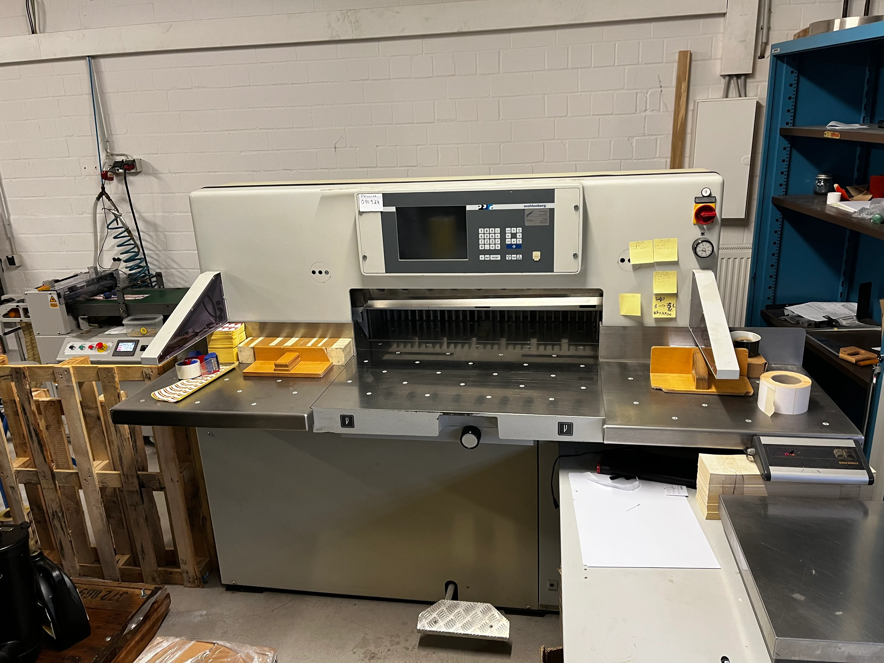

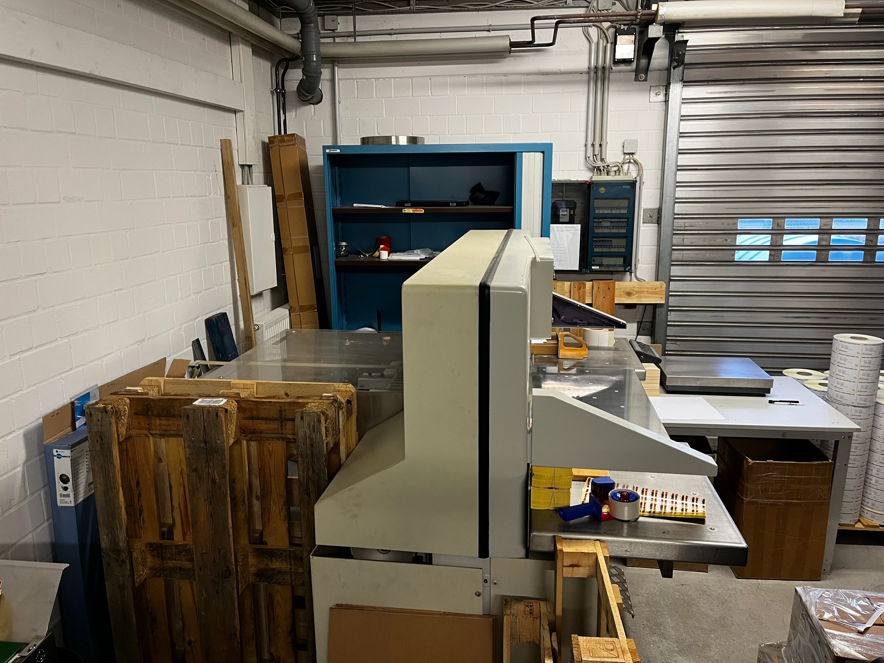

Wohlenberg - 92

Key Technical Aspects:

Dimensions and Specifications : The Wohlenberg 92 has a machine length of 145 inches (3680 mm), a machine width of 43 inches (1090 mm), and a machine height of 63 inches (1600 mm). The machine weighs approximately 4,400 pounds (2,000 kg) and has a maximum cutting width of 36 inches (914 mm).

Paper Handling : The Wohlenberg 92 features a high-capacity paper handling system with a maximum pile height of 25 inches (635 mm) and a sheet size range of 6 x 9 inches to 36 x 45 inches (152 x 229 mm to 914 x 1143 mm). The machine is equipped with a precision air-suction feed system and a programmable sheet deceleration system for accurate sheet alignment and registration.

Cutting Unit : The cutting unit of the Wohlenberg 92 is equipped with a high-speed cutting knife that can reach speeds of up to 1,500 cycles per hour. The machine features a precision cutting system with a cutting accuracy of ±0.01 inches (±0.25 mm) and a maximum cutting thickness of 2 inches (51 mm).

Control System : The Wohlenberg 92 is equipped with a user-friendly control system featuring a 10.4-inch color touchscreen display and a programmable job memory for storing and recalling repeat jobs. The machine also features a range of automated settings and adjustments for easy operation and maintenance.

Safety Features : The Wohlenberg 92 is designed with operator safety in mind, featuring a range of safety features including a safety light curtain, emergency stop buttons, and a lockout/tagout system for maintenance and repair.
