Paper converting machines Jiangsu Fangbang Machinery Co., Ltd ZD-QFP 18

Machine Description

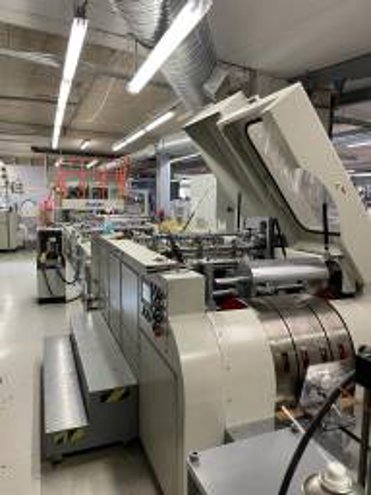

Sheet Fed SOS Bag Making Machine with twisted rope handle.
comes with:.
- Slitter and Rewinder.
- Twisted rope making machine.
- Twisted rope winding machine.
.
Mfgr : Jiangsu Fangbang Machinery Co., Ltd.
Model : ZD-QFP 18.
Type : Sheet Fed.
Mfg year : 2017.
Status : Under operation.
Availability : TBA.
.
Size range.
Sheet Width : 830 – 1250 mm.
Sheet Length : 340 – 630 mm.
Basic Weight (gsm) : 100 – 220 gsm.
.
Tube Width : 220 – 450 mm.
Bottom Width : 70 – 170 mm.
Tube Length : 250 – 480 mm.
Top Fold : 40 – 80 mm.
Note : Bag sizes are subject to be limited with combination..
.
Handle Patch Width : 40 – 50 mm.
Handle Patch Length : 188.5 mm.
Patch Paper Roll GSM : 100 – 250 gsm.
Handle Rope Height : 170 – 185 mm.
Handle Rope Ø : 4 – 8 mm Ø.
.
Mech. Max Speed : 80 bags/min..
.
All machine or equipment is offered as is where is with all faults without warranty and is subject to prior sales..
.
All information provided in this offer is from the source(s), which is/are deemed reliable and trusted..

ModelJiangsu Fangbang Machinery Co., Ltd-ZD-QFP 18
ManufacturerJiangsu Fangbang Machinery Co., Ltd
Year2017
Machine AvailabilityLess than 30 days
Machine ConditionIn Production
PriceOn Request
LocationEurope

About Jiangsu Fangbang Machinery Co., Ltd - ZD-QFP 18

The Jiangsu Fangbang Machinery Co., Ltd ZD-QFP 18 is a high-performance flexographic printing machine designed for the packaging industry. This machine is categorized as a narrow-web flexo press, ideal for printing on a variety of materials such as plastic films, paper, and laminates. The ZD-QFP 18 is equipped with advanced features that provide excellent print quality, high productivity, and ease of operation. Its benefits include fast changeovers, reduced waste, and low maintenance costs, making it an ideal solution for printing labels, flexible packaging, and other narrow-web applications.

Key Technical Aspects:

Dimensions and Specifications : The ZD-QFP 18 has a machine length of 6,500 mm, a machine width of 1,800 mm, and a machine height of 1,900 mm. It weighs approximately 4,500 kg and has a maximum printing speed of 200 meters per minute. The machine is capable of handling a maximum web width of 450 mm and a minimum web width of 100 mm.

Paper Handling : The ZD-QFP 18 features a 6-spindle unwinding system with a maximum unwind diameter of 1,000 mm and a maximum unwind weight of 1,500 kg. The machine is equipped with a servo-driven rewinding system with a maximum rewind diameter of 800 mm and a maximum rewind weight of 1,000 kg. It also features a web guiding system with automatic tension control.

Printing Unit : The ZD-QFP 18 is equipped with 8 printing units, each with a maximum printing width of 450 mm. The machine uses a UV flexographic printing technology with a printing resolution of 2,540 dpi. The printing speed can reach up to 200 meters per minute, and the machine is capable of printing up to 8 colors.

Ink System : The ZD-QFP 18 uses a UV ink system with 8 ink channels, each with a capacity of 10 kg. The machine features an automatic ink supply system and an ink recycling system to minimize ink waste.

Plate Cylinder : The ZD-QFP 18 features a 450 mm diameter plate cylinder with a repeat length of 300-600 mm. The plate cylinder is designed for easy plate mounting and demounting, and it features a pneumatic clamping system for secure plate holding.
