Machine Description
Configuration: Single-color automatic cylinder letterpress / die-cutting press..
Model: Heidelberg Cylinder SBG..
Year: 1962..
Max paper size: 56 x 77 cm (22 x 30 inches)..
Min paper size: 21 x 28 cm..
Max printing / die-cutting area: approximately 54 x 76 cm..
Printing system: Automatic cylinder letterpress printing and die-cutting system with reciprocating flat bed and impression cylinder..
Inking system: Oscillating cylinder inking unit with multiple distribution rollers (printing versions)..
Form locking: Standard Heidelberg cylinder chase locking system..
Max speed: up to 4,600 sheets / hour..
Feeder type: Automatic single-sheet feeder with mechanical gripper transport system..
Delivery system: High pile delivery with continuous automatic sheet output..
Substrate thickness: approximately 0.04 mm up to 0.60 mm..
Registration: High-precision mechanical grippers and side lays for accurate sheet alignment..
Applications: Letterpress printing, die-cutting, embossing, creasing, perforating, numbering, foil stamping, and packaging production..
Drive system: Heavy-duty mechanical cylinder drive with flywheel transmission..
Control system: Electromechanical operator controls with manual pressure and ink adjustment..
Machine dimensions (L x W x H): approximately 3.50 m x 2.00 m x 1.85 m..
Total weight: approximately 5,300 kg..
Power consumption: approximately 5.5–6.5 kW (three-phase industrial supply)....

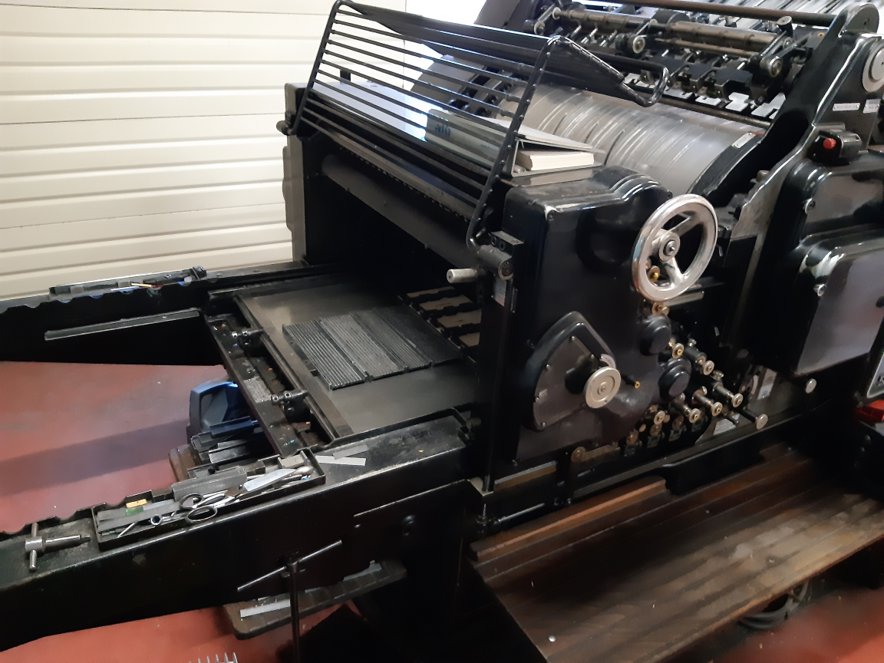

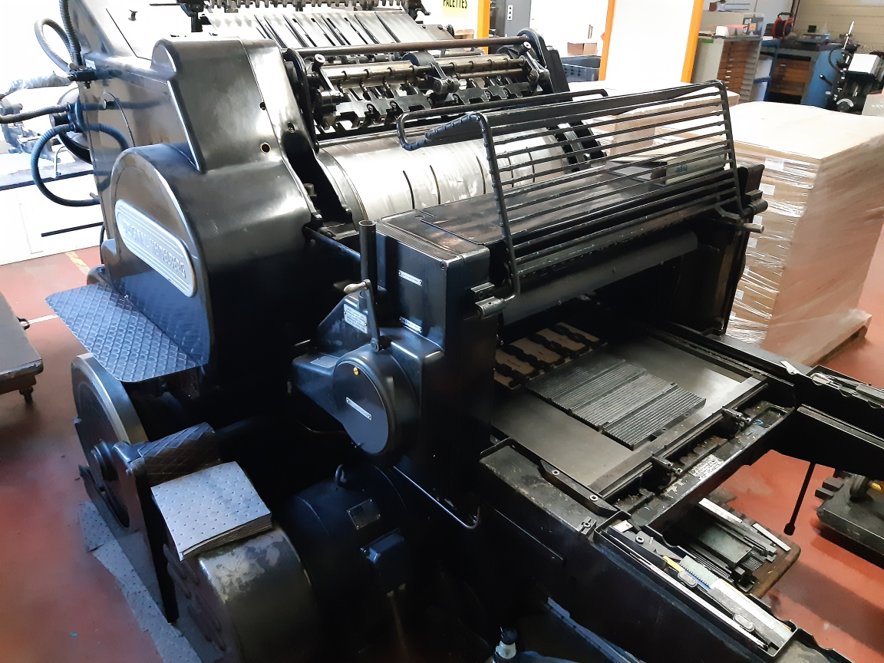

The Heidelberg SBG is a robust single-color automatic cylinder letterpress and die-cutting press designed for high-precision packaging production. Manufactured in 1962 by Heidelberg, this versatile machine combines letterpress printing with advanced die-cutting capabilities, making it ideal for applications such as embossing, creasing, perforating, numbering, foil stamping, and general packaging tasks. Known for its durability and mechanical precision, the SBG model delivers reliable performance with a maximum speed of up to 4,600 sheets per hour, ensuring efficiency in high-volume production environments. Its heavy-duty construction, high-precision registration, and automatic sheet handling system make it a valuable asset for businesses requiring consistent quality and operational reliability.
Key Technical Aspects:
Dimensions and Specifications : The Heidelberg SBG has overall machine dimensions of approximately 3.50 meters in length, 2.00 meters in width, and 1.85 meters in height, with a total weight of around 5,300 kg. It operates on a three-phase industrial power supply with a consumption range of 5.5–6.5 kW. The drive system features a heavy-duty mechanical cylinder drive with flywheel transmission, ensuring smooth and consistent operation. The control system is electromechanical, allowing for manual pressure and ink adjustments.
Paper Handling : The SBG is equipped with an automatic single-sheet feeder featuring a mechanical gripper transport system for precise sheet alignment. It supports a maximum paper size of 56 x 77 cm (22 x 30 inches) and a minimum paper size of 21 x 28 cm, with a substrate thickness range of approximately 0.04 mm to 0.60 mm. The high pile delivery system ensures continuous automatic sheet output, while high-precision mechanical grippers and side lays maintain accurate registration throughout the production process.
Printing Unit : The printing system operates as an automatic cylinder letterpress and die-cutting press, utilizing a reciprocating flat bed and impression cylinder configuration. The maximum printing and die-cutting area is approximately 54 x 76 cm. The machine supports a variety of applications, including letterpress printing, die-cutting, embossing, creasing, perforating, numbering, and foil stamping, making it highly adaptable for diverse packaging production needs.
Ink System : The inking system features an oscillating cylinder unit with multiple distribution rollers, ensuring consistent ink application for high-quality printing results. This setup is specifically designed for letterpress printing versions, providing reliable performance and ease of maintenance.
Plate Cylinder : The SBG employs the standard Heidelberg cylinder chase locking system for secure plate mounting. This system ensures precise form locking, contributing to the machine's high-accuracy printing and die-cutting capabilities.
| Model | Heidelberg-SBG |
|---|---|

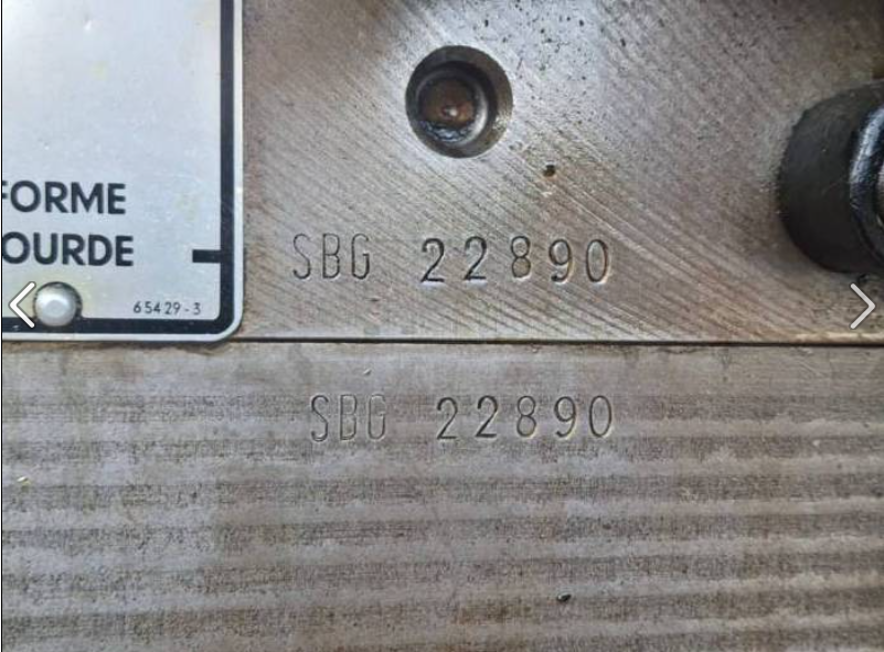

| Reference Number | 22890 |
| Manufacturer | Heidelberg |
| Year | 1962 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | 11000.00 EUR |
| Location | 103 Rue des Écoles, 38121 Reventin-Vaugris, France |
Special Features
- Equipped with feeder & stripping unit
