Machine Description

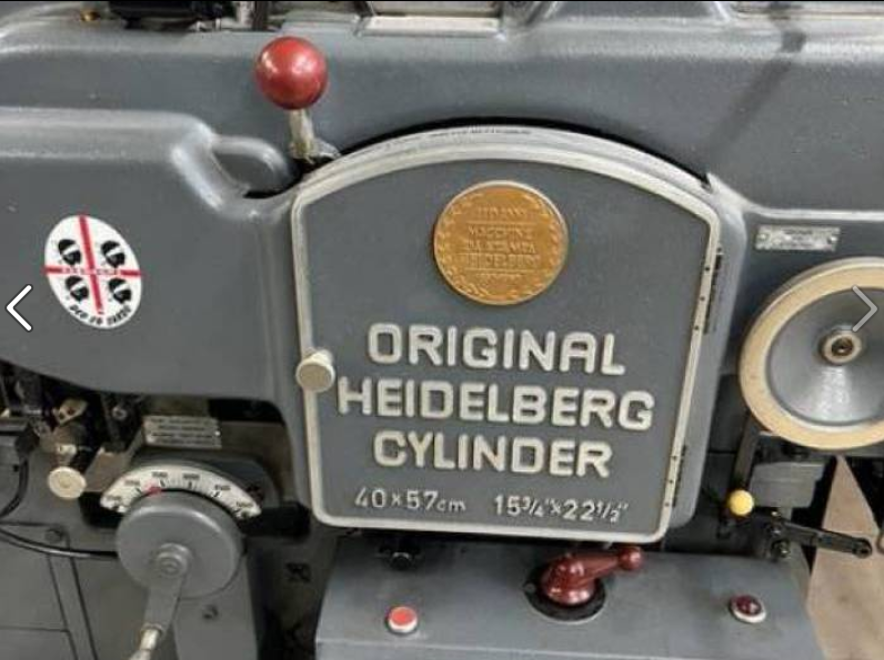

Configuration: Cylinder letterpress (Original Heidelberg Cylinder)..
Year: 1963..
Max paper size: 40 x 57 cm (15.75 x 22.5 inches)..
Min paper size: 13 x 18 cm..
Max printing size: 38 x 55 cm..
Inking system: Large ink fountain with multiple distribution and form rollers..
Form locking: Traditional chase and furniture system..
Max speed: 5,000 sheets / hour..
Inking control: Manual screw adjustment on the ink duct..
Washing devices: Manual..
Powder spray system: Optional (usually Weko)..
Delivery capacity: Standard high pile delivery..
Substrate thickness: 0.04 mm to 0.70 mm (excellent for heavy cardboard and die-cutting)..
Registration: High-precision mechanical grippers and side lays..
Total weight: approximately 3,500 kg (7,716 lbs)..
Machine dimensions (L x W x H): 2.70 m x 1.45 m x 1.50 m..
Power consumption: approximately 3.0 kW to 4.0 kW....

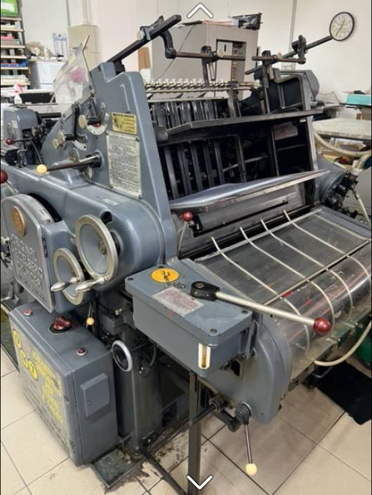

The Heidelberg KSB Cylinder 40x57 Hot Foil is a high-precision cylinder letterpress machine designed for packaging applications, renowned for its durability and versatility. Built in 1963, this robust press excels in hot foil stamping, die-cutting, and heavy cardboard printing, making it ideal for luxury packaging, labels, and specialty print jobs. Key features include a large ink fountain, manual ink control, and high-precision mechanical registration, ensuring consistent quality and efficiency. With a maximum speed of 5,000 sheets per hour and compatibility with substrates ranging from 0.04 mm to 0.70 mm, it delivers exceptional performance for demanding production environments.
Key Technical Aspects:
Dimensions and Specifications : The Heidelberg KSB Cylinder 40x57 Hot Foil has a total weight of approximately 3,500 kg (7,716 lbs) and occupies floor space of 2.70 m (L) x 1.45 m (W) x 1.50 m (H). It operates with a power consumption of 3.0 kW to 4.0 kW and is equipped with an optional powder spray system (typically Weko) and a standard high-pile delivery unit.
Paper Handling : This machine accommodates a maximum paper size of 40 x 57 cm (15.75 x 22.5 inches) and a minimum paper size of 13 x 18 cm. It supports substrate thicknesses ranging from 0.04 mm to 0.70 mm, making it suitable for heavy cardboard and die-cutting applications. High-precision mechanical grippers and side lays ensure accurate registration during operation.
Printing Unit : Configured as a cylinder letterpress, the KSB Cylinder 40x57 achieves a maximum printing size of 38 x 55 cm. It operates at speeds up to 5,000 sheets per hour and features a traditional chase and furniture system for form locking. The machine includes manual washing devices and optional UV/Eko dryer units for enhanced finishing capabilities.
Ink System : The press is equipped with a large ink fountain featuring multiple distribution and form rollers. Ink control is managed through manual screw adjustments on the ink duct, ensuring precise ink application for consistent print quality.
| Model | Heidelberg-KSB Cylinder 40x57 Hot Foil |
|---|---|
| Reference Number | 311191 |
| Manufacturer | Heidelberg |
| Year | 1963 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | 9000.00 EUR |
| Location | 103 Rue des Écoles, 38121 Reventin-Vaugris, France |
Special Features
- EMA UV Eko dryer
- Tape Head Units: 2 pieces
