Sinajet - DG 2516

Machine Description

We are pleased to offer:.

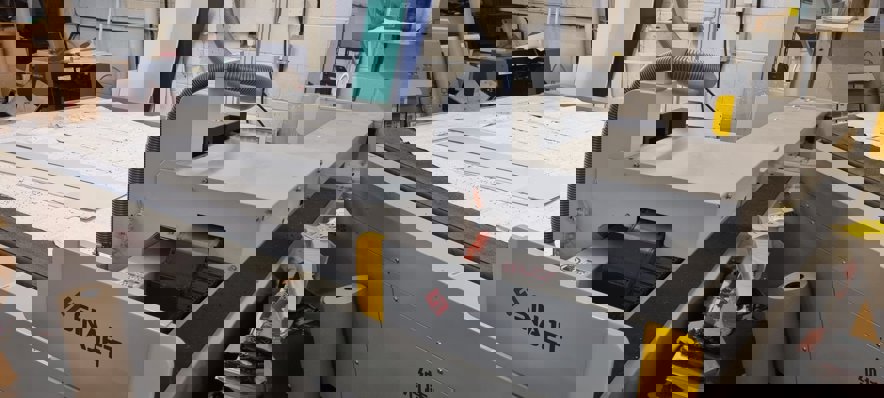

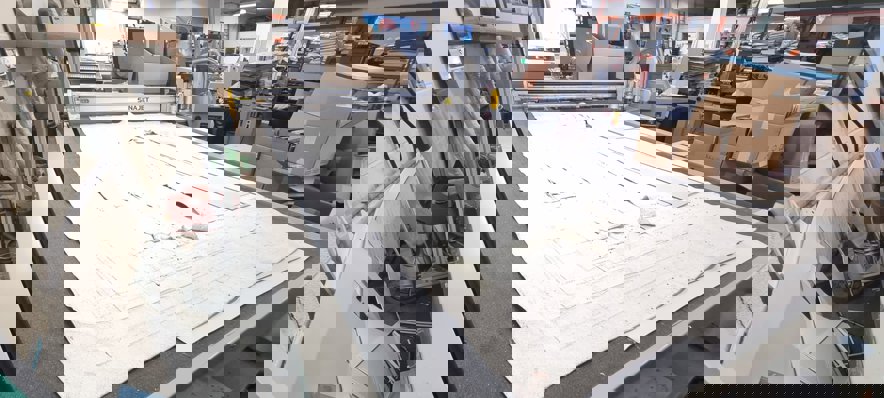

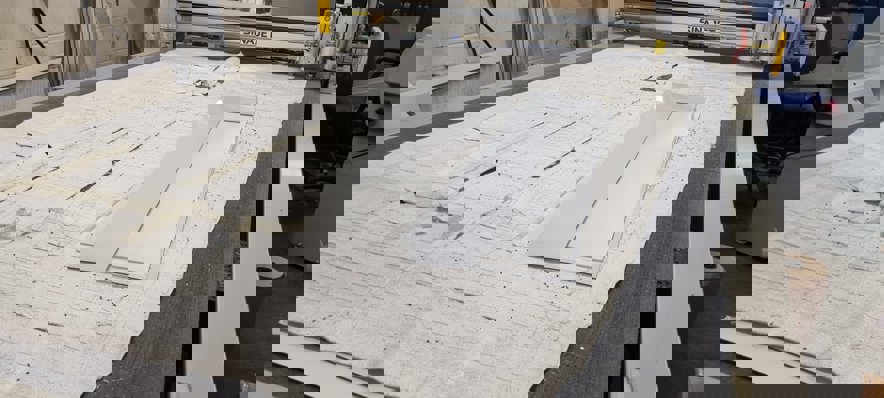

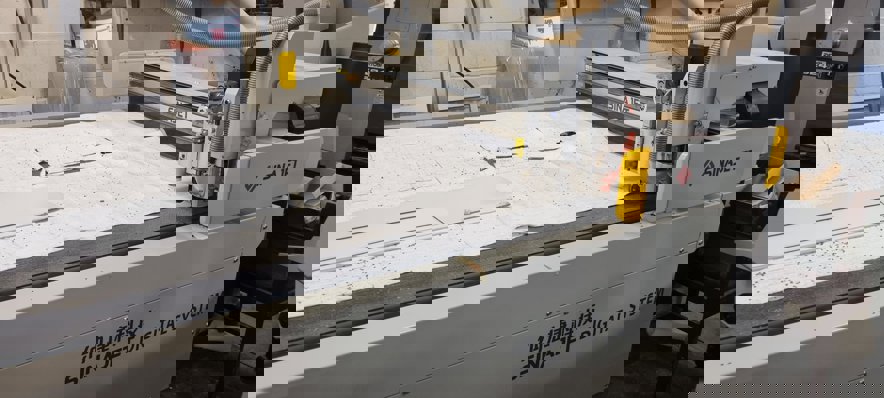

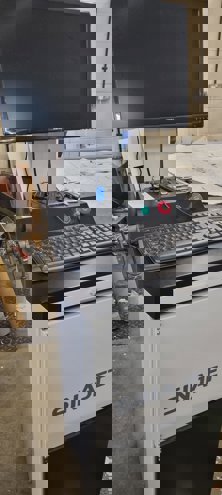

Used SINAJET DG 2516 Digital Cutter Year 2016.
Specification.
The Sinajet DK 2516 Digital Cutter (2016) is a professional large-format cutting solution, designed for precision and versatility across a wide range of applications. Featuring a vacuum table for stable material handling and software-controlled operation, it ensures consistent, accurate results while optimising production efficiency..
.
With a working area of 2,500 mm x 1,300 mm and the capability to process materials up to 25 mm thick, the DK 2516 provides exceptional flexibility for industries such as packaging, signage, display, and textile production. Its digital workflow eliminates the need for traditional die-cutting, making it ideal for both short-run and medium-volume production..
Material fixing: Vacuum.
Working Area: 2,500 × 1,300 mm.
Minimum Sheet Size: 210 × 297 mm (A4).
Maximum Cutting Speed: 1,800 mm/s.
Maximum Cutting Depth: ≤25 mm (with oscillating/routing tool).
Repeat Accuracy: ±0.1 mm.
Tools: Circular knife, drag knife, crease wheel, kiss-cut knife, V-cut knife, oscillating knife (optional), CNC router (optional).
Blade Options: More than 100 available.
Software: Sinajet Control Centre.
Cutting Media: Stickers, PVC, KT board, foamed PVC, acrylic sheets, corrugated board, honeycomb board, MDF, Dibond, textiles, labels, banners, and more..
.
Power Consumption: 9,000 W.
Working Voltage: 220V /380V / 50-60 Hz.
Working Environment: Temperature 0-40 °C, Humidity 20% - 80 % No condensation.
Overall Dimensions: 3,418 × 2,402 × 1,200 mm.
Gross Machine Weight: 745 kg.
Good working order.
Available immediately.
.
