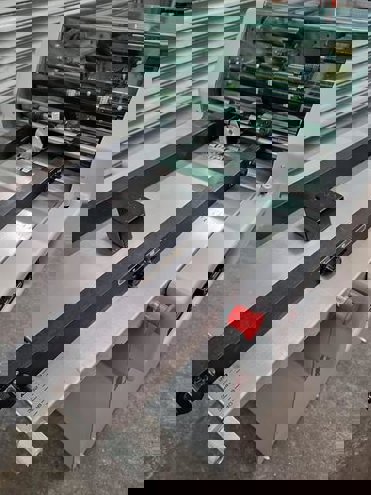

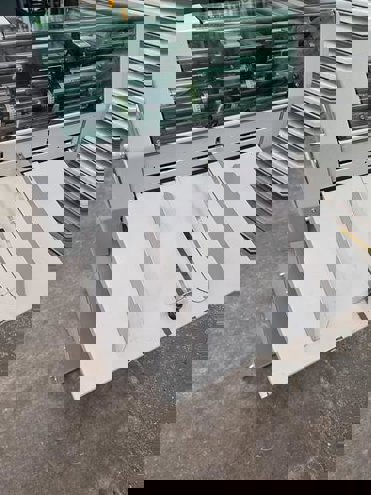

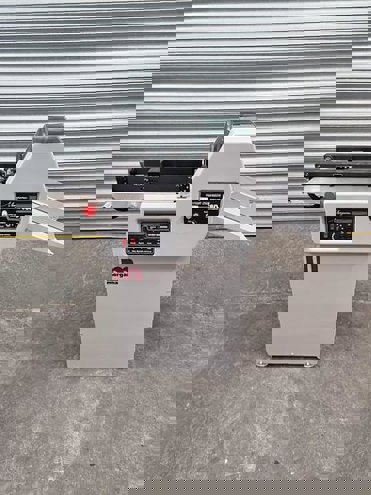

Morgana - FSN MK2

Key Technical Aspects:

Dimensions and Specifications : The Morgana FSN MK2 has a compact footprint of 55.1 inches (1400 mm) in length, 29.5 inches (750 mm) in width, and 43.3 inches (1100 mm) in height. It weighs approximately 1,323 pounds (600 kg) and has a maximum sheet size capacity of 29.5 inches x 20.5 inches (750 mm x 520 mm).

Paper Handling : The FSN MK2 features a high-capacity feed tray that can hold up to 500 sheets of paper, and a delivery tray that can accommodate up to 1,000 folded and creased sheets. The machine is equipped with advanced paper handling features, including a vacuum-fed feed system, adjustable sheet guides, and a precision-controlled creasing and folding mechanism.

Folding and Creasing Unit : The Morgana FSN MK2 is capable of producing up to 6,000 folded and creased sheets per hour, with a maximum folding speed of 120 sheets per minute. The machine features a precision-controlled creasing system that can handle paper stocks up to 0.015 inches (0.38 mm) thick, and a folding system that can produce a variety of fold types, including letter folds, accordion folds, and gate folds.

Creasing System : The FSN MK2's creasing system features a high-pressure creasing tool that applies up to 2,000 pounds per square inch (psi) of pressure, ensuring crisp, accurate creases on a wide range of paper stocks. The machine also features an adjustable creasing depth control, allowing for precise control over the creasing process.

Control and Operation : The Morgana FSN MK2 is equipped with an intuitive touchscreen control panel that allows for easy operation and setup. The machine features a range of automated settings and adjustments, including automatic sheet detection, automatic fold plate setting, and automatic creasing depth control.
