Machine Description
Configuration: 2-color cylinder letterpress machine..
Year: 1965..
Max paper size: 46 x 58.5 cm (18 x 23 inches)..
Min paper size: 14 x 18 cm..
Max printing size: 43.5 x 57 cm..
Inking system: Two separate inking units with dual distribution and form rollers..
Form locking: Standard letterpress chases for two separate forms..
Max speed: 5,000 sheets / hour..
Inking control: Manual screw adjustment on both ink ducts..
Washing devices: Manual..
Powder spray system: Optional (standard on printing models)..
Delivery capacity: High pile delivery..
Substrate thickness: 0.04 mm to 0.70 mm..
Registration: High-precision mechanical grippers designed for multi-color registration..
Total weight: approximately 5,500 kg (significantly heavier than the single-color version)..
Machine dimensions (L x W x H): approximately 3.50 m x 1.55 m x 1.70 m..
Power consumption: approximately 5.5 kW to 7 kW....

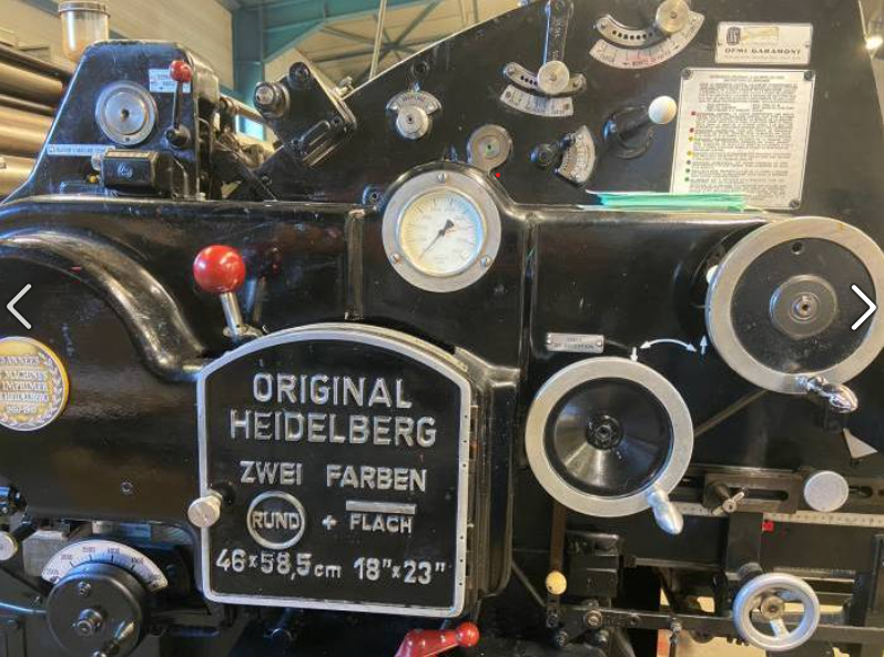

The Heidelberg Cylinder KSBAZ is a robust 2-color cylinder letterpress machine manufactured in 1965, designed for high-quality commercial printing applications. Renowned for its precision engineering and durability, this machine features dual inking units, high-precision mechanical grippers, and a maximum printing speed of 5,000 sheets per hour. Ideal for producing multi-color letterpress prints, packaging materials, and specialty publications, the KSBAZ offers exceptional registration accuracy and versatility in substrate handling, making it a reliable choice for professional printing operations.
Key Technical Aspects:
Dimensions and Specifications : The Heidelberg Cylinder KSBAZ has a total weight of approximately 5,500 kg and machine dimensions of 3.50 m (L) x 1.55 m (W) x 1.70 m (H). It operates with a power consumption ranging from 5.5 kW to 7 kW, making it a substantial yet efficient industrial printing solution.
Paper Handling : This machine accommodates a maximum paper size of 46 x 58.5 cm (18 x 23 inches) and a minimum paper size of 14 x 18 cm. It supports substrate thicknesses from 0.04 mm to 0.70 mm and features a high-pile delivery system for efficient output handling.
Printing Unit : The KSBAZ is a 2-color cylinder letterpress machine with a maximum printing size of 43.5 x 57 cm. It achieves a maximum speed of 5,000 sheets per hour and utilizes high-precision mechanical grippers for accurate multi-color registration.
Ink System : Equipped with two separate inking units, the machine features dual distribution and form rollers for consistent ink application. Inking control is managed via manual screw adjustment on both ink ducts, and manual washing devices are included for maintenance.
Plate Cylinder : The machine uses standard letterpress chases to lock two separate printing forms, ensuring secure and precise plate positioning for high-quality print results.
| Model | Heidelberg-Cylinder KSBAZ |
|---|---|

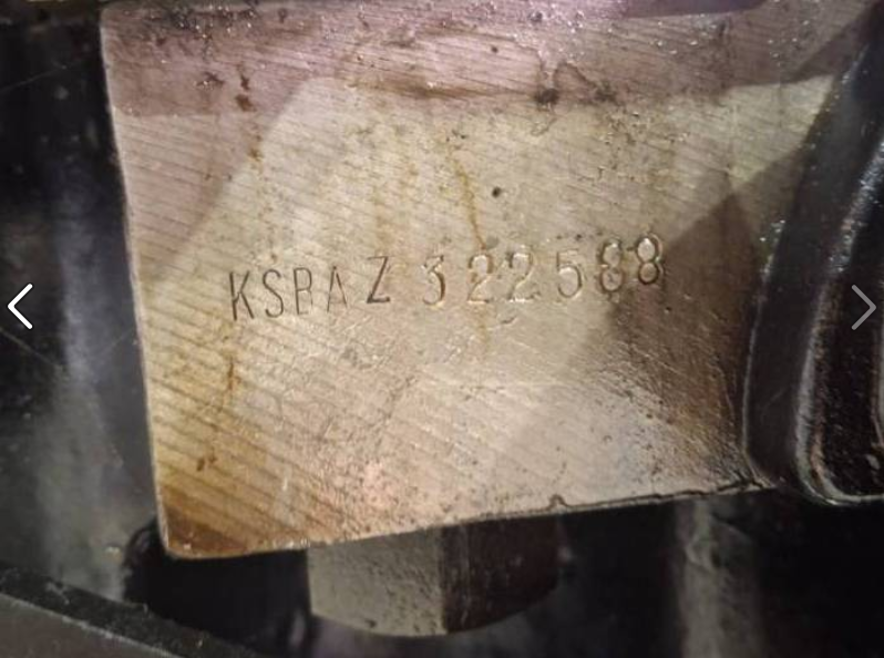

| Reference Number | 322588 |
| Manufacturer | Heidelberg |
| Year | 1965 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | 6500.00 EUR |
| Location | 103 Rue des Écoles, 38121 Reventin-Vaugris, France |
Heidelberg - Cylinder KSBAZ
