Machine Description
Configuration: Automatic thermal / wet glue roll-to-sheet laminating machine (industrial dry lamination system)..
Year: 1999..
Max paper size: 120 x 72 cm (47 x 28 inch)..
Min paper size: approximately 30 x 28 cm (varies slightly by configuration)..
Max working width: 1020 mm..
Laminating system: Heated oil-calender roller system with pressure nip for film bonding..
Heating system: Oil-heated chrome cylinder with adjustable temperature control..

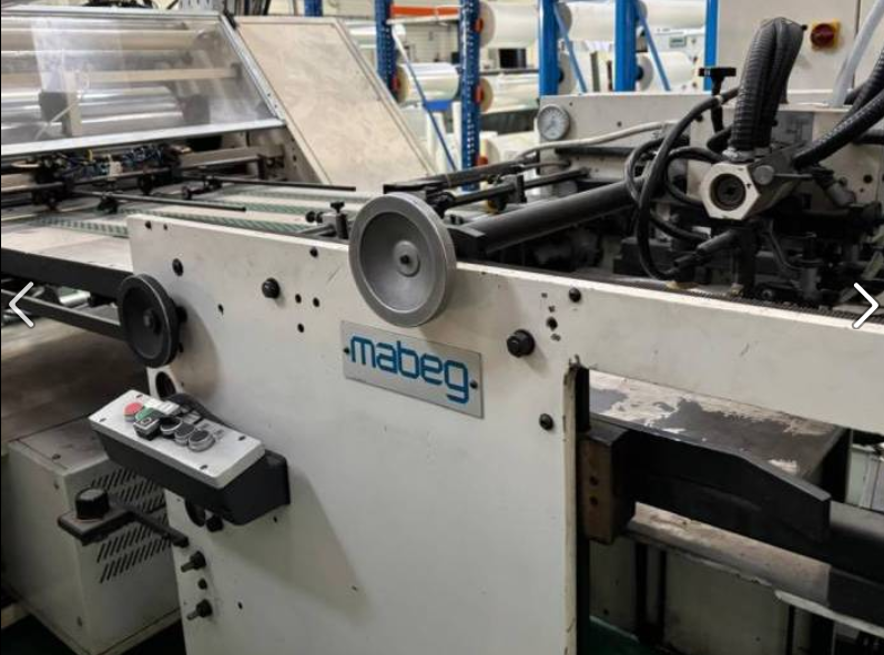

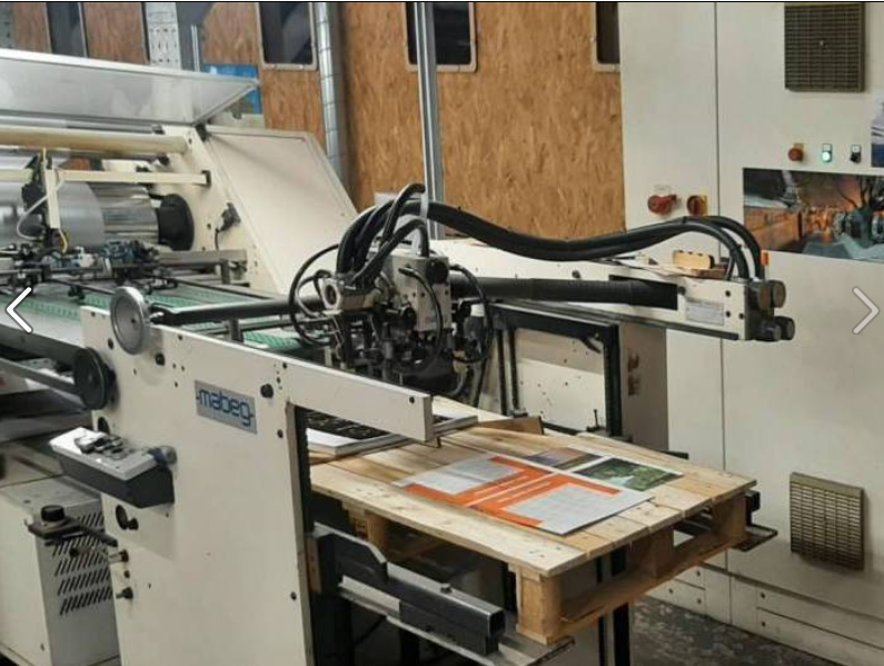

Feeder type: Automatic high pile feeder (commonly Mabeg or equivalent)..
Max speed: approximately 60–70 m/min..
Production capacity: up to 10,000 sheets/hour depending on format and substrate..
Pressure system: Pneumatic pressure adjustment on laminating rollers..
Film system: BOPP thermal films and adhesive-coated films with controlled tension unwinding system..
Cooling system: Integrated chill roller for sheet stabilization and anti-curl control..
Separation system: Automatic cutting / separating unit with self-cleaning knife system..
Delivery system: High pile stacker with sheet alignment and braking system..
Substrate thickness: approximately 100 gsm up to 1 mm board..
Compatible materials: Coated paper, printed sheets, cardboard, packaging materials, and commercial print stock..
Applications: High-volume lamination for packaging, book covers, brochures, posters, and commercial print finishing..
Control system: Electronic speed control with temperature, pressure, and overlap adjustment..
Additional features: Powder removal system, anti-static brushes, decurling system, film centering unit, and waste rewinder..
Machine dimensions (L x W x H): approximately 7.4 m x 3.1 m x 2.0 m..
Total weight: approximately 5,000–6,500 kg depending on configuration....

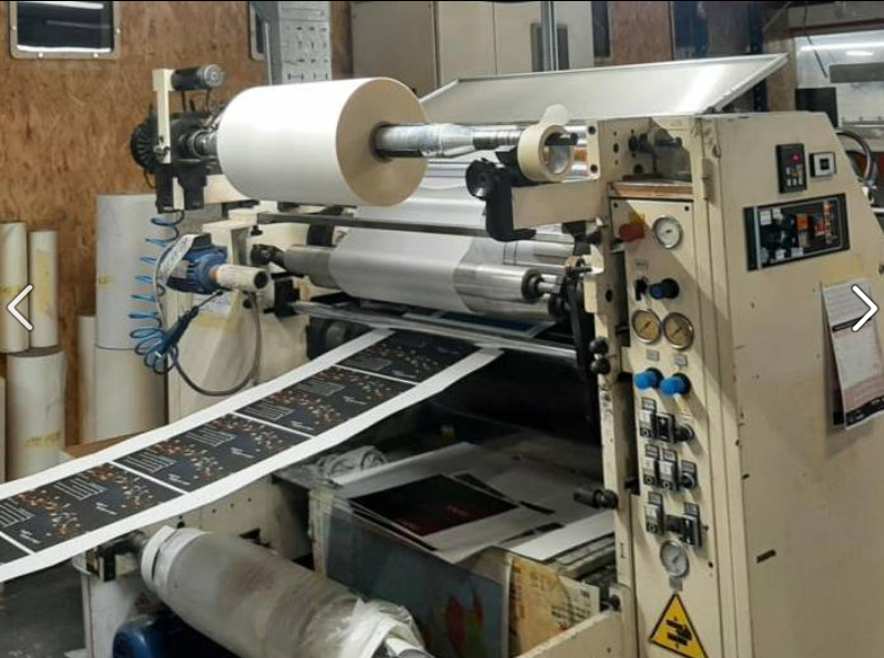

The Paperplast 102 Dry is an industrial-grade automatic thermal/wet glue roll-to-sheet laminating machine designed for high-volume lamination applications. Part of the Laminating machines category, this 1999 model features an oil-heated chrome cylinder system with precise temperature control, pneumatic pressure adjustment, and an integrated cooling system for optimal film bonding. Ideal for commercial print finishing, it efficiently handles substrates ranging from 100 gsm paper to 1 mm board, making it suitable for packaging, book covers, brochures, posters, and other printed materials. With a maximum speed of 60–70 m/min and a production capacity of up to 10,000 sheets/hour, the 102 Dry ensures high productivity while maintaining quality through features like automatic sheet feeding, decurling, anti-static controls, and waste management.
Key Technical Aspects:
Dimensions and Specifications : The machine measures approximately 7.4 m (L) x 3.1 m (W) x 2.0 m (H) and weighs between 5,000–6,500 kg. It operates at speeds of 60–70 m/min with a production capacity of up to 10,000 sheets/hour. The heating system utilizes an oil-heated chrome cylinder with adjustable temperature control, while the pneumatic pressure system ensures precise laminating roller adjustments. Additional features include a powder removal system, anti-static brushes, and a waste rewinder.
Paper Handling : The 102 Dry supports a maximum paper size of 120 x 72 cm (47 x 28 inch) and a minimum size of approximately 30 x 28 cm, with a maximum working width of 1020 mm. It accommodates substrates from 100 gsm paper to 1 mm board, including coated paper, cardboard, and packaging materials. The machine includes an automatic high-pile feeder (e.g., Mabeg), a high-pile stacker with sheet alignment, and a braking system. An integrated chill roller stabilizes sheets and prevents curling, while an automatic cutting/separating unit with a self-cleaning knife ensures clean output.
| Model | Paperplast-102 Dry |
|---|---|
| Reference Number | 10583 |
| Manufacturer | Paperplast |
| Year | 1999 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | 103 Rue des Écoles, 38121 Reventin-Vaugris, France |
