Foliant - Gemini C 400 A

Machine Description

We are pleased to offer:.

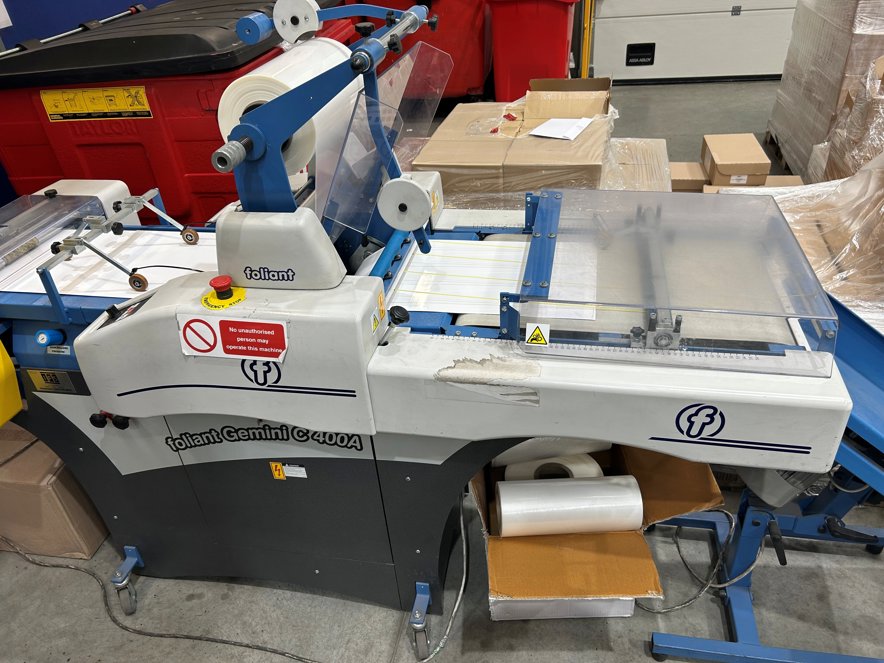

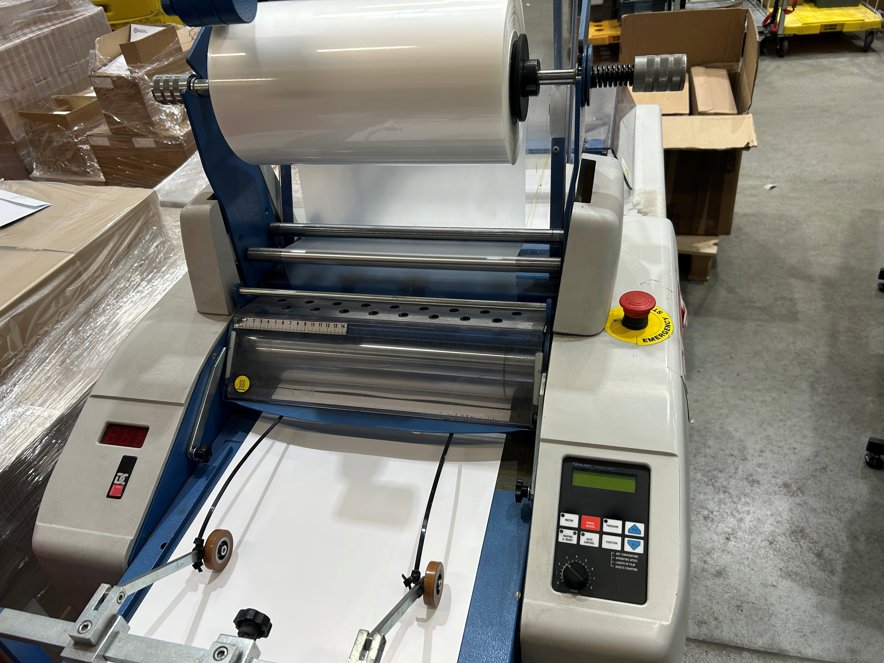

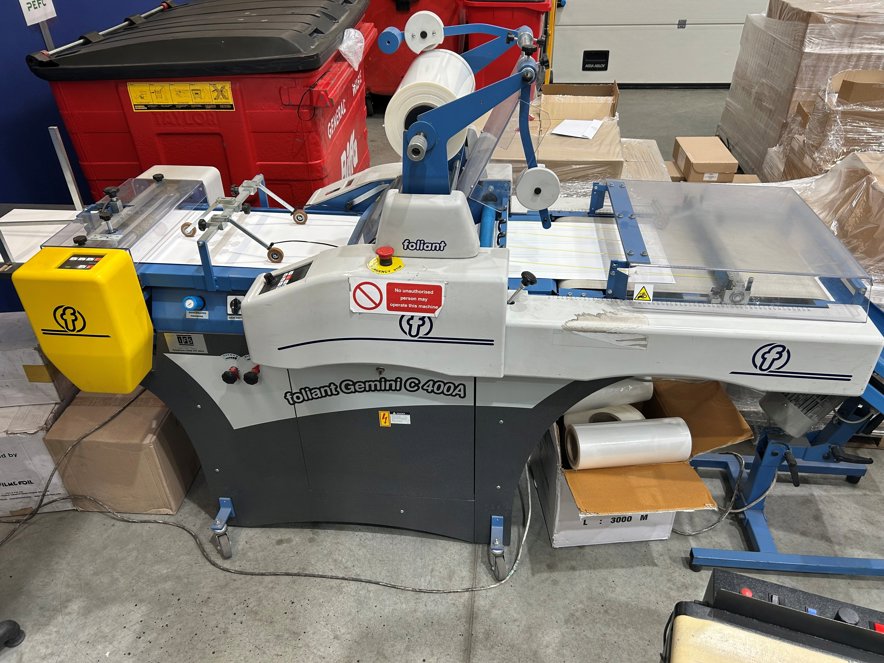

Used Foliant Gemini C400A Laminating Machine with Jogger Year 2013.
Specification.
The Foliant Gemini C400A is a fully automatic, high-pressure thermal laminating machine, ideally suited for professional single-sided lamination, particularly for output from digital printing presses. Manufactured in 2013, this model is designed for short to medium runs and can handle sheets up to the B3 format..
The machine features a sophisticated vacuum belt automatic feeder for reliable, continuous operation and uses a pneumatic system to apply high pressure to the laminating rollers, ensuring impeccable lamination quality, even on challenging digital materials. A key feature is the integrated compressor, which means no external air source is required..
Crucially, this specific machine includes the JG-400 Jogger delivery unit, which is an essential accessory. The jogger receives the separated, laminated sheets and squares them up into a neat, stackable pile, optimising the workflow for subsequent finishing processes like guillotining. The C400A is also equipped with an Anti-Curl Mechanism (de-curl blade/roller) to ensure the laminated sheets remain perfectly flat..
Max. Sheet Size: 380×580 mm.
Min. Sheet Size: 300×200 mm (or 300×250 mm).
Max Speed: 15 metres/minute.
Max. Output (Performance): 1,800 B3 sheets/hour.
Paper Weight (Stock): 115−350 g/m2 (gsm).
Film Thickness: 20−45 microns.
Feeder Type: Automatic Vacuum Belt Feeder.
Feeder Load Capacity: 250 mm.
Laminating Pressure: Pneumatic (Air) System.
Integrated Compressor: Yes.
Warming-up Time: 5 minutes.
Temperature Control: 80−140∘C.
Delivery Unit: JG-400 Jogger.
Machine Weight (approx.): 265−365 kg (machine jogger).
Anti-Curl Mechanism: Equipped with both a de-curl blade (for offset) and a roller (for digital prints)..
In-Run Overlaps Control: Precise sheet overlap adjustment during operation..
Automatic Separation: Sheets are automatically cut and separated after lamination..
Film System: Includes a trim slitter and perforating wheel..
Modular Stand: Supplied with the machine as standard..
Good working order.
Available immediately
