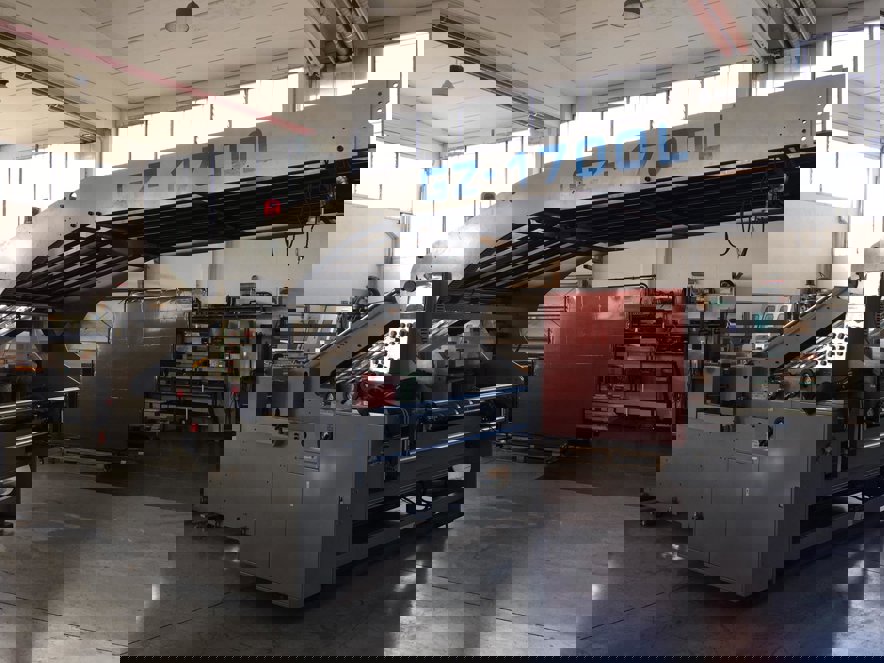

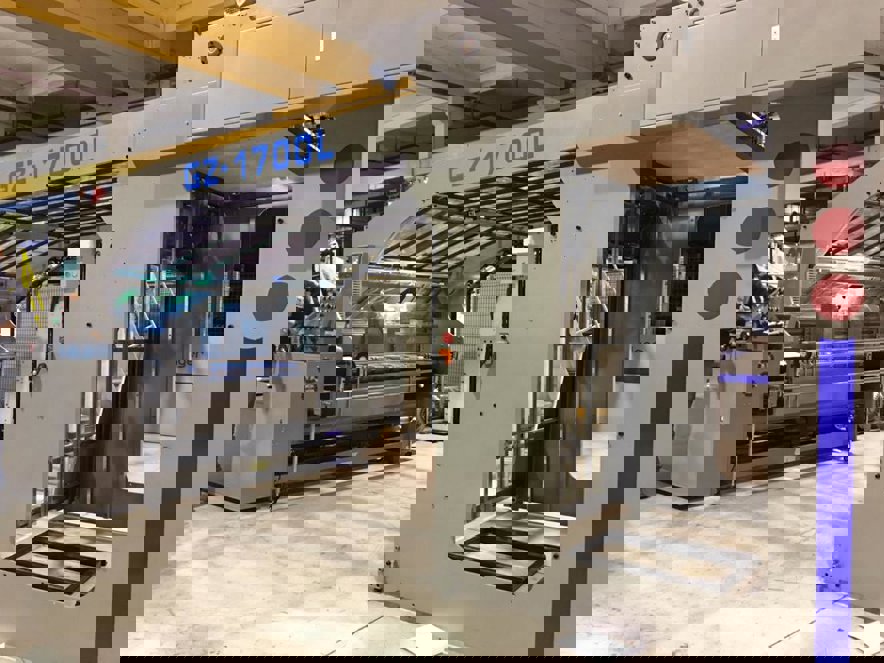

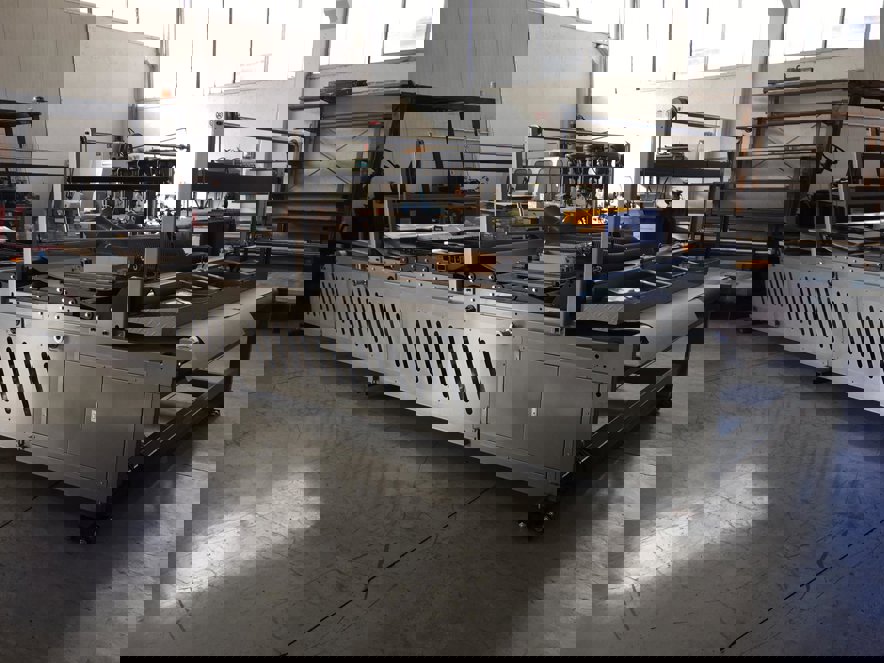

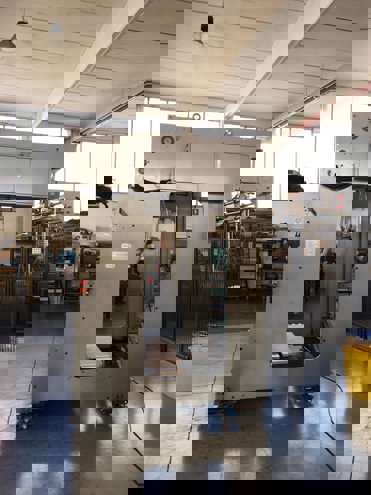

Feng Chi - GZ 1700

Key Technical Aspects:

Dimensions and Specifications : The Feng Chi GZ 1700 has a length of 7,300 mm, a width of 2,300 mm, and a height of 1,800 mm. It weighs approximately 12,000 kg and has a maximum printing speed of 15,000 sheets per hour. The machine has a maximum sheet size of 720 x 1,020 mm and a minimum sheet size of 360 x 510 mm.

Paper Handling : The GZ 1700 features a advanced paper handling system with a maximum paper capacity of 10,000 sheets. It has a dual-cassette feeder system, allowing for simultaneous printing of two different paper stocks. The machine also features an automatic sheet detection system, which ensures accurate sheet registration and reduces waste.

Printing Unit : The printing unit of the GZ 1700 features a maximum printing speed of 15,000 sheets per hour and a maximum printing resolution of 300 lpi. It uses a conventional offset printing technology with a maximum printing area of 720 x 1,020 mm. The machine has a total of 6 printing units, allowing for 6-color printing with optional varnish.

Ink System : The GZ 1700 uses a conventional offset ink system with a maximum ink capacity of 20 kg per unit. The machine features an automatic ink supply system, which ensures consistent ink flow and reduces waste. The ink system also features an advanced ink temperature control system, which ensures optimal ink viscosity and print quality.

Plate Cylinder : The plate cylinder of the GZ 1700 has a diameter of 1,020 mm and a circumference of 3,200 mm. It features a maximum plate size of 720 x 1,020 mm and a minimum plate size of 360 x 510 mm. The plate cylinder is designed for high-speed printing and features an advanced plate clamping system, which ensures accurate plate registration and reduces waste.
