Machine Description

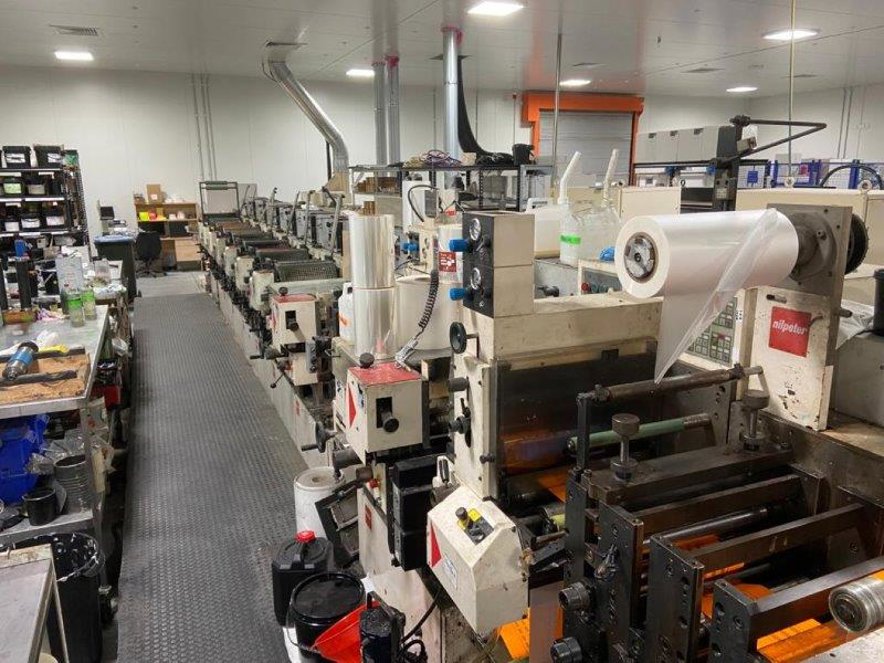

7 Letterpress,Min Web is 120mm Max Web is 300mm Max print width is 295mm, 2 Screen, 1 Hot Foil,1 Lamination,1 Flexo Station,Flatbed Die Cutting,Rotary Die Cutting, corona treater, DELAM/RELAM, turn bar, full UV. Magnetic Cylinders Die Cut.Additional Tooling:Various Magnetic Cylinders, Various Anvils, Full Sets of Print Cylinders for 64T, 70T, 75T, 80T, 85T, 90T, 96T, 100T, 105T, 110T, 112T, 115T & 120T,a Library of Dies,.MACHINE HAS BEEN REFURBISHED IN JUNE,2014.Refurbished early July 2014 (die head replaced, angles on dies head re machined , all rollers on first 5 units replaced and re aligned , form rollers on all units replaced) Uses over 100 amps (160amp breaker).Manuals included.Available Sep/ October , 2023. Video link available on request.
| Model | Nilpeter-B3000-7 |
|---|---|
| Manufacturer | Nilpeter |
| Year | 2002 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Australia/ NZ |
About Nilpeter - B3000-7
The Nilpeter B3000-7 is a high-performance narrow-web flexographic printing press designed for label and packaging converters. This machine is ideal for producing high-quality labels, tickets, and tags at fast speeds. Key features of the B3000-7 include its advanced servo-driven technology, high-precision registration, and efficient drying system. The benefits of this press include improved productivity, reduced waste, and enhanced print quality. Typical applications of the Nilpeter B3000-7 include label production for the food, beverage, pharmaceutical, and cosmetic industries.
Key Technical Aspects:
Dimensions and Specifications : The Nilpeter B3000-7 has a web width of 300 mm (11.8 in) and a maximum repeat length of 700 mm (27.6 in). The machine's overall length is 8,500 mm (335 in), and its height is 1,800 mm (70.9 in). The press weighs approximately 4,500 kg (9,921 lbs) and has a maximum production speed of 200 m/min (656 ft/min).
Paper Handling : The B3000-7 features a 10-inch (254 mm) diameter unwind spindle with a maximum unwind diameter of 1,000 mm (39.4 in). The press is equipped with a high-precision servo-driven rewind system with a maximum rewind diameter of 800 mm (31.5 in). The machine has a single die-cutting station and a shear-cut slitting system.
Printing Unit : The Nilpeter B3000-7 has seven flexographic printing units, each with a maximum print width of 300 mm (11.8 in). The printing units are equipped with high-precision servo-driven impression cylinders and feature a maximum print speed of 200 m/min (656 ft/min). The press uses a UV-curing system with a maximum power output of 12 kW.
Ink System : The B3000-7 uses a closed-loop ink circulation system with a total ink capacity of 21 liters (5.5 gal). The press is equipped with a chambered doctor blade system and features a high-precision ink metering system.
Plate Cylinder : The plate cylinder has a diameter of 300 mm (11.8 in) and a maximum plate thickness of 6 mm (0.24 in). The cylinder features a quick-change system for easy plate mounting and demounting.
