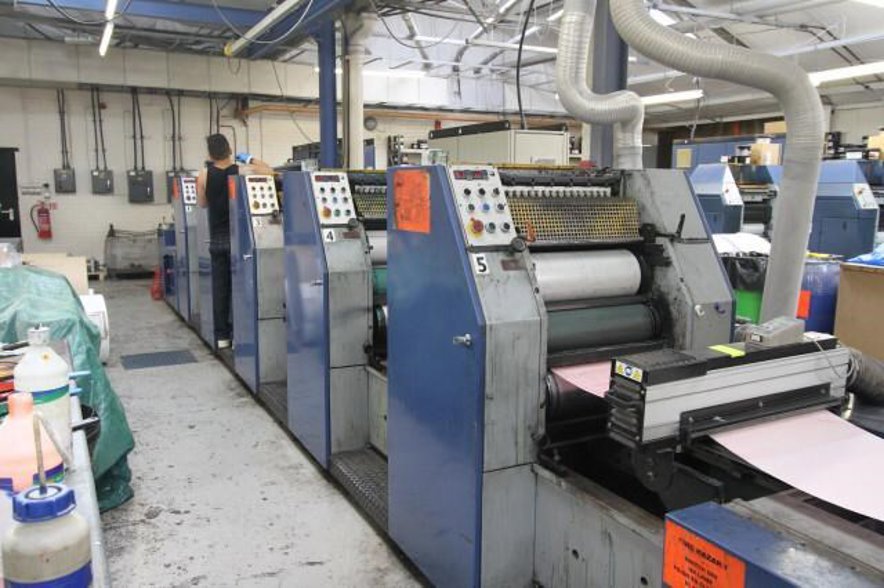

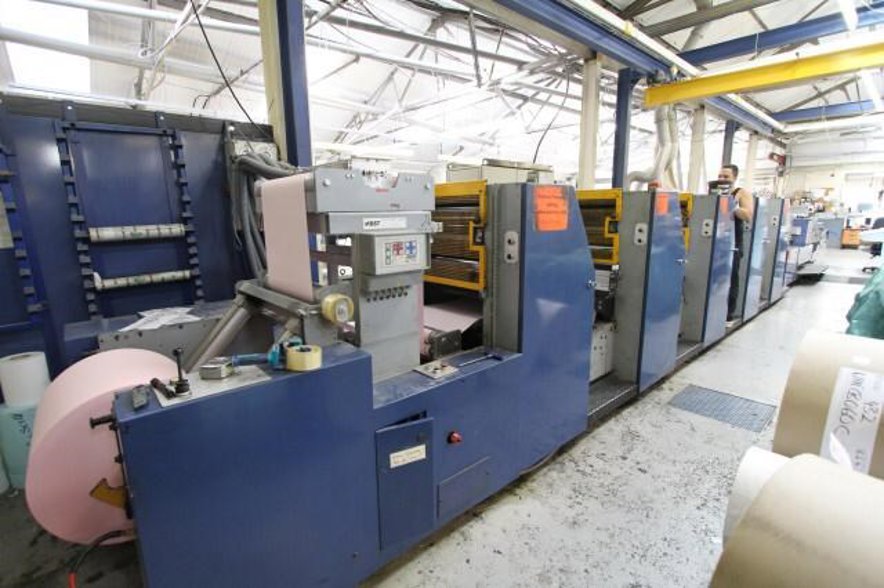

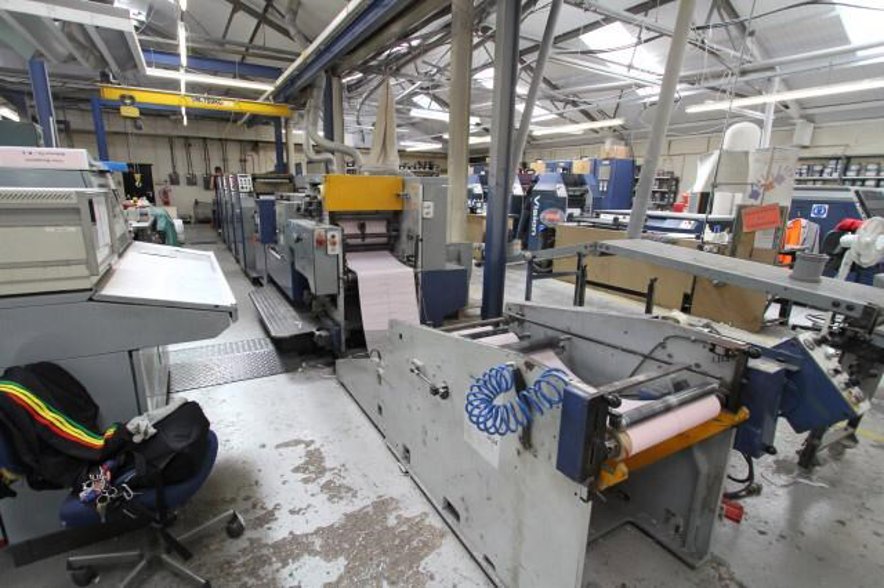

Machine Description
1 - Unwind unit – 50” dia. max reel – with 70mm airshaft.
1 - BST edge guide unit.
1 - Infeed unit.
5 - Wet offset print units.
1 - Technotrans fount circulation system.
9 - Wet offset print cassettes: 4 x 22”, 5 x 24”.
1 - Ideal Quartz Vti UV drying system with 2 lamps.
1 - Plate bender.
1 - Turner bar between units 1/2.

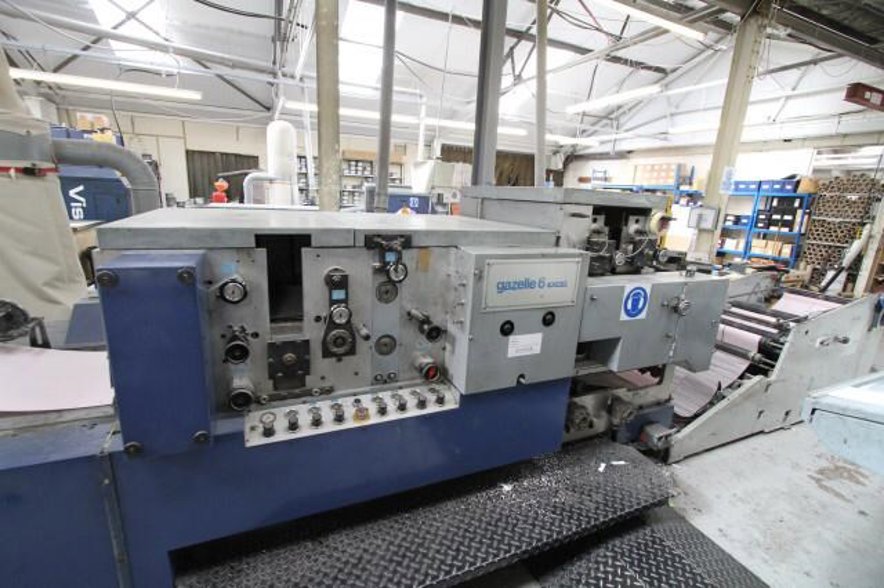

1 - Processing unit with:.
- Edge trim & length perf station.
- File hole punching station.
- Line hole punching station – dual stream NG tooling.
- Confetti extraction.
- 2 x Cross perforating positions c/w 22” & 24” perf cylinders.
1 - Folder unit with delivery table.
1 - Rewind unit – with 70mm airshaft.
1 - Freestanding machine control console.
1 - Main electrical cabinet.
1 - UV electrical cabinet.
1 - Overhead frame work & moveable gantry with hoist for change of print.
cassettes and perf cylinders
| Model | Drent -Excel |
|---|---|
| Manufacturer | Drent |
| Year | 1994 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Netherlands |
About Drent - Excel
The Drent Excel is a high-performance, sheet-fed offset printing press designed for commercial and industrial printing applications. This machine is categorized as a medium-format press, ideal for printing a wide range of materials, including paper, cardboard, and plastics. The Excel model is renowned for its exceptional print quality, high productivity, and versatility, making it an excellent choice for printers who require flexibility and reliability. Typical applications include commercial printing, packaging, and label printing.
Key Technical Aspects:
Dimensions and Specifications : The Drent Excel has a length of 5,500 mm, a width of 1,800 mm, and a height of 1,900 mm. It weighs approximately 4,500 kg and has a maximum printing speed of 15,000 sheets per hour. The press has a maximum sheet size of 720 x 1,020 mm and a minimum sheet size of 350 x 500 mm.
Paper Handling : The Excel features a highly efficient paper handling system, comprising a feeder with a capacity of 5,000 sheets, a delivery stacker with a capacity of 5,000 sheets, and an optional inline sheeter. The press is equipped with advanced sheet registration and alignment systems, ensuring precise sheet control and minimal waste.
Printing Unit : The Drent Excel is equipped with six printing units, each featuring a maximum printing speed of 15,000 sheets per hour. The press uses a conventional offset printing process with a maximum resolution of 254 lpi. The printing units are designed for high-speed printing and are equipped with advanced dampening and inking systems.
Ink System : The Excel uses a high-performance, alcohol-free dampening system and a conventional offset inking system. The press has a maximum ink capacity of 20 kg per unit, and the ink is supplied through a central ink supply system. The ink system features advanced ink metering and distribution systems, ensuring consistent and precise ink application.
Plate Cylinder : The plate cylinder on the Drent Excel has a diameter of 1,070 mm and a circumference of 3,350 mm. The plate cylinder is designed for high-speed printing and features advanced plate clamping and registration systems, ensuring precise plate control and minimal waste.
