Machine Description

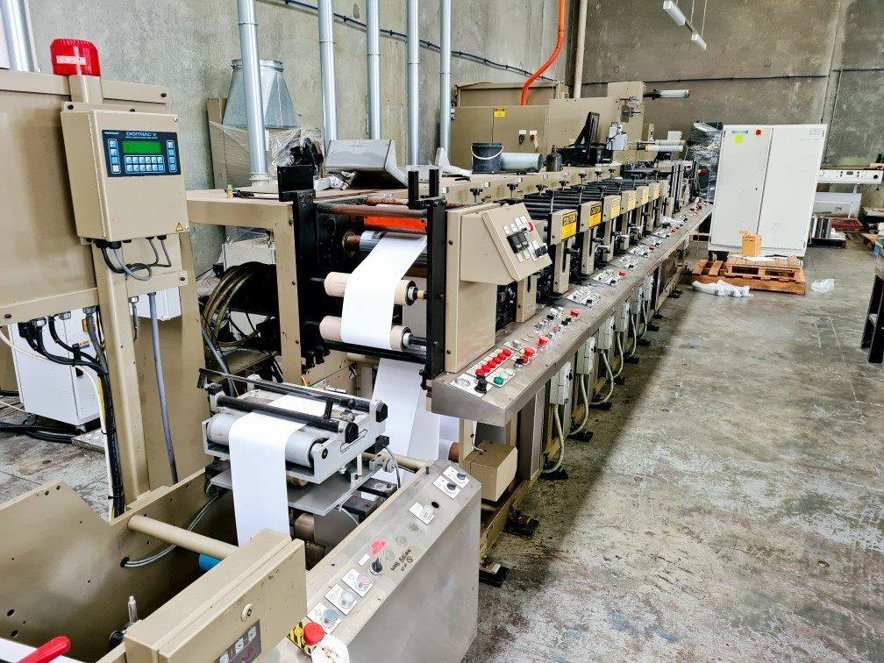

Can be inspected. Very Clean machine.Web width 280mm, Maximum Printing Width 12" (260mm) Maximum Die Cutting Width 12" (260mm) Printing Repeat 7.5" to 20" (508mm) Maximum Die Cutting Repeat 20" (508mm) Maximum Unwind Diameter 1200mm Maximum Main Rewind Diameter 800mm Maximum Waste Rewind Diameter 635mm Gearing 1/8" Circular Pitch Max Mechanical Speed 500 ft/min (152m/min).
-1 UNWIND UNIT - Maximum reel diameter 1200 (31.5") - Unwind shaft 3" core O.D..
Magnet Clutch air shaft.
-Electronic web guide with edge sensor USA.
- Electronic closed loop tension control PLC Control.
- Servo Closed Loop Variable in-fee station.
- Splicing table with press interlock. 8 PRINTING UNITS.
- Flexo Print Unit - Quick change Anilox and doctor blade assembly ,.
-Turn Bar for printing on the back of the label ,.
-Hard Chrome Impression Cylinders 6 UV CURLING UNITS.
- LAMP UV power system and supply x 6 with spare lamp (replacement Lamp.
total 2 brand new UV lamp system) valued at AUD9,000..
-8 hot air heating in 8 printing stations with total controller 1 OUTFEED UNIT.
- Pneumatically Operated mechanical drive Unit with Rubber Nip Roller.
-2 DIE CUTTING UNITS , Die cutting capable of top or bottom cutting - Bearer to bearer contact and bearer bridge assembly for pressure and accurate cutting.
- Automatic 360 degrees registration unit.
-1 SINGLE REWINDER - 1 x 800mm diameter capacity single product rewind with 3" core i.d..
cantlilevered pneumatic shafts AC Drive and Magnetic clutch tension control.
through air clutch DRIVE AND ELECTRONICS.
- The printing press Original Aquaflex electronic Component.
-Corona Treater.
-GRAPHIC VISIOIN RX 100 inspection camera . NO RELAM/DELAM & COLD FOIL.
-Listed Tooling: Plate Cylinders, 1mm Mounting Tape required for 45th undercut 8 x 120 76T 8 x 145 91T 8 x 160 101T 1 x MAGNETIC CYLINDERS 120T.
Plate Cylinders 45th Undercut 5 x 60T 5 x 90T 8 x 96T 11 x 84T.
Anilox 4 x 440 1 x 360 1 x 500 4 x 800 3 x 600 .
| Model | Aquaflex-DBXM102 |
|---|---|
| Manufacturer | Aquaflex |
| Year | 2000 |
| Machine Availability | Immediately from stock |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Australia/ NZ |
About Aquaflex - DBXM102
The Aquaflex DBXM102 is a high-performance flexographic printing machine designed for the converting industry, specifically for printing on flexible packaging materials. This machine is ideal for printing on a wide range of substrates, including films, foils, and laminates. The DBXM102 offers exceptional print quality, high-speed production, and efficient operation, making it an excellent choice for converters and packaging manufacturers. Its key features include advanced registration control, automatic impression setting, and a user-friendly interface, ensuring precise and consistent printing results.
Key Technical Aspects:
Dimensions and Specifications : The Aquaflex DBXM102 has a machine length of 5,500 mm, a machine width of 1,800 mm, and a machine height of 2,200 mm. It weighs approximately 4,500 kg and has a maximum web width of 1,020 mm. The machine's maximum printing speed is 300 meters per minute.
Paper Handling : The DBXM102 features a 3-spindle unwind system with a maximum unwind diameter of 1,000 mm and a maximum rewind diameter of 800 mm. The machine is equipped with a servo-driven rewind system and a web guide system for precise web tracking.
Printing Unit : The printing unit of the DBXM102 is equipped with 8 printing stations, each with a maximum printing width of 1,020 mm. The machine uses a photopolymer plate system and has a printing resolution of 2,540 dpi. The printing speed can reach up to 300 meters per minute.
Ink System : The DBXM102 uses a water-based ink system with a chambered doctor blade system. The ink tank capacity is 20 liters, and the machine features an automatic ink circulation system for consistent ink flow.
Plate Cylinder : The plate cylinder of the DBXM102 has a diameter of 350 mm and a repeat length of 700 mm. The plate cylinder is designed for easy plate mounting and demounting, and it features a pneumatic clamping system for secure plate holding.
