Machine Description

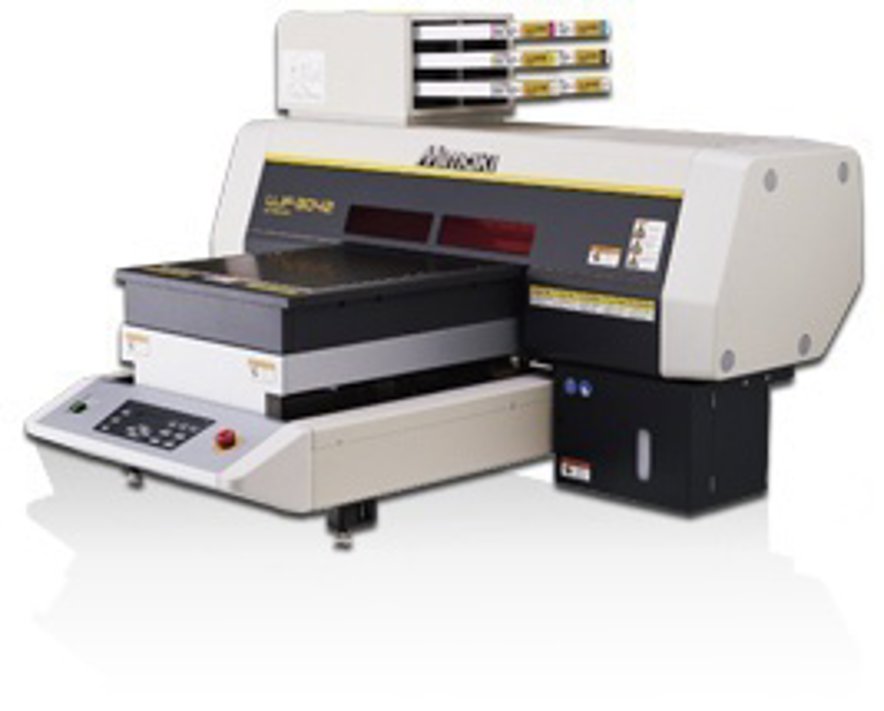

Mimaki japan UV printer A3 - UJF-3042FX.
Age- 10 months. .
2 month Warranty for head and machine included..
MRP : Rs 15.6Lakh.
.
Features.
-Direct printing of variable data on everything.
UV LED curing technology.
.
UJF-3042FX.
As UV LED does not generate excessive heat,.
printing on heat-sensitive material becomes possible..
.

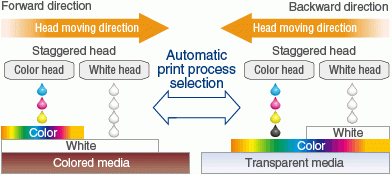

-Simultaneous white ink under and overprint.
.
Print outstandingly colorful, bright images on transparent and colored substrates with white ink under or overprint that do not slow down print speed..
.
-Add value with layered finishes.
.
UJF-3042FX.
Offer higher value prints to your customers:.
Different layer printing enabling haptic surfaces will impress your clients..
.
-Specifications.
.
UJF-3042FX.
Head On-demand Piezo head.
Print resolution 720 × 600 dpi, 1,440 × 1200 dpi.
Ink Hard UV curable ink : LH-100, LF-140, LF-200.
Ink capacity 220 ml ink cartridge / 600 ml ink pack.
Inkjet primer PR-100 (220 ml ink cartridge / 600 ml ink container).
Maximum print width Width : 300 mm (11.8 "), Length : 420 mm (16.5 ").
Media Width Width : 364 mm (14.3 "), Length : 463 mm (18.2 ").
Thickness Max. 50 mm (1.97 ").
Weight Less than 5 kg (11 lbs).
Set device Air suction by vacuum.
UV device Equipped with UV Light Emitting Diodes.
Interface USB 2.0.
Applicable standard VCCI class A, FCC class A, UL, RoHS Directive, CE Marking.
Power specifications AC 100 - 240 V (Automated voltage conversion).
Power consumption Less than 350 VA.
Operational environment Temperature 20 - 35 °C (68 - 95 °F).
Humidity 35 - 65 % Rh.
Dust Equivalent to normal office level.
Weight Approx. 113kg (249.1 lbs.).
Dimensions (W x D x H) 1,200 mm x 1,090 mm x 770 mm (47.2 " x 42.9 " x 30.3 ")
| Model | Mimaki-UJF-3042FX |
|---|---|
| Manufacturer | Mimaki |
| Year | 2016 |
| Machine Availability | Immediately |
| Machine Condition | Excellent |
| Price | 900000.00 INR |
| Location | Chandigarh |
About Mimaki - UJF-3042FX
The Mimaki UJF-3042FX is a high-performance UV LED flatbed printer, categorized under the industrial printing equipment sector. Its primary purpose is to deliver high-quality, vibrant prints on a wide range of materials, including plastics, wood, glass, and metal. Key features of the UJF-3042FX include its ability to print on thick and rigid substrates, a high-resolution print capability, and a compact design that suits various production environments. The benefits of using this printer include its versatility, precision, and efficiency, making it suitable for applications such as sign and display printing, industrial product decoration, and packaging. Typical applications of the UJF-3042FX include printing on signs, displays, promotional items, and various industrial products.
Key Technical Aspects:
Dimensions and Specifications :The Mimaki UJF-3042FX has a compact footprint, measuring 1,420 mm in width, 2,480 mm in depth, and 1,230 mm in height, with a weight of approximately 320 kg. The printer's flatbed size is 710 mm x 510 mm, allowing for printing on substrates up to 50 mm in thickness and 15 kg in weight.
Paper Handling :The UJF-3042FX features a manual substrate loading system, allowing for easy placement and alignment of materials on the print bed. The printer also includes a vacuum system to hold the substrate in place during printing, ensuring accurate registration and preventing substrate movement.
Printing Unit :The printing unit of the UJF-3042FX utilizes UV LED curing technology, with a maximum print resolution of 1,200 dpi and a print speed of up to 1.3 m²/h in high-quality mode. The printer is equipped with six color channels, including cyan, magenta, yellow, black, white, and clear, allowing for a wide range of colors and special effects.
Ink System :The UJF-3042FX uses a UV-curable ink system, with a capacity of 220 ml per color. The ink system features a degassing function to prevent air bubbles and ensure stable ink flow, as well as a circulation system to maintain ink consistency and prevent settling.
Plate Cylinder :As a flatbed printer, the UJF-3042FX does not utilize a plate cylinder. Instead, the printer's flatbed design allows for direct printing on rigid and flexible substrates, eliminating the need for a plate cylinder and enabling efficient and precise printing on a wide range of materials.
