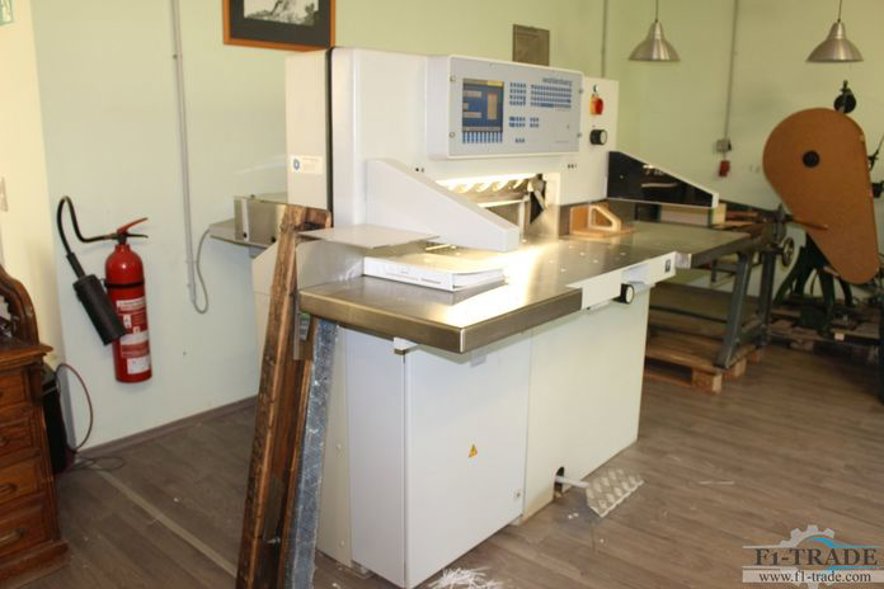

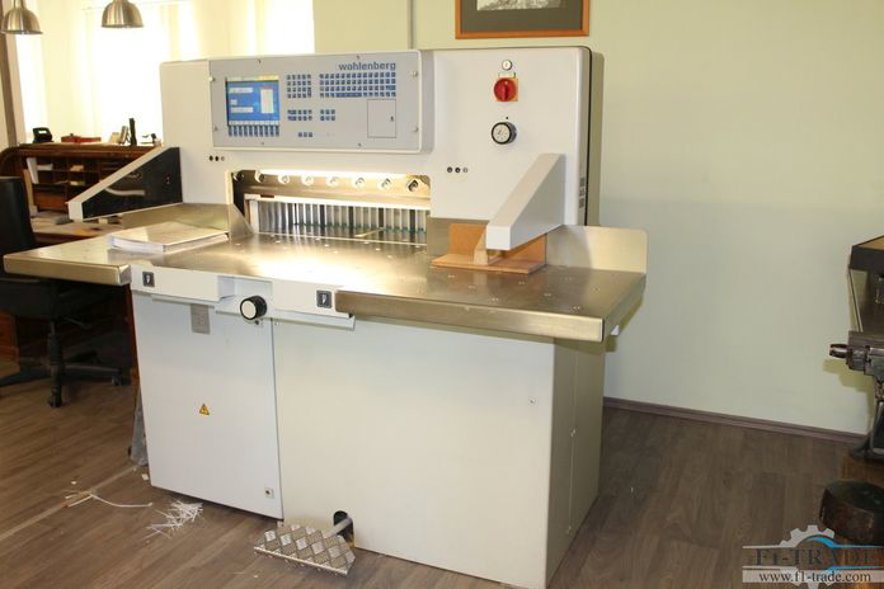

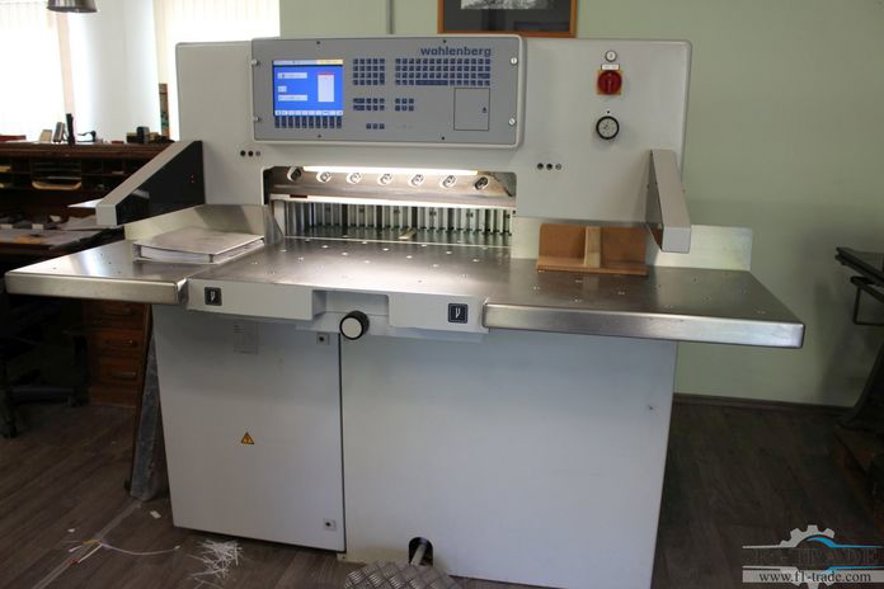

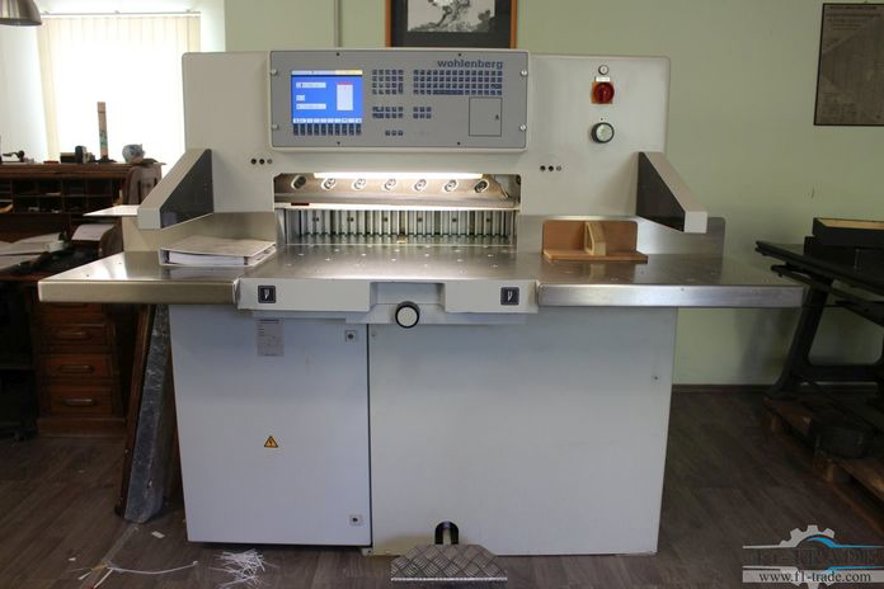

Wohlenberg - 76 CUT-Tec

Key Technical Aspects:

Dimensions and Specifications : The Wohlenberg 76 CUT-Tec has a machine length of 4,500 mm, a machine width of 1,800 mm, and a machine height of 1,400 mm. It weighs approximately 2,500 kg and has a maximum cutting width of 760 mm.

Paper Handling : The machine features a high-capacity feeder with a maximum pile height of 1,200 mm and a sheet size range of 210 mm x 297 mm to 760 mm x 1,070 mm. The CUT-Tec also includes a precision registration system and a high-speed cutting unit with a maximum cutting speed of 250 cycles per minute.

Cutting Unit : The cutting unit is equipped with a high-precision cutting blade and a cutting pressure of up to 1,500 N. The machine can cut materials with a maximum thickness of 1.5 mm and features an automatic cutting angle adjustment.

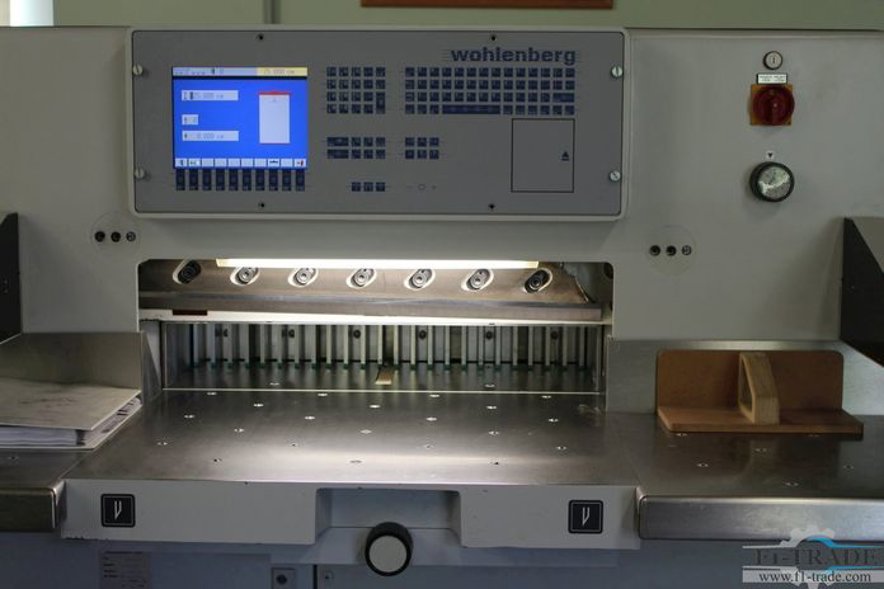

Control System : The Wohlenberg 76 CUT-Tec is controlled by a user-friendly touchscreen interface with a 10.4-inch color display. The machine also features a network connection for easy integration into existing workflows.

Safety Features : The machine is equipped with multiple safety features, including safety sensors, emergency stops, and a safety enclosure to ensure operator safety during operation.
