Machine Description
Maximum Width: 1450 mm.
.
Flexo CI Gearless.
.
8 Printing Units.
.
Drying System: LPG Gas.
.
Repeat: 380 – 800 mm.
.
Mechanical Speed: 365 m/minute.
.
Doctor Blade Chamber.
.
Maximum Material width: 1410 mm.
.
Unwinder Turret - 800 OD.
.
Rewinder Turret- 800 OD.
.
Sleeve.
.
Anilox Rollers.
.
HMI Control unit for Sleeve change/Temperature/Tension, and register.
.
3 x keypad controls.
.
Camera ReVision.
.
BST Edge guides for the rewind and unwind.
.
Chill Roll unit with Corema Chiller unit.
.
Allen Bradley PLC.
.
Control Techniques Drives for Cliché and Anilox.
.
Software upgraded in 2023.
.
Gas drying system with an automatic air recirculation system.
.
Anilox- 4x475 ,4x320, 2x260, 1x200, 1x220, 1x140, 2x120, 2x160, 1x180, 2x100, 1x80.
.
Sleeves-16x380, 8x400, 8x410. 8x420, 10x430, 8x450, 9x490, 8x500, 8x510, 8x520, 16x530, 12x600,8x570, 8x580, 8x600,16x620, 8x630, 8x640, 8x650, 9x660, 8x670, 8x690, 8x700, 8x750, 8x790, 8x800...

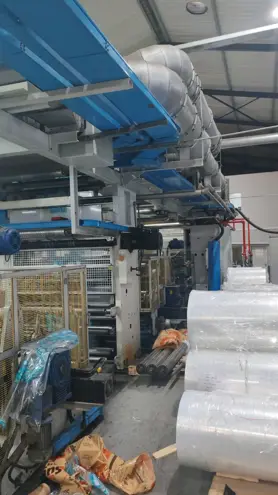

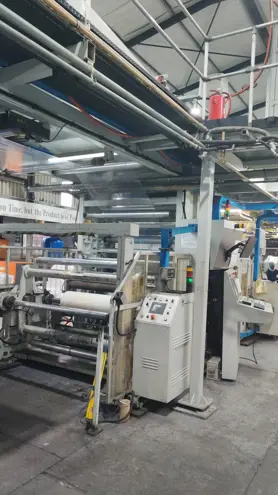

The Uteco Onyx 876 GL is a high-performance gravure/rotogravure printing press designed for precision and efficiency in flexible packaging and label production. This gearless central impression (CI) flexo press combines advanced engineering with robust construction, offering exceptional print quality, speed, and versatility. Key features include an LPG gas drying system, doctor blade chamber, and a sophisticated HMI control unit for seamless sleeve changes, temperature regulation, and tension management. With a mechanical speed of 365 meters per minute and a repeat range of 380–800 mm, this machine is ideal for high-volume production of films, foils, laminates, and other flexible substrates. Its upgraded software (2023) and Allen Bradley PLC ensure reliable automation, while the BST Edge guides and ReVision camera system enhance accuracy and consistency. Suited for applications in food packaging, pharmaceutical labels, and industrial films, the Onyx 876 GL delivers superior performance with minimal waste and downtime.
Key Technical Aspects:
Dimensions and Specifications : The Uteco Onyx 876 GL features a maximum material width of 1410 mm and a maximum printing width of 1450 mm. It operates at a mechanical speed of 365 meters per minute with a repeat length range of 380–800 mm. The machine includes an unwinder and rewinder turret, both with an 800 mm outer diameter (OD) capacity, and is equipped with a chill roll unit paired with a Corema chiller. The gas drying system incorporates automatic air recirculation for energy efficiency.
Printing Unit : This press is configured with 8 printing units, each designed for gearless central impression (CI) flexo printing. The system includes a doctor blade chamber for precise ink metering and Control Techniques drives for cliché and anilox rollers. The HMI control unit facilitates quick sleeve changes, temperature control, and register adjustments, while three keypad controls and a ReVision camera system ensure accurate print registration and quality monitoring.
Ink System : The Onyx 876 GL utilizes an LPG gas-powered drying system with automatic air recirculation to optimize ink curing and energy consumption. The machine is equipped with a comprehensive set of anilox rollers, including specifications such as 4x475, 4x320, 2x260, 1x200, 1x220, 1x140, 2x120, 2x160, 1x180, 2x100, and 1x80 lines per cm, ensuring versatility for various ink densities and print requirements.
Plate Cylinder : The press supports a wide range of sleeve sizes for plate cylinders, including 16x380, 8x400, 8x410, 8x420, 10x430, 8x450, 9x490, 8x500, 8x510, 8x520, 16x530, 12x600, 8x570, 8x580, 8x600, 16x620, 8x630, 8x640, 8x650, 9x660, 8x670, 8x690, 8x700, 8x750, 8x790, and 8x800 mm, enabling flexibility for diverse print jobs and repeat lengths.
| Model | Uteco-Onyx 876 GL |
|---|---|
| Manufacturer | Uteco |
| Year | 2006 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | South Africa |
Uteco - Onyx 876 GL
