Bobst - Dynamic 130

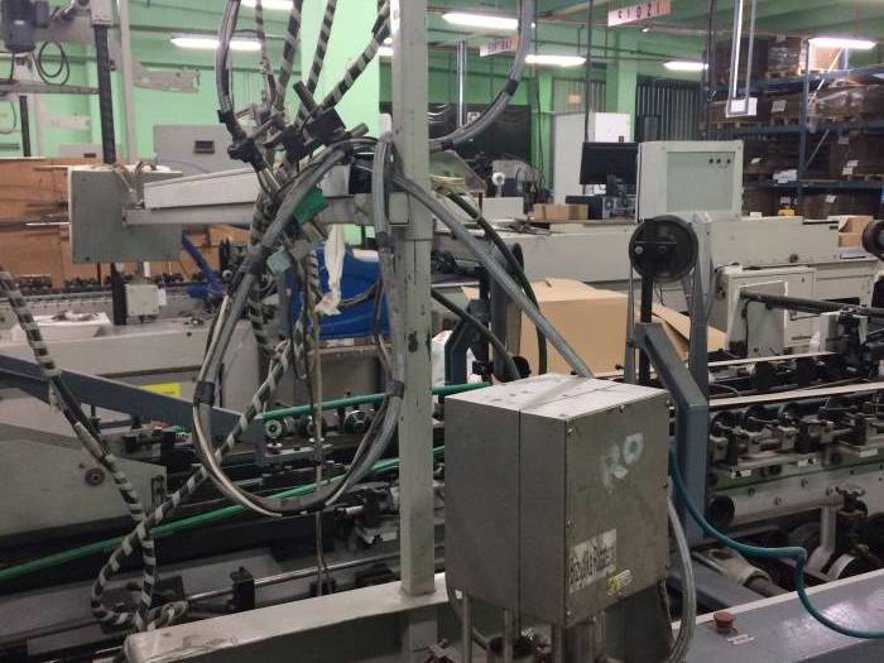

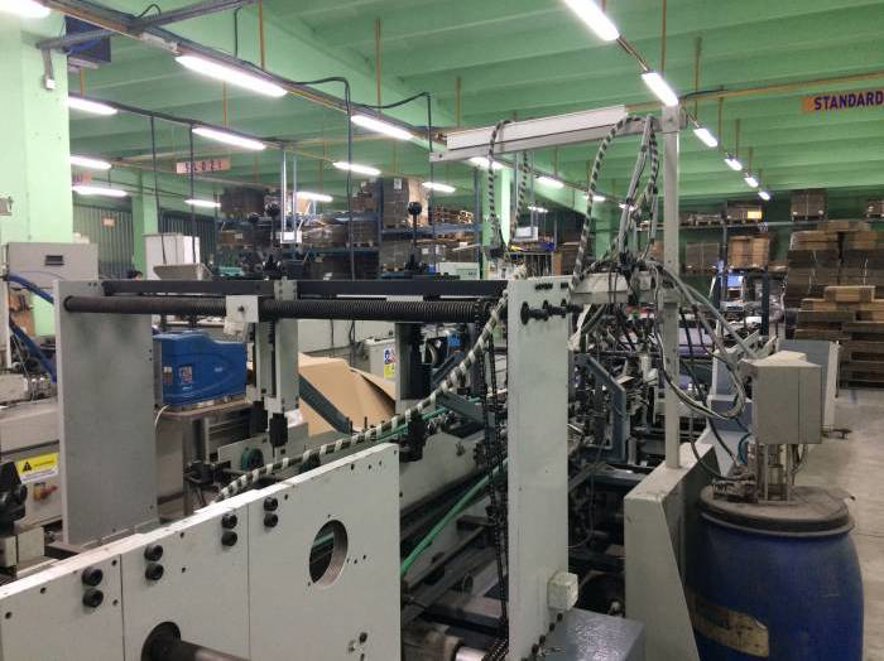

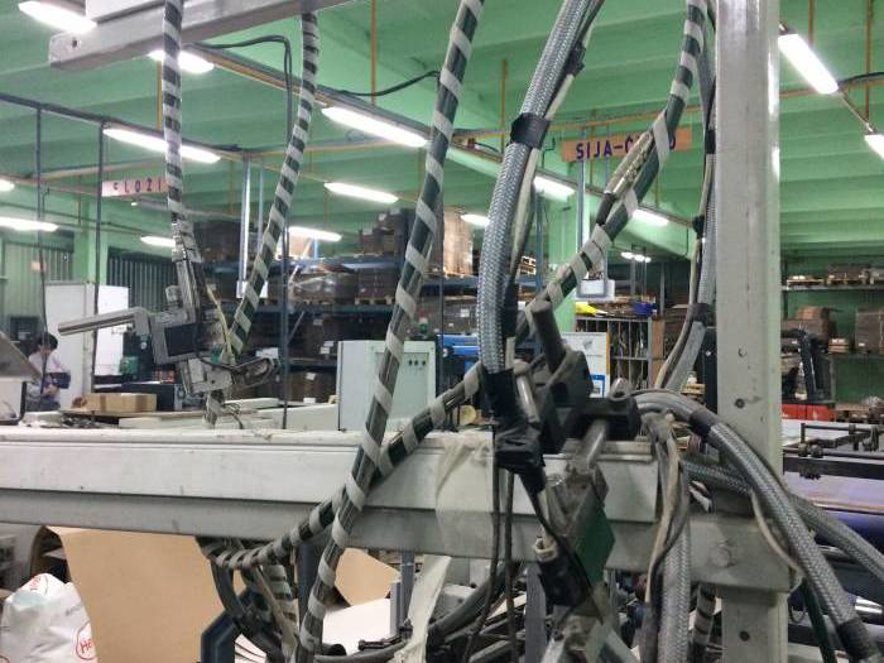

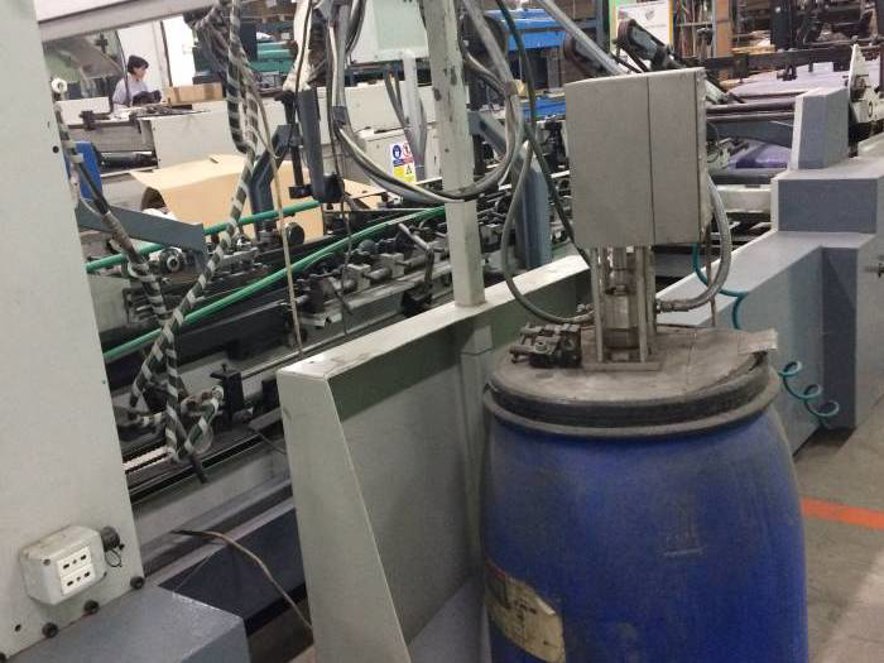

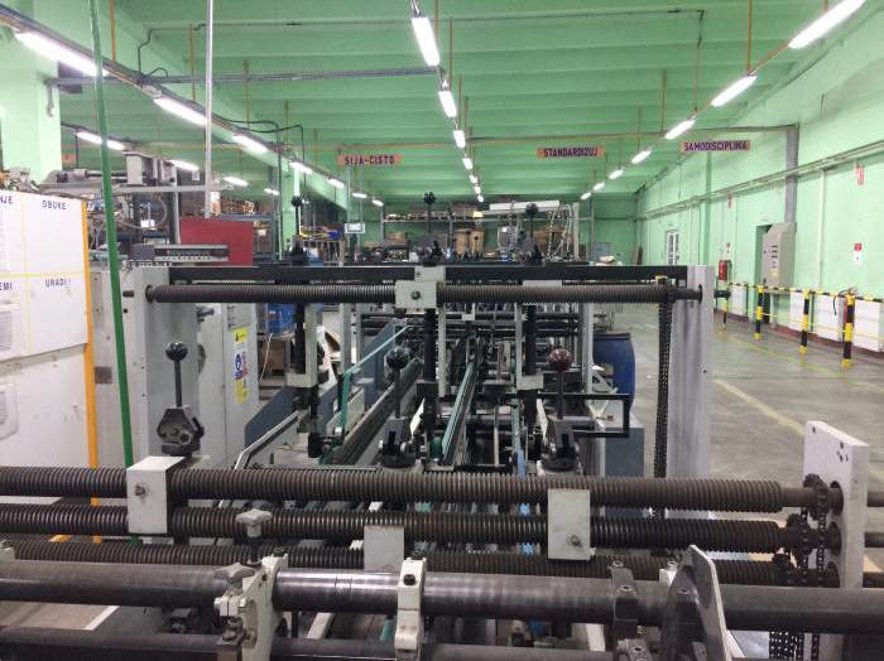

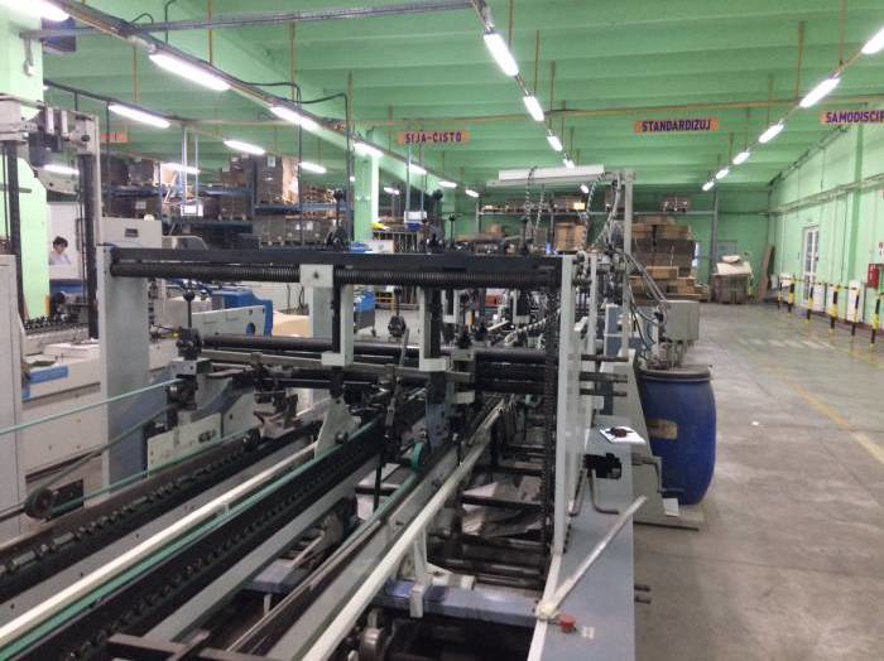

Gluing machine Bobst Dynamic 130
Gluing machine Bobst Dynamic 130
Gluing machine Bobst Dynamic 130
Gluing machine Bobst Dynamic 130
Gluing machine Bobst Dynamic 130
Gluing machine Bobst Dynamic 130

Machine Description

Bobst Dynamic 130 folder gluer - 3 points - crash lock (1974).
.
Max.Size: 130 x 130 cm (51 x 51 inch).
Bobst Dynamic 130 folder gluer - 3 points - crash lock.
Manufacturer: Bobst.
Connection: 25 kVA.
Main motor power: 15kW, three-phase motor.
Machine weight: 10t.
Max speed: 400 m / min.
Min speed: 20 m / min.
Optimal speed: 250 m / min.
Crash lock.
Max cardboard dimensions: 1300 mm.
Min cardboard dimensions: 130 mm.
Maximum thickness of the bent box: 8mm.
Number of gluing points: 1-3.
Gluing: full cardboard, laminated, E and B wave.
Robot glue device with two guns..
Generally renovated in 2015.

ModelBobst-Dynamic 130
ManufacturerBobst
Year1974
Machine AvailabilityImmediately from stock
Machine ConditionRebuilt
PriceOn Request
LocationEurope Eastern

About Bobst - Dynamic 130

The Bobst Dynamic 130 is a high-performance die-cutting machine designed for the packaging and printing industry. This machine is categorized as a flatbed die-cutter, primarily used for cutting and creasing various materials such as paperboard, corrugated cardboard, and plastic sheets. The Dynamic 130 is known for its exceptional precision, speed, and versatility, making it an ideal solution for manufacturers of folding cartons, blister packs, and other packaging products. Its key features include a robust construction, advanced automation, and a user-friendly interface, which provide numerous benefits such as increased productivity, reduced waste, and improved product quality. Typical applications of the Bobst Dynamic 130 include die-cutting, creasing, and perforating of packaging materials for the food, pharmaceutical, and cosmetic industries.

Key Technical Aspects:

Dimensions and Specifications : The Bobst Dynamic 130 has a machine length of 4,300 mm, a machine width of 1,800 mm, and a machine height of 2,200 mm. It weighs approximately 6,500 kg and has a maximum sheet size capacity of 1,300 mm x 1,000 mm.

Paper Handling : The machine features a feeder system with a maximum pile height of 1,200 mm and a sheet thickness range of 0.3 mm to 2 mm. It is equipped with a vacuum-assisted sheet transport system and a precision register system for accurate sheet alignment.

Die-Cutting Unit : The die-cutting unit is equipped with a 1,300 mm x 1,000 mm cutting plate and a maximum cutting force of 300 tons. It operates at a speed of up to 7,500 sheets per hour, depending on the material and complexity of the job.

Ink System : Not applicable, as the Bobst Dynamic 130 is a die-cutting machine and does not use ink.

Plate Cylinder : The plate cylinder has a diameter of 250 mm and is designed for precise registration and accurate die-cutting. It features a quick-lock system for easy plate changing and a precision bearing system for smooth operation.
