Machine Description

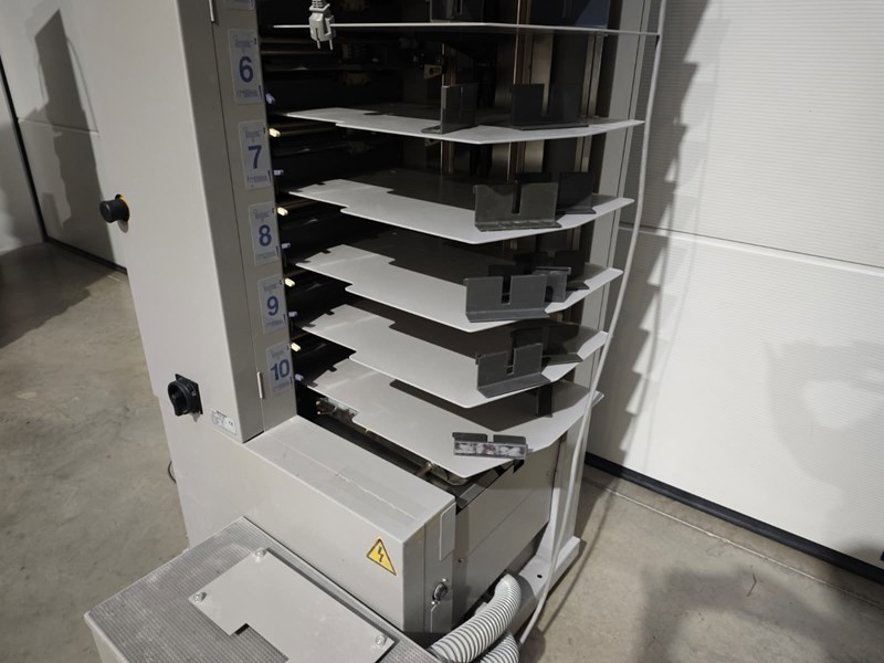

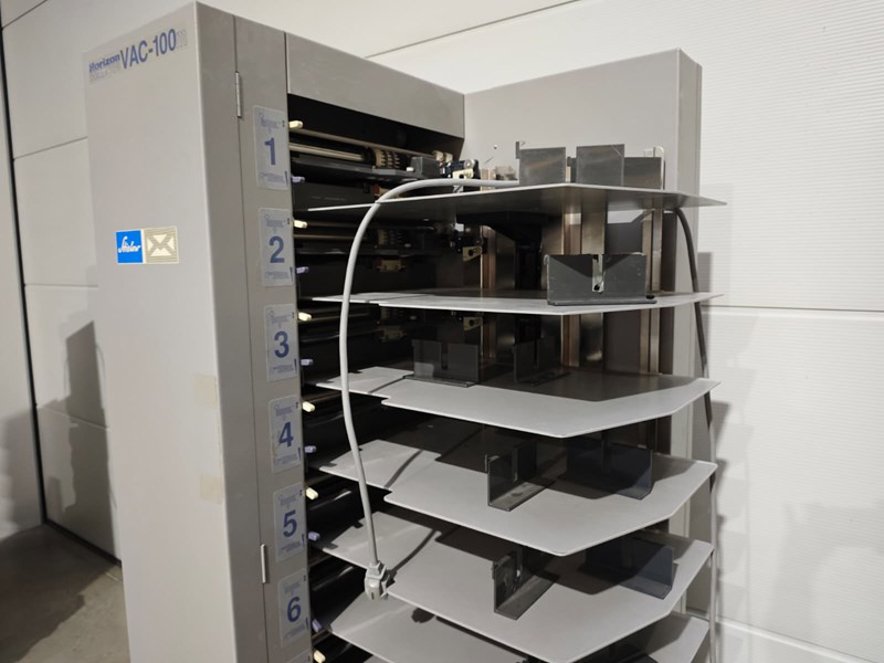

Horizon VAC-100m Air-Suction Collator Tower.
.
The VAC-100m is the ideal solution for print shops looking to expand their production capacity without investing in completely new systems. Its easy integration with the VAC-100a tower and high reliability make it a valuable addition to your production line..
.
.
Key Features:.
.
Cost-efficiency:.
The VAC-100m is a cost-effective expansion solution as it operates without its own display and control unit. This reduces acquisition costs and allows you to expand existing systems efficiently..
.
Expandable Capacity:.
With the ability to connect up to 5 VAC-100m towers to one VAC-100a tower, you can flexibly expand your collating capacity to up to 60 stations. This enables efficient handling of large jobs and a significant increase in your production capacity..
.
Reliability:.
With error prevention features such as misfeed, double-feed, and jam control, the VAC-100m ensures that your production runs smoothly and without interruptions..
.
.
Specifications:.
- Technology: Touch & Work (via VAC-100a).
- Number of stations: 10 per tower.
- Expandability: Up to 6 towers (60 stations).
- Error prevention: Misfeed, double-feed, and jam control.
- Job memory: 9 storage slots for repeat orders.
- Programs: Double cycle (non-stop operation), sheet insertion (single and double), booklet making program, block program, selective collating.
- Sheet size: Max. 500x350 mm; Min. 148x120 mm.
- Paper weight: 40-250 g/m².
- Loading capacity: 55 mm per station.
- Performance: Up to 9,500 sets/h.
- Power: 230V; 50/60Hz - 1.86 kW.
- Dimensions: 842x652x1,961 mm.
- Weight: 310 kg...
The Horizon VAC-100m Air-Suction Collator Tower is a high-performance solution designed for gathering and collating tasks in print shops seeking to expand production capacity efficiently. Part of the Horizon VAC-100 series, this machine integrates seamlessly with the VAC-100a tower, offering a cost-effective way to enhance collating capabilities without investing in entirely new systems. Key features include expandable capacity (up to 60 stations), reliable error prevention (misfeed, double-feed, and jam control), and support for diverse collating programs such as double cycle, sheet insertion, and selective collating. Ideal for high-volume production environments, the VAC-100m ensures smooth, uninterrupted workflows while maximizing productivity and operational flexibility.
Key Technical Aspects:
Dimensions and Specifications : The VAC-100m measures 842x652x1,961 mm (WxDxH) and weighs 310 kg. It operates on 230V at 50/60Hz with a power consumption of 1.86 kW. The machine supports up to 9,500 sets per hour and includes 9 job memory storage slots for repeat orders. Control is managed via the VAC-100a tower using Touch & Work technology.
Paper Handling : The collator accommodates sheet sizes ranging from 148x120 mm to 500x350 mm and handles paper weights between 40-250 g/m². Each of the 10 stations per tower has a loading capacity of 55 mm, enabling efficient collation of large print jobs.
| Model | Horizon-VAC-100 |
|---|---|
| Reference Number | 23192 |
| Manufacturer | Horizon |
| Year | 1998 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
