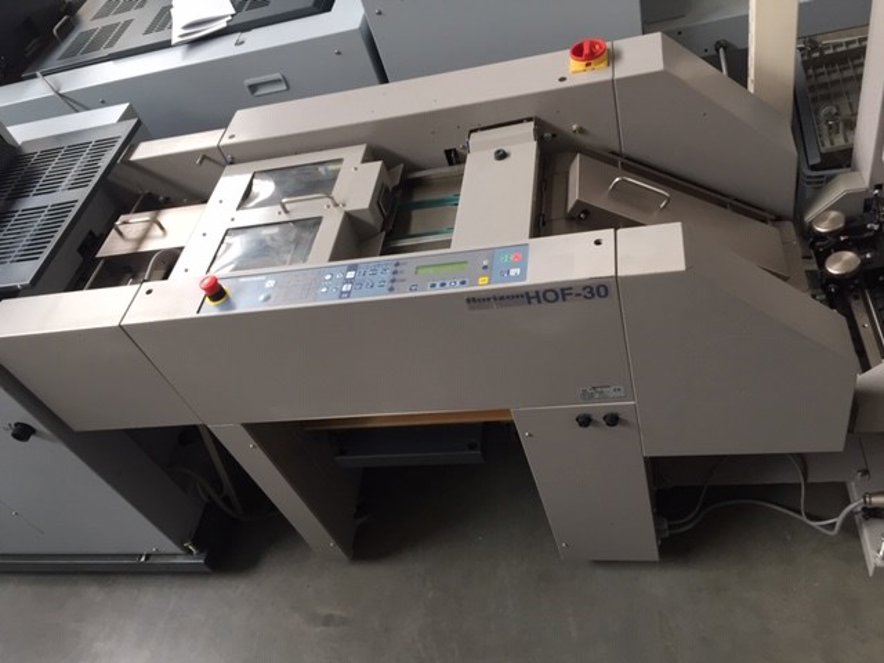

Horizon - HOF-30

Key Technical Aspects:

Dimensions and Specifications : The Horizon HOF-30 measures 123.6 inches (314 cm) in length, 43.3 inches (110 cm) in width, and 55.1 inches (140 cm) in height. It weighs approximately 2,646 pounds (1,200 kg) and has a maximum power consumption of 3.0 kW. The machine's folding capacity is up to 30,000 sheets per hour, with a maximum sheet size of 14.33 inches x 20.47 inches (364 mm x 520 mm) and a minimum sheet size of 5.51 inches x 7.87 inches (140 mm x 200 mm).

Paper Handling : The HOF-30 features a suction-fed paper handling system with a 500-sheet capacity input tray and a 1,000-sheet capacity output tray. The machine is capable of handling a wide range of paper weights, from 16 lb to 110 lb (60 gsm to 400 gsm), and can fold paper thicknesses up to 0.015 inches (0.38 mm).

Folding Unit : The Horizon HOF-30 is equipped with a high-speed folding unit that can produce up to 30,000 folds per hour. The machine features a 6-bucket folding system, allowing for a wide range of fold patterns and configurations. The folding unit is designed for high-precision folding, with an accuracy of ±0.5 mm.

Control System : The HOF-30 features a user-friendly touchscreen control panel with a 10.4-inch color display. The control system allows for easy job setup, monitoring, and adjustment, as well as real-time monitoring of machine performance and production data.

Safety Features : The Horizon HOF-30 is designed with operator safety in mind, featuring a range of safety features, including emergency stops, safety interlocks, and protective guards. The machine also meets or exceeds all relevant safety standards and regulations.
