Machine Description

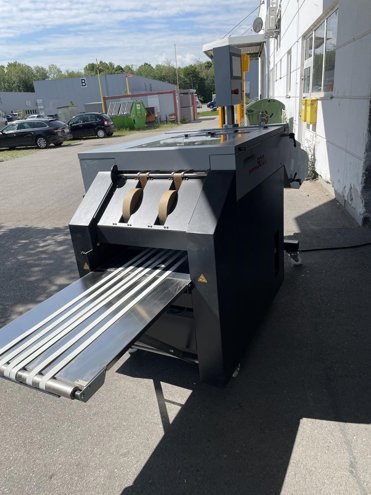

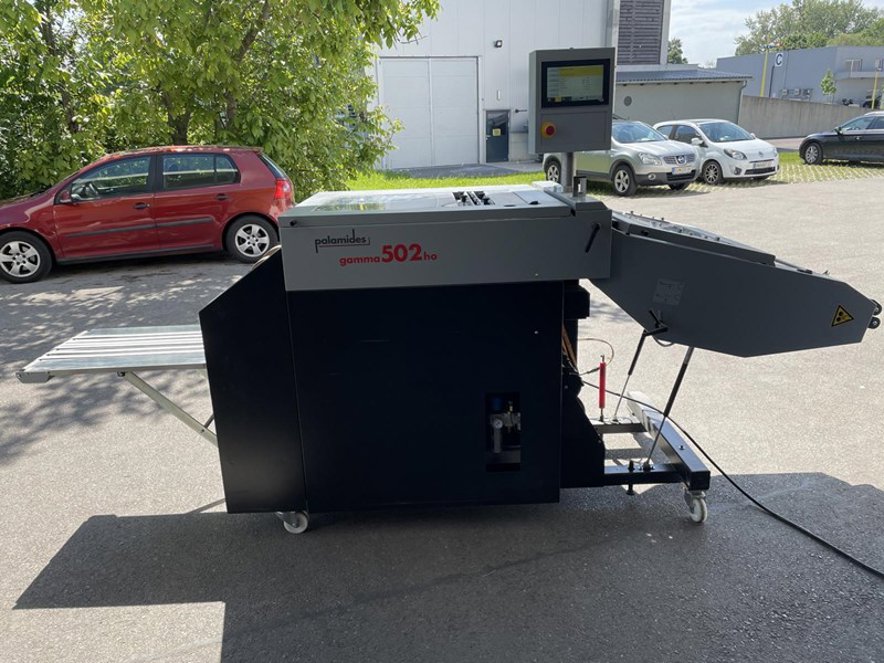

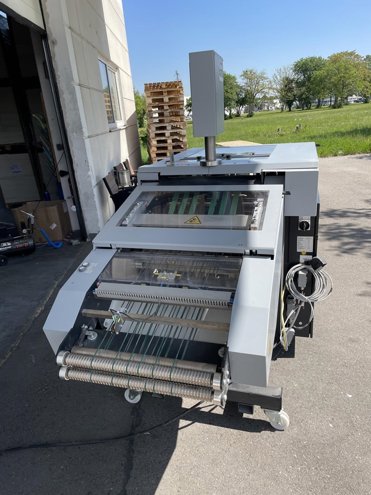

Used Palamides gamma 502ho delivery machine.
.
The Palamides gamma 502ho is an automatic delivery and banding machine, specifically designed for the efficient post-processing of print products such as brochures, flyers, greeting cards, and mailings. It is ideal for connection to folding machines, saddle stitchers, collators, or mailing lines and stands out due to its compact design, high flexibility, and ease of use. The gamma 502ho increases productivity, reduces operating costs, and enables efficient handling of large production volumes even with minimal staff..
.
.
Key Features.
- Compact, mobile design: Requires only a small footprint and can be quickly connected to various production machines..
- Automatic banding: Optional, robust impulse sealing system for secure and clean banding of stacks..
- Intuitive operation: Clear touch display and user-friendly interface for quick setup and operation by a single person..
- Flexible delivery: Stacks can be banded or delivered loose; the desired quantity is freely selectable..
- Efficient waste control: Automatic ejection of defective products, production stop if too many defective copies occur in succession..
- Large buffer table: Gives the operator sufficient time for quality control and packaging of stacks..
- Seamless integration: Especially suitable for connection to the Horizon iCE StitchLiner Mark IV, but also universally usable for other machines—no additional interface required..
- Industry 4.0-capable: Operational data acquisition and dynamic separation of book blocks of different sizes possible (DSP platform)..
.
.
Technical Specifications.
- Infeed format: 4-page sheets, variable from 650 to 1,000 mm.
- Product thickness (max.): 100 mm (optional 120 mm).
- Format (max.): 510 x 235 mm.
- Format (min.): 140 x 95 mm (optional 95 x 75 mm).
- Performance: up to 600 packs/cycles per hour.

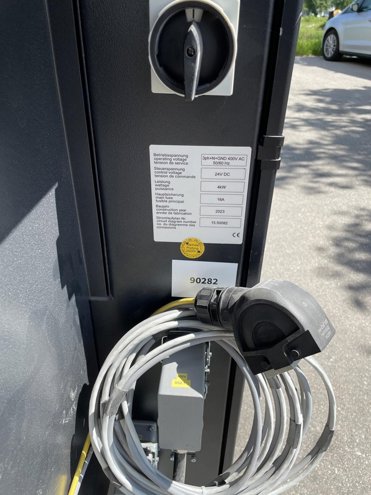

- Main connection: 3ph+N+GND 400V AC, 50/60 Hz.
- Control voltage: 24V DC.
- Power: 4 kW.
- Fuse: 16A.
- Year of manufacture: 2023.
- Weight: approx. 500 kg...
The Palamides Gamma 502ho is a high-performance automatic delivery and banding machine designed for efficient post-processing of print products such as brochures, flyers, greeting cards, and mailings. As a folding machine companion, it excels in streamlining production workflows by automating stack delivery and optional banding, making it ideal for integration with folding machines, saddle stitchers, collators, or mailing lines. Key benefits include its compact and mobile design, intuitive touchscreen operation, flexible delivery options, and seamless integration with industry-standard equipment like the Horizon iCE StitchLiner Mark IV. The Gamma 502ho enhances productivity, reduces operational costs, and enables high-volume production with minimal staffing, making it a versatile solution for modern print finishing operations.
Key Technical Aspects:
Dimensions and Specifications : The Palamides Gamma 502ho features a compact design with a weight of approximately 500 kg. It operates on a 3-phase power supply (3ph+N+GND 400V AC, 50/60 Hz) with a 4 kW power rating and a 16A fuse. The machine achieves a performance of up to 600 packs/cycles per hour and is equipped with a 24V DC control voltage. Manufactured in 2023, it supports Industry 4.0 capabilities, including operational data acquisition and dynamic separation of book blocks.
Paper Handling : The Gamma 502ho accommodates a wide range of product sizes, with a maximum format of 510 x 235 mm and a minimum format of 140 x 95 mm (optional 95 x 75 mm). It handles 4-page sheets with a variable infeed length from 650 to 1,000 mm and supports a maximum product thickness of 100 mm (optional 120 mm). The machine includes a large buffer table for quality control and automatic ejection of defective products, ensuring efficient waste management.
| Model | Palamides-Gamma 502ho |
|---|---|
| Reference Number | 70251 |
| Manufacturer | Palamides |
| Year | 2023 |
| Machine Availability | Immediately |
| Machine Condition | In Stock |
| Price | On Request |
| Location | Im Seelein 8, 97332 Volkach, Germany |
